Ford NAA Tractor Specs (1953-1954)

Ford NAA tractor specs for 1953-1954: 134 ci engine, 2000 rated rpm, transmission 540 PTO, Category I hitch, 11-gal fuel tank, and 2550-lb weight.

Ford NAA Overview

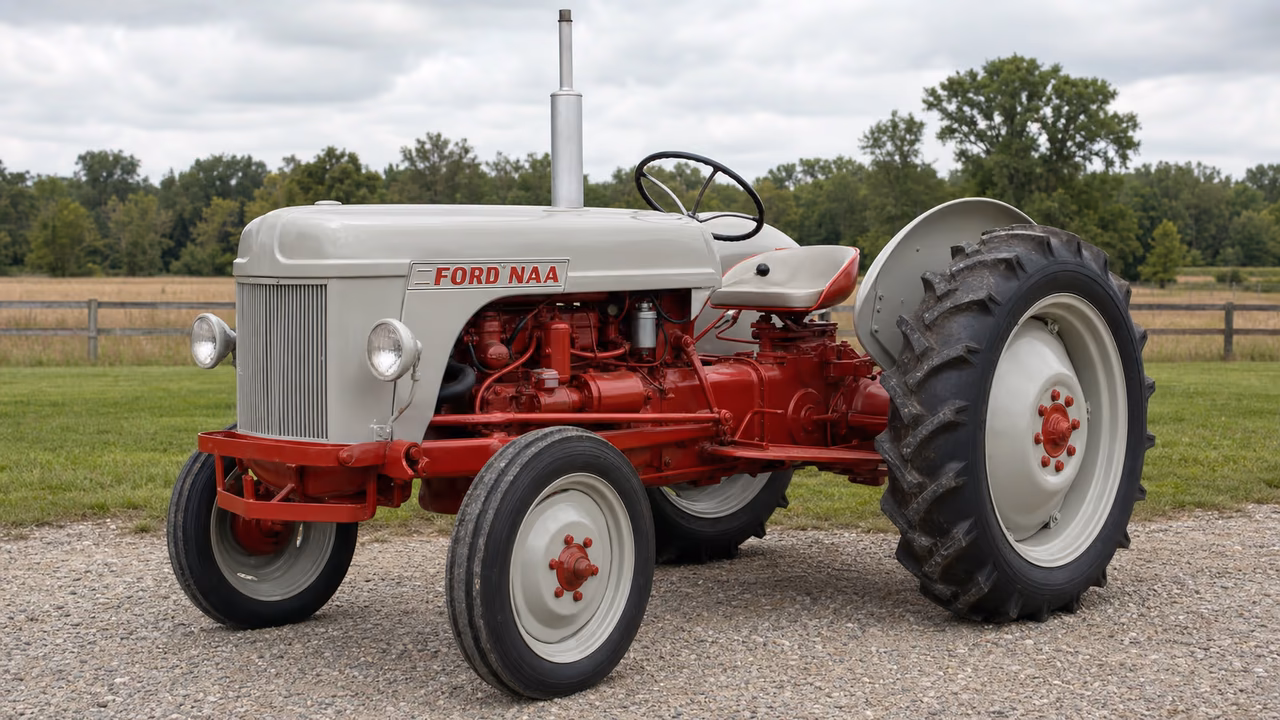

Ford NAA tractor in a rural farm setting.

Built from 1953 through 1954, the Ford NAA uses a 134 ci (2.2 L) engine rated at 2000 rpm and listed at 110 lb-ft of torque at 1400 rpm. It has a transmission-driven 540 PTO and a Category I rear hitch with 800-lb listed lift. Fuel capacity is 11 gal, and listed weight spans 2,550 to 2,814 pounds. The electrical system is 6 volts with positive ground.

Years1953-1954
Engine134 ci 2.2 L
Rear PTO540 (1.125)
Weight2550 to 2814 pounds

Ford NAA Quick Answers

  • Production years1953-1954
  • Engine134 ci (2.2 L), 2000 rated rpm
  • Rear PTOTransmission-driven 540 PTO
  • Fuel capacity11 gal (41.6 L)

Engine and Power

The 134 ci engine is rated at 2000 rpm and listed at 110 lb-ft of torque at 1400 rpm.

Gasoline engine

Displacement134 ci 2.2 L
Rated Rpm2000
Torque110 lb-ft 149.2 Nm
Torque Rpm1400

Manufacture years

1953-1954

PTO and Hitch

The rear PTO is transmission-driven and listed as 540 (1.125), reached at 545 engine rpm.

Rear PTO

transmission

Rear PTO type

540 (1.125)

Engine RPM

545@1500

Rear hitch

I

Rear lift

800 lbs 362 kg

Hydraulics

The rear hitch is Category I with 800-lb listed lift, and hydraulic capacity is listed at 2 gal.

Capacity

2 gal 7.6 L

Fluids, Battery, and Service Facts

Listed service capacities include 5 qts of engine oil, 11 gal of fuel, and 2 gal for the hydraulic system.

Fuel tank

11 gal 41.6 L

Engine oil capacity

5 qts 4.7 L

Hydraulic system

2 gal 7.6 L

Battery volts

6
Ford 2000Ford 4000Ford 741Ford 771

Accuracy Note

Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
