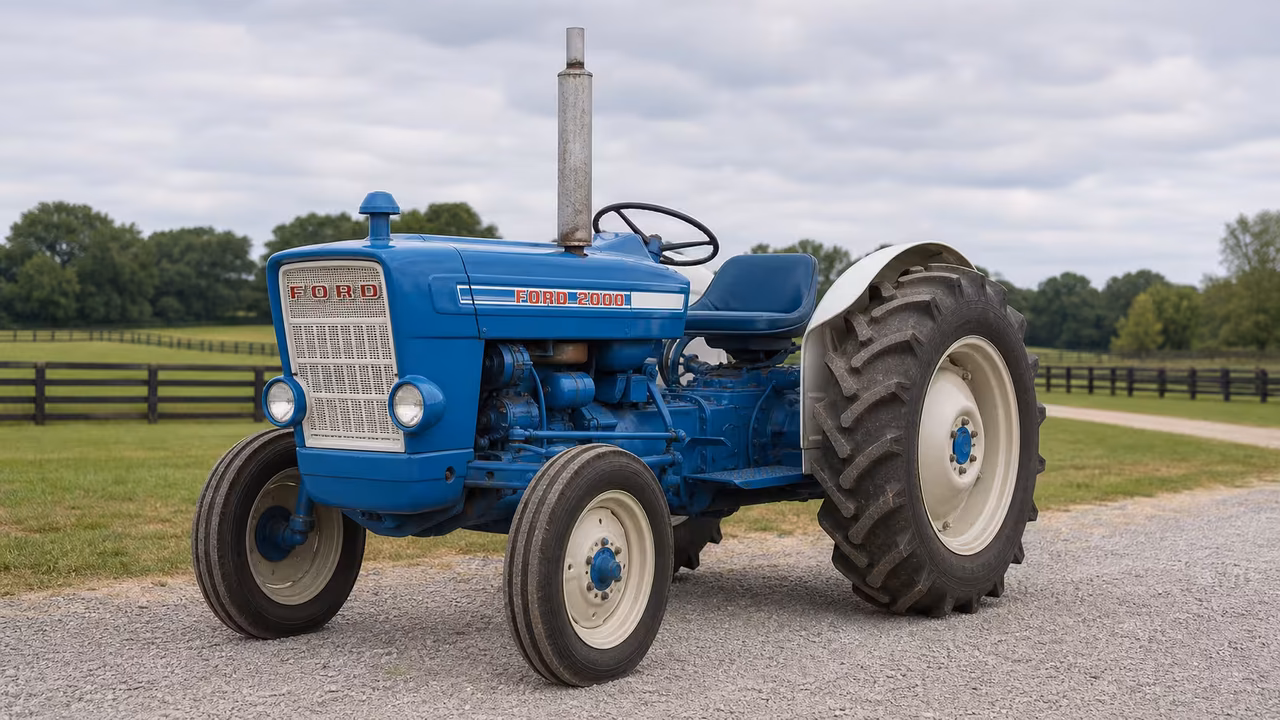

Ford 2000 Overview
The Ford 2000 name covers more than one configuration, so the first job is identifying the tractor in front of you. Gas and diesel versions, later model changes, and industrial or all-purpose coverage can overlap in manuals and parts books.
Use serial range, engine type, transmission, PTO, and hydraulic setup before treating any one Ford 2000 source as universal. The operator manuals, shop manuals, parts catalogs, and Nebraska data here are meant to narrow that down before you buy parts or start service.
Ford 2000 Quick Answers
- Production yearsThe Ford 2000 was produced from 1962 through 1975.
- PowerPublished specs list gross engine power by fuel type: 48.4 hp for the gasoline engine and 42.7 hp for the diesel engine, respectively; claimed implement figures are 31 PTO hp and 28 drawbar hp.
- Engine optionsGasoline rows use a 134 cu in four-cylinder engine, while diesel rows use a 144 cu in four-cylinder engine.
- PTO and hitchRear PTO at 540 rpm; Category I rear hitch.
- Service capacityEngine oil capacity 5 qts; transmission oil capacity varies (6, 8, or 11 qts); hydraulic system 2 gal; coolant 15 qts.
Engine and Power
Ford 2000 engine rows split between 134 cu in (2.2 L) gasoline and 144 cu in (2.4 L) diesel four-cylinder engines. Gross engine power is listed separately at 48.4 hp for the gasoline engine and 42.7 hp for the diesel engine, so match the fuel type before comparing power or tune-up data.
Gasoline engine
Ford / gasoline / 4-cylinder / liquid-cooled
| Displacement | 134 ci 2.2 L |
|---|---|
| Bore Stroke | 3.4375x3.60 inches 87 x 91 mm |
| Power Gross | 48.4 hp 36.1 kW |
| Air Cleaner | oil bath |
| Compression | 7.5:1 |
| Rated Rpm | 2200 |
| Torque | 121.6 lb-ft 164.9 Nm |
| Torque Rpm | 1600 |
| Firing Order | 1-2-4-3 |
| Starter | electric |
| Starter Volts | 6 |
| Engine Oil Capacity | 5 qts 4.7 L |
| Coolant Capacity | 15 qts 14.2 L |
Diesel engine
Ford / diesel / 4-cylinder / liquid-cooled
| Displacement | 144 ci 2.4 L |
|---|---|
| Bore Stroke | 3.56x3.60 inches 90 x 91 mm |
| Power Gross | 42.7 hp 31.8 kW |
| Air Cleaner | oil bath |
| Rated Rpm | 2200 |
| Torque | 111.3 lb-ft 150.9 Nm |
| Torque Rpm | 1400 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 5 qts 4.7 L |
| Coolant Capacity | 15 qts 14.2 L |
Manufacturer
Manufacture years
Transmission
Transmission options span traditional gear configurations and the full-power-shift/automatic-style ranges: 4 forward and 1 reverse; 5 forward and 1 reverse; 10 forward and 2 reverse (Select-O-Speed); and 12 forward and 3 reverse (Over-Under). Clutch diameters and oil-capacities vary by variant.
4-speed gear
| Type | gear |
|---|---|
| Gears | 4 forward and 1 reverse |
| Clutch | 254mm dry disc |
| Transmission Oil Capacity | 6 qts 5.7 L |
5-speed gear
| Type | gear |
|---|---|
| Gears | 5 forward and 1 reverse |
| Clutch | 228.6mm dry discs |
| Transmission Oil Capacity | 8 qts 7.6 L |
Select-O-Speed
| Name | Select-O-Speed |
|---|---|
| Type | full power shift |
| Gears | 10 forward and 2 reverse |
| Transmission Oil Capacity | 11 qts 10.4 L |
Over-Under
| Name | Over-Under |
|---|---|
| Type | gear |
| Gears | 12 forward and 3 reverse |
PTO and Hitch
Rear power take-off is a 540 rpm arrangement, paired with a Category I hitch configuration in many Ford 2000 builds. These outputs should be matched to implement requirements and lift capacities.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Open-center hydraulics provide 2000 psi system pressure with a 4.0 gpm pump flow and two remote valves. Hydraulic capacity is 2 gallons, a setup compatible with a range of loaders and implements depending on configuration.
Type
Capacity
Pressure
Pump flow
Valves
Fluids, Battery, and Service Facts
Maintenance references list engine oil capacity at 5 qts, coolant at 15 qts, hydraulic capacity at 2 gal, and transmission oil options of 6, 8, or 11 qts depending on variant. Battery voltage is 6V on these models; fluid types and part numbers vary by engine and transmission setup.
Fuel tank
Hydraulic system
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
Ag rear
- 12.4-28
- 13.6-28
Electrical
Electrical rows are included when documented.
Ground
Charging system
Battery volts
Serial Number Lookup
Serial numbers help narrow model year and variant; factory prefixes and regional builds are documented, but require source-backed confirmation before applying year breaks.
1962
1963
1964
Manuals and Documents
Use these links to check the operator manual, service manual, parts catalog, or test report that matches the tractor's serial range and equipment.
When a source covers more than one model or variant, confirm the fuel type, transmission, PTO setup, and serial range before using it for parts or service.
Manual
- Ford 2000 | 4000 Industrial Tractor Operators Manualoperation, maintenance, lubrication, safety notes, specifications
Operator manual for Series 2000/4000 Industrial tractors; includes pre-start checks, operation, maintenance, lubrication, PTO, belt pulley, and wheel adjustment.
Open source - Ford 2000 and 4000 Series All Purpose Tractor - Operator's Manualoperation, maintenance, safety notes, specifications
Operator's manual for Ford 2000/4000 All Purpose tractors; 80 pages; sections include Safety, Tractor Model/Serial, Controls, Operation, Maintenance, Specifications.
Open source
Parts catalog
- Ford 2000 Parts Manual FO-P-2,3,4000parts matching
Parts manual with exploded views and part numbers for Ford 2000 series (FO-P-2,3,4000); described as a reprint of the original factory manual; used for parts ordering.
Open source
Service manual
- Ford 2000, 3000, 4000, 5000 Service Manualoperation, maintenance
Service (shop) manual covering Ford 2000/3000/4000/5000 series; includes engine, fuel, electrical, clutch, transmission, PTO, hydraulics, and workshops procedures.
Open source
Shop manual
- Ford 2000/3000/4000 Shop Manual (Verkstadshandbok) — Ford 2000/3000/4000operation, maintenance
Shop/manual for Ford 2000/3000/4000 (and related models); Swedish Verkstadshandbok listing; file name ford_2000-3000-4000_verkstadshandbok_sec_wat.pdf; indicates availability and s
Open source - Ford 3000/2000/4000 Parts Catalog (DTP Ford 3000) — Discount Tractor Partsparts matching
Parts catalog for Ford 3000/2000-series tractors; exploded parts views and part numbers; includes accessory and maintenance parts listings.
Open source
Tractor test report
- Test 844: Ford 2000 Super Dexta Dieseltested performance
Nebraska Tractor Test Lab report for the Ford 2000 Super Dexta Diesel variant; includes engine details, PTO testing, and ballast-effect data.
Open source
Parts Checks Before Ordering
Do not order Ford 2000 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, PTO setup, and build year before choosing service parts.
Filters, fluids, belts, electrical parts, clutch and PTO parts, and hydraulic parts can vary by setup. Exact part numbers need a parts catalog, manual, or trusted supplier source before they become recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
