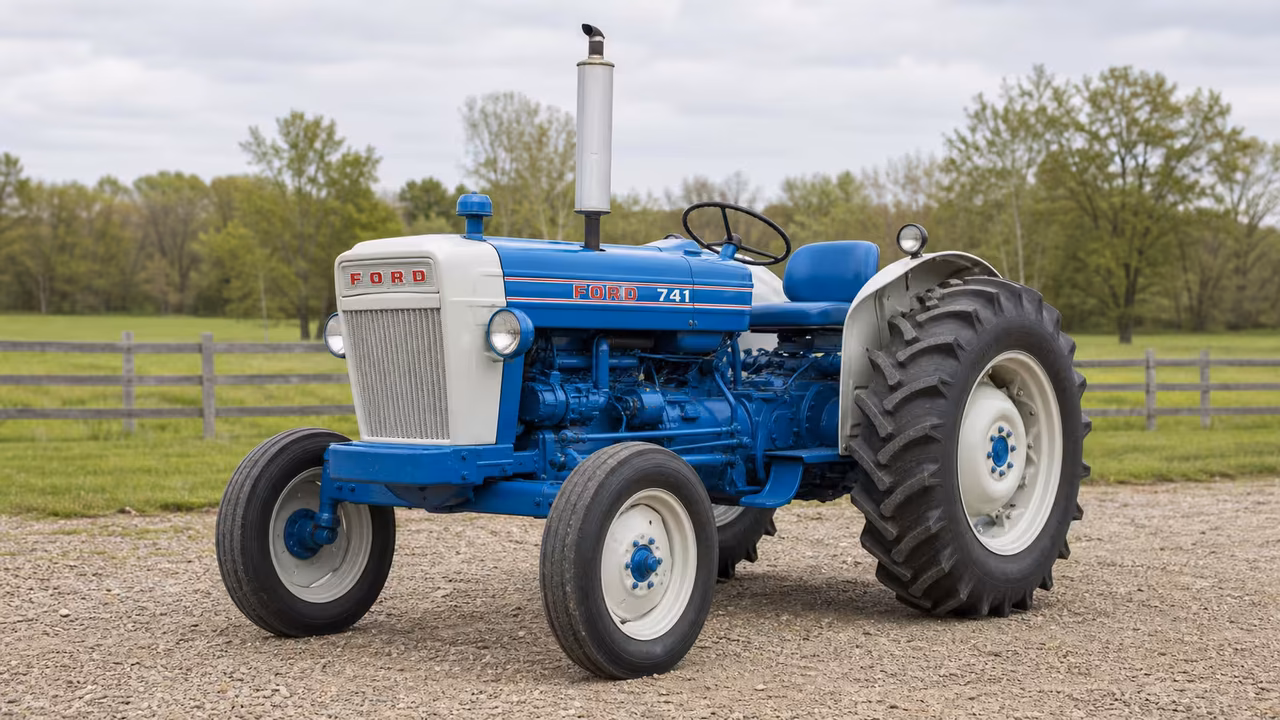

Ford 741 Overview
The Ford 741 was built from 1958 through 1962. Published specifications list more than one engine displacement—134 cu in (2.2 L) and 144 cu in (2.4 L)—alongside a four-forward, one-reverse unsynchronized gearbox. That is useful starting information, but an individual tractor's engine, fuel system, electrical setup, and parts book still need to match before service work begins.
The 741 has a transmission-driven 540-rpm rear PTO, open-center hydraulics, and a Category I rear hitch. Because the PTO is transmission-driven, it does not operate independently of the driveline; confirm the actual controls and equipment before pairing an implement or troubleshooting PTO operation.
The manual routes below distinguish the 741 operator-manual listing marked for gas tractors from broader service and parts listings. Start with the serial number and engine or fuel type rather than assuming every 741 uses the same procedure.
Ford 741 Quick Answers
- When was the Ford 741 built?The Ford 741 is listed from 1958 through 1962. Use the serial-number row and the tractor's full identification tag to narrow down an individual machine.
- What engine is in a Ford 741?Published Ford 741 engine records list 134 cu in (2.2 L) and 144 cu in (2.4 L) engines. Verify the engine and fuel type on the tractor before choosing parts, ignition settings, or operator literature.
- What transmission does the Ford 741 use?The published 741 transmission is an unsynchronized gear unit with four forward speeds and one reverse, using a 254 mm dry-disc clutch.
- Does the Ford 741 have live PTO?The 741 is listed with a transmission-driven rear PTO at 540 rpm with a 1.375-inch shaft. It is not listed as an independent PTO, so PTO behavior follows the driveline arrangement.
- What fluid capacities are listed?Published records list 13 gal (49.2 L) of fuel, 4 gal (15.1 L) for the hydraulic system, 5 qt (4.7 L) of engine oil, and 15 qt (14.2 L) of coolant. Use matching operator literature for grades, intervals, and fill procedures.
- Which manuals should a Ford 741 owner use?The linked 741 operator-manual listing is marked for gas tractors. The service and parts listings cover gas, LP, and diesel applications, but the serial number and engine or fuel type still decide the correct literature.
Engine and Power
Published Ford 741 records list 134 cu in (2.2 L) and 144 cu in (2.4 L) engine options. Confirm the engine and fuel type on the tractor before treating an engine specification or manual as a direct match.
Gasoline engine
| Displacement | 134 ci 2.2 L |
|---|---|
| Compression | 7.5:1 |
| Rated Rpm | 2200 |
| Torque | 126.8 lb-ft 171.9 Nm |
| Torque Rpm | 1600 |
LP-gas engine
| Displacement | 134 ci 2.2 L |
|---|---|
| Rated Rpm | 2200 |
Diesel engine
| Displacement | 144 ci 2.4 L |
|---|---|
| Rated Rpm | 2200 |
Manufacturer
Manufacture years
Transmission
The Ford 741 transmission is listed as an unsynchronized four-forward, one-reverse gear unit with a 254 mm dry-disc clutch. Match the actual tractor before ordering clutch or transmission parts.
Ford
| Name | Ford |
|---|---|
| Type | unsynchronized gear |
| Gears | 4 forward and 1 reverse |
| Clutch | 254mm dry disc |
PTO and Hitch
The rear PTO is listed as transmission-driven at 540 rpm with a 1.375-inch shaft. Confirm the installed PTO equipment and driveline behavior before implement setup or diagnosis.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Published data lists an open-center hydraulic system with a 4 gal (15.1 L) capacity. A capacity is not a service procedure; use configuration-matched literature for oil type, fill level, and adjustments.
Type
Capacity
Fluids, Battery, and Service Facts
Published capacities include 13 gal (49.2 L) of fuel, 5 qt (4.7 L) of engine oil, and 15 qt (14.2 L) of coolant. The operator-manual listing is marked for gas tractors, so do not apply it to another fuel type without confirming coverage.
Fuel tank
Engine oil capacity
Hydraulic system
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Serial Number Lookup
Serial rows are shown where documented.
1957
1958
1959
1960
1961
1962
Manuals and Documents
The Ford 741 operator-manual listing is a 74-page reproduction marked for gas tractors. The linked service and parts-manual listings are broader, covering gas, LP, and diesel applications. They are research routes, not a substitute for matching the tractor's serial number and configuration.
For any repair or order, record the serial number, engine or fuel type, transmission, PTO setup, and installed options before relying on a manual or parts illustration.
Operator manual
- Ford 741 operator manualoperation, maintenance, and specifications
Commercial 74-page operator-manual listing marked for gas tractors. Confirm engine and fuel type before use.
View operator manual
Service manual
- Ford 741 service manualoperation, maintenance, and specifications
Commercial 500-page service-manual listing for stated gas, LP, and diesel applications. Match the tractor before use.
View service manual
Parts catalog
- Ford 741 parts manualparts matching
Commercial 858-page parts-manual listing for stated gas, LP, and diesel applications. Verify fitment before ordering.
View parts manual
Parts Checks Before Ordering
Start with the tractor's serial number, then identify the engine or fuel type, clutch, PTO arrangement, and hydraulic equipment. The operator-manual listing is gas-specific while the other listings have broader stated applications.
A parts catalog helps identify assemblies and reference numbers, but it does not prove fitment for a particular 741. Confirm the tag and the actual tractor before ordering.
- Ford 741 parts manualCommercial 858-page parts-manual listing for gas, LP, and diesel applications. Verify the serial number and engine before ordering.View parts manual
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
