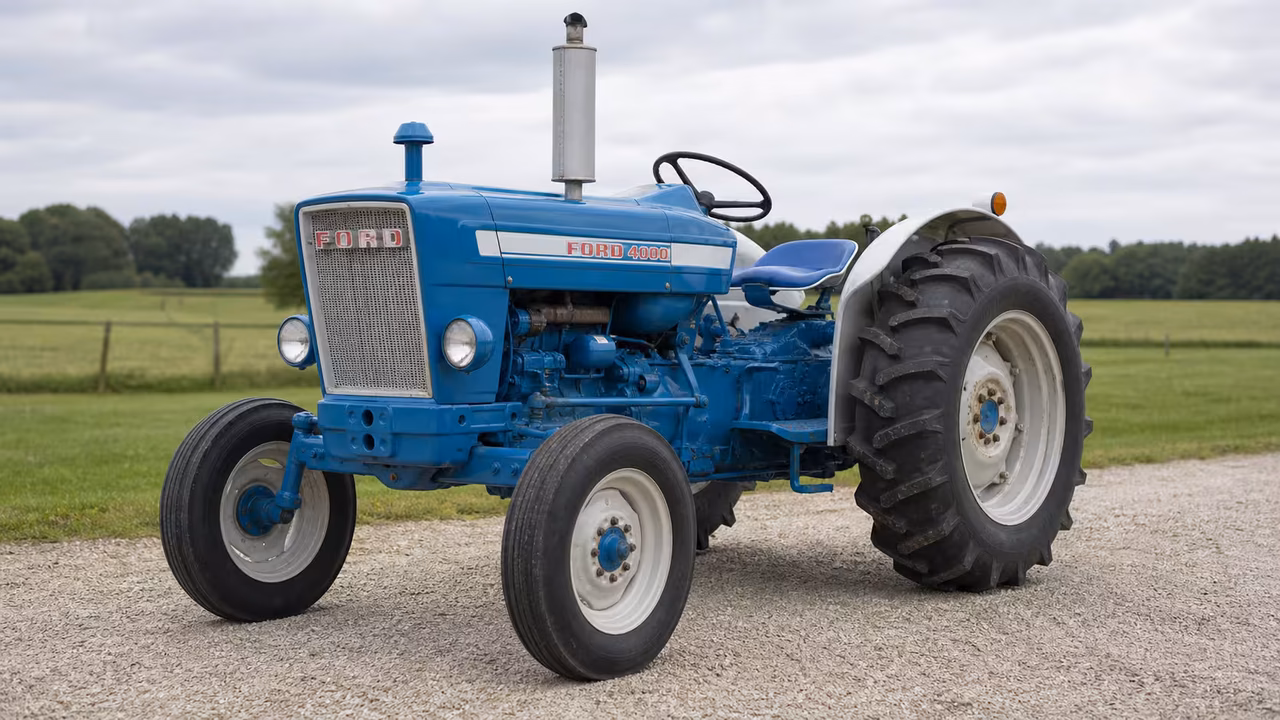

Ford 4000 Overview
The Ford 4000 name covers several configurations across the 1962-1975 production span, so a useful lookup starts with the actual model code and serial range. Engine, transmission, PTO, and hydraulic details can change enough to affect parts and service decisions.
Use the manuals and parts catalogs as the cross-check, not the model name alone. The spec table is enough for a quick read; the documents are where you confirm controls, lubrication, implement fit, and which parts source applies.
Ford 4000 Quick Answers
- Production yearsThe Ford 4000 was produced from 1962 through 1975.
- PowerEngine power varies by configuration: gasoline LP-gas and diesel options show 62.5 hp gross (gasoline) or 56.3 hp gross (diesel); PTO and drawbar figures depend on setup.
- EngineThe Ford 4000 engine displacement is 172 ci (2.8 L).
- PTO and hitchRear PTO at 540 rpm and a Category I/II rear hitch.
- Service capacityEngine oil 5 qts, transmission oil 6.5 qts (and 8 qts for some configs), coolant 14 qts.
Engine and Power
Engine options center on a 172 ci (2.8 L) displacement four-cylinder, with gasoline, diesel, and LP-gas variants. The gasoline and LP-gas versions share basic bore/stroke, while the diesel uses higher compression and different power characteristics. Confirm the exact engine variant from the serial/build code when sourcing parts or servicing.
Gasoline engine
Ford / gasoline / 4-cylinder / liquid-cooled
| Displacement | 172 ci 2.8 L |
|---|---|
| Bore Stroke | 3.90x3.60 inches 99 x 91 mm |
| Power Gross | 62.5 hp 46.6 kW |
| Air Cleaner | oil bath |
| Compression | 7.5:1 |
| Rated Rpm | 2200 |
| Torque | 158 lb-ft 214.2 Nm |
| Torque Rpm | 1600 |
| Firing Order | 1-2-4-3 |
| Starter | electric |
| Starter Volts | 6 |
| Engine Oil Capacity | 5 qts 4.7 L |
| Coolant Capacity | 14 qts 13.2 L |
Diesel engine
Ford / diesel / 4-cylinder / liquid-cooled
| Displacement | 172 ci 2.8 L |
|---|---|
| Bore Stroke | 3.90x3.60 inches 99 x 91 mm |
| Power Gross | 56.3 hp 42.0 kW |
| Compression | 16.8:1 |
| Rated Rpm | 2000 |
| Torque | 140.4 lb-ft 190.4 Nm |
| Torque Rpm | 1400 |
| Firing Order | 1-2-4-3 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 5 qts 4.7 L |
LP-gas engine
Ford / LP gas / 4-cylinder / liquid-cooled
| Displacement | 172 ci 2.8 L |
|---|---|
| Bore Stroke | 3.90x3.60 inches 99 x 91 mm |
| Compression | 8.65:1 |
| Rated Rpm | 2200 |
| Firing Order | 1-2-4-3 |
Manufacturer
Manufacture years
Transmission
Core transmissions include 4-speed gear, 5-speed gear, the 10-speed Ford Select-O-Speed, and the 12-speed Over-Under. Clutch types and oil capacities vary by option, so verify the exact configuration for parts and service.
4-speed gear
| Type | gear |
|---|---|
| Gears | 4 forward and 1 reverse |
| Clutch | 254mm dry disc |
| Transmission Oil Capacity | 6.5 qts 6.2 L |
Ford Select-O-Speed
| Name | Ford Select-O-Speed |
|---|---|
| Type | full power shift |
| Gears | 10 forward and 2 reverse |
5-speed gear
| Type | gear |
|---|---|
| Gears | 5 forward and 1 reverse |
| Clutch | double 228.6mm dry discs |
| Transmission Oil Capacity | 8 qts 7.6 L |
Over-Under
| Name | Over-Under |
|---|---|
| Gears | 12 forward and 3 reverse |
PTO and Hitch
Rear PTO is configured for Ford 4000 models with a rear linkage and a Category I/II hitch. Check the tractor’s specific setup when matching implements or ordering parts.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Open-center hydraulics with a pump flow around 5.4 gpm supports a range of implements; remote valve and hitch configurations influence actual lift and responsiveness.
Type
Pump flow
Fluids, Battery, and Service Facts
Maintenance figures include engine oil capacity of 5 qts, transmission oil capacity of 6.5 qts (and 8 qts on some variants), and coolant capacity of 14 qts. Exact oil filters, belts, and battery considerations depend on model code and year-specific manuals.
Fuel tank
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.
Wheelbase
Weight
Length
Front tire
Rear tire
Ag front
- 6.00x16
- 7.50-16
Ag rear
- 13.6x28
- 14.9-24
Electrical
Electrical rows are included when documented.
Charging system
Serial Number Lookup
Serial ranges help identify production era and configuration. Factory prefixes and regional builds are documented in the evidence context; serials map to specific years and variants when supported by the manual or test data.
1962
1963
1964
Manuals and Documents
Use these links to check the operator manual, service manual, parts catalog, or test report that matches the tractor's serial range and equipment.
When a source covers more than one model or variant, confirm the fuel type, transmission, PTO setup, and serial range before using it for parts or service.
- Ford 2000, 3000, 4000, 5000 Tractor Operator’s Manual (All Purpose & LCG)Operator’s manual for Ford 2000–5000 series including 4000 (All-Purpose & LCG)Open source
- Ford 4000 manual116-page Ford 4000 manual; Danish repositoryOpen source
- Ford 4000 user manual - Manuals.co.ukUK listing of Ford 4000 user manual; 116 pagesOpen source
- Ford 4000 Tractor Service Repair Shop Manual Workshop 1965-1975Complete service repair workshop manual covering Ford 2000/3000/4000/4500/5000 tractors (1965-1975)Open source
- FORD 4000 Parts CatalogueFord 4000 parts catalog; components and assembliesOpen source
- Test 893: Ford 4000 8-Speed (Diesel)Nebraska Tractor Test Report for Ford 4000 with 8-Speed (Diesel); 1965Open source
- Ford Tractor Model Information Version 3Model codes, production years and engine/transmission references for Ford 2000/4000/6000 seriesOpen source
Parts Checks Before Ordering
Do not order Ford 4000 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, and PTO setup before choosing service parts.
Filters, fluids, belts, electrical parts, clutch and PTO parts, and hydraulic parts can vary by setup. Exact part numbers need a parts catalog, manual, or trusted supplier source before they become recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
