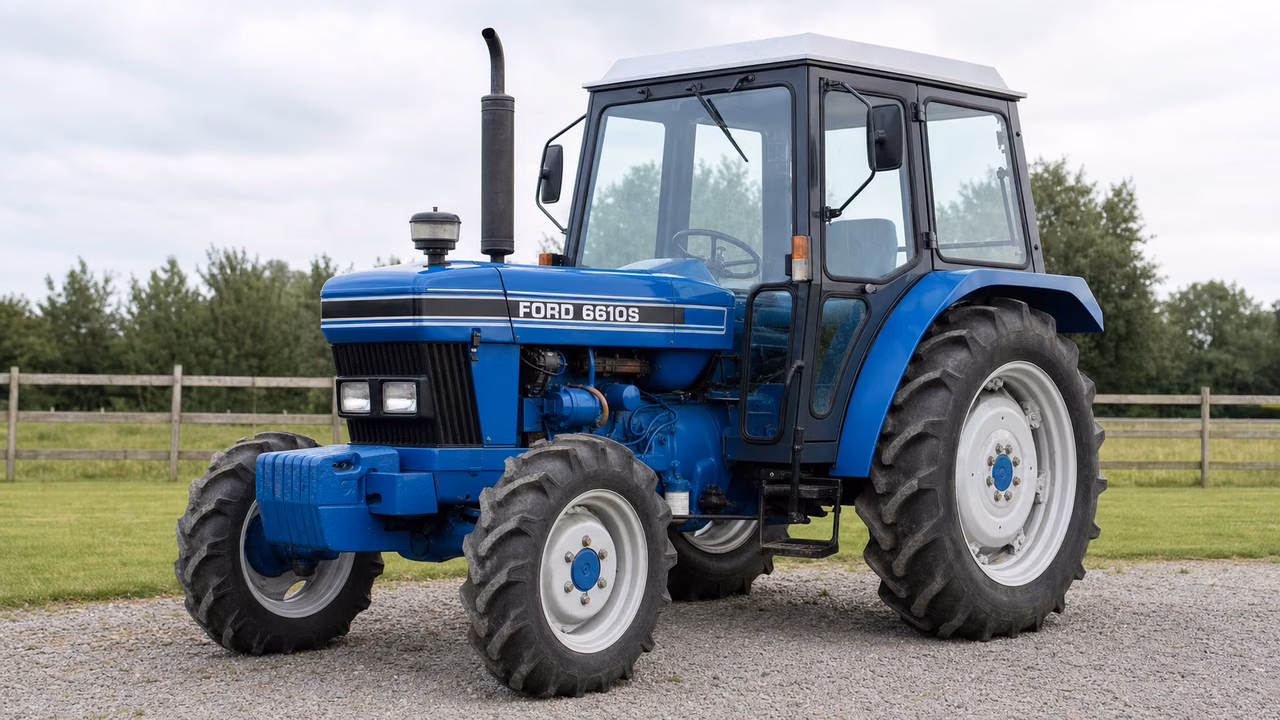

Ford 6610S Overview
The Ford 6610S was produced from 1994 to 2003. Its 304 ci (5.0 L) engine is listed at 85 hp (63.4 kW) and 2,200 rpm. The tractor has an 8 forward and 2 reverse unsynchronized gear transmission, independent 540 PTO, and Type II hitch with 4,040 lb lift. Reference figures also list 21.5 gal (81.4 L) of fuel, 5,695 to 6,335 lb weight, and a gear-pump hydraulic system rated at 2,500 psi with 9.7 gpm pump flow.
Ford 6610S Quick Answers
- YearsFord produced the 6610S from 1994 through 2003.
- EngineIts 304 ci (5.0 L) engine is listed at 85 hp and 2,200 rpm.
- TransmissionIt has 8 forward and 2 reverse unsynchronized gears.
- PTOThe rear PTO is independent and listed at 540.
Engine and Power
The 304 ci (5.0 L) engine is listed at 85 hp and 2,200 rpm.
Diesel engine
| Displacement | 304 ci 5.0 L |
|---|---|
| Rated Rpm | 2200 |
| Engine Oil Capacity | 12 qts 11.4 L |
| Coolant Capacity | 13.75 qts 13.0 L |
Manufacturer
Manufacture years
Engine
Transmission
The transmission is listed as unsynchronized gear with 8 forward and 2 reverse speeds.
8-speed unsynchronized gear
| Type | unsynchronized gear |
|---|---|
| Gears | 8 forward and 2 reverse |
PTO and Hitch
The independent rear PTO is listed at 540, with a Type II hitch and 4,040 lb lift.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The gear-pump hydraulic system is listed at 2,500 psi with 9.7 gpm pump flow.
Type
Pressure
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
