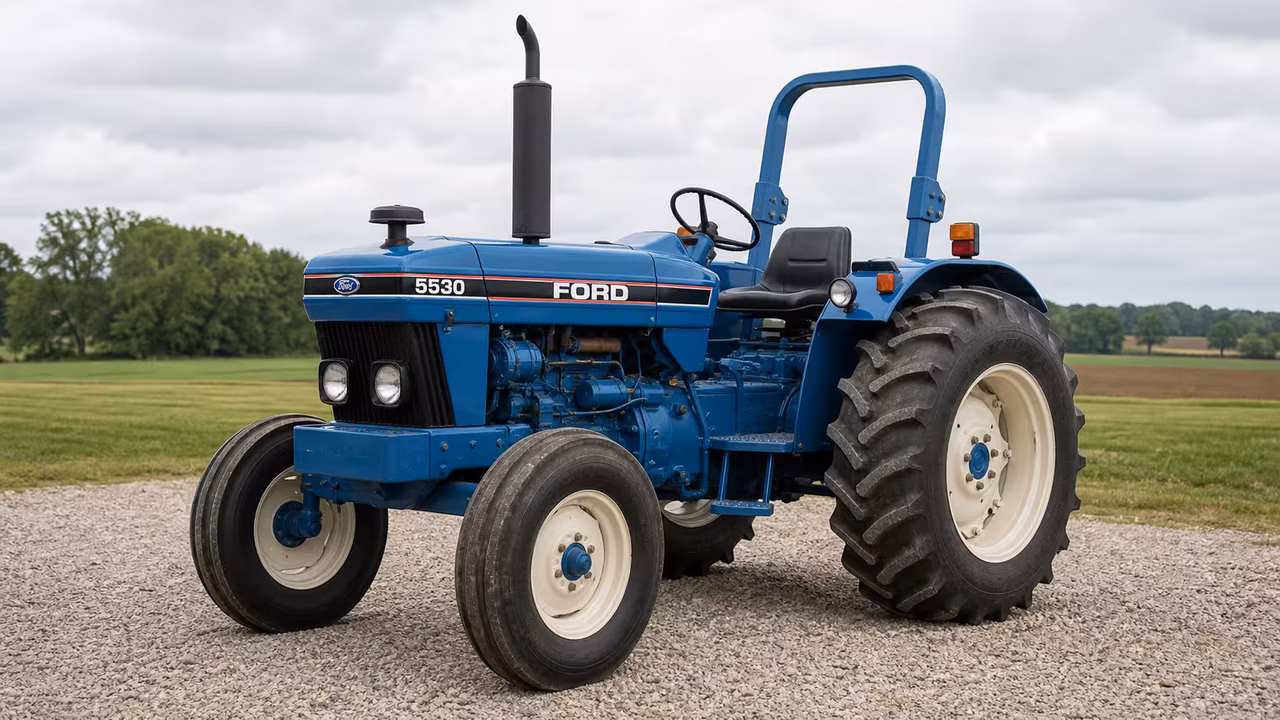

Ford 5530 Overview
The Ford 5530 is a Ford/New Holland high-clearance mudder produced 1992-1996. It uses a diesel engine and open-center hydraulics, pairing field-clearing ground clearance with a straightforward hydraulic and lift layout.
Manuals and OEM catalogs cited here add confidence for operation, lubrication, maintenance, and parts matching. Before ordering parts or performing service, verify the exact model code, serial range, and PTO/hydraulics configuration, as the variant data show differences by build year and serial range.
The documents and cards accompanying this reference help align your parts search and service decisions with the tractor’s actual configuration, ensuring you avoid cross-application parts and incorrect service steps.
Ford 5530 Quick Answers
- Production yearsThe Ford 5530 was produced from 1992 through 1996.
- PowerPublished power data includes 62 hp 46.2 kW. Match those figures to the documented engine and transmission setup before treating them as model-wide.
- EngineThe Ford 5530 engine displacement is 220 ci.
- PTO and hitchThe Ford 5530 has a 540/1000 rear PTO and a Category II rear hitch.
- Service capacityPublished capacity entry includes engine oil capacity is 12 qts.
Engine and Power
Engine and power: displacement is 220 ci with a diesel, electric starter, and a rated 2,500 RPM.
Diesel engine
Fiat 8045.06 / diesel / 4-cylinder / liquid-cooled
| Displacement | 220 ci 3.6 L |
|---|---|
| Bore Stroke | 3.937x4.527 inches 100 x 115 mm |
| Rated Rpm | 2500 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 12 qts 11.4 L |
Manufacturer
Manufacture years
Transmission
Two documented transmission options: a 12-speed partially synchronized layout (12 forward/12 reverse) and a 20-speed synchromesh setup (20 forward/12 reverse), with notes about creeper ranges in the variant data.
12-speed partially synchronized
| Type | partially synchronized |
|---|---|
| Gears | 12 forward and reverse |
20-speed synchromesh
| Type | synchromesh |
|---|---|
| Gears | 20 forward and 12 reverse |
PTO and Hitch
Rear PTO is independent, with 540/1000 speeds, paired with a Category II rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Hydraulic system is open-center with a 11 gpm pump flow; valve count ranges from 1 to 3 depending on configuration.
Type
Pump flow
Valves
Fluids, Battery, and Service Facts
Maintenance notes include an engine oil capacity of 12 qts. Battery and fluid specifics are variable by setup and require parts catalogs or manuals for exact figures.
Fuel tank
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Weight
Front tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Manuals and Documents
The documents below provide manual and parts context for the Ford 5530. They are useful for controls, service categories, and parts matching that do not fit into short spec rows.
Match coverage carefully before relying on a document for service decisions, especially when one manual or catalog covers several models, serial ranges, or tractor variants.
- New Holland 5530, 6530 High Clearance Tractors Operator ManualOperator manual for New Holland 5530/6530 High Clearance (Mudder) tractors; describes operation, lubrication, maintenance, specifications.Open source
- New Holland 5530 - 4 CYL HIGH CLEARANCE MUDDER TRACTOR (03/92 - 12/97) Parts DiagramsOEM parts diagrams for the 5530 Mudder/High Clearance, covering parts explosions and lift/implement linkage for 03/92-12/97.Open source
- Ford Tractor 5530 & 6530 High Clearance (Mudder) BrochureOriginal sales brochure for Ford/New Holland 5530/6530 High Clearance Mudder; covers model applicability.Open source
- Ford 5530 Tractor SpecificationsManufacturer-listed specs for Ford 5530 (high clearance mudder), including engine, transmission, hydraulics, and electrical data.Open source
Parts Checks Before Ordering
Do not order Ford 5530 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, PTO setup, and build year before choosing service parts.
Filters, fluids, belts, electrical parts, clutch and PTO parts, and hydraulic parts can vary by setup. Exact part numbers require a parts catalog, manual, or trusted supplier before they become recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
