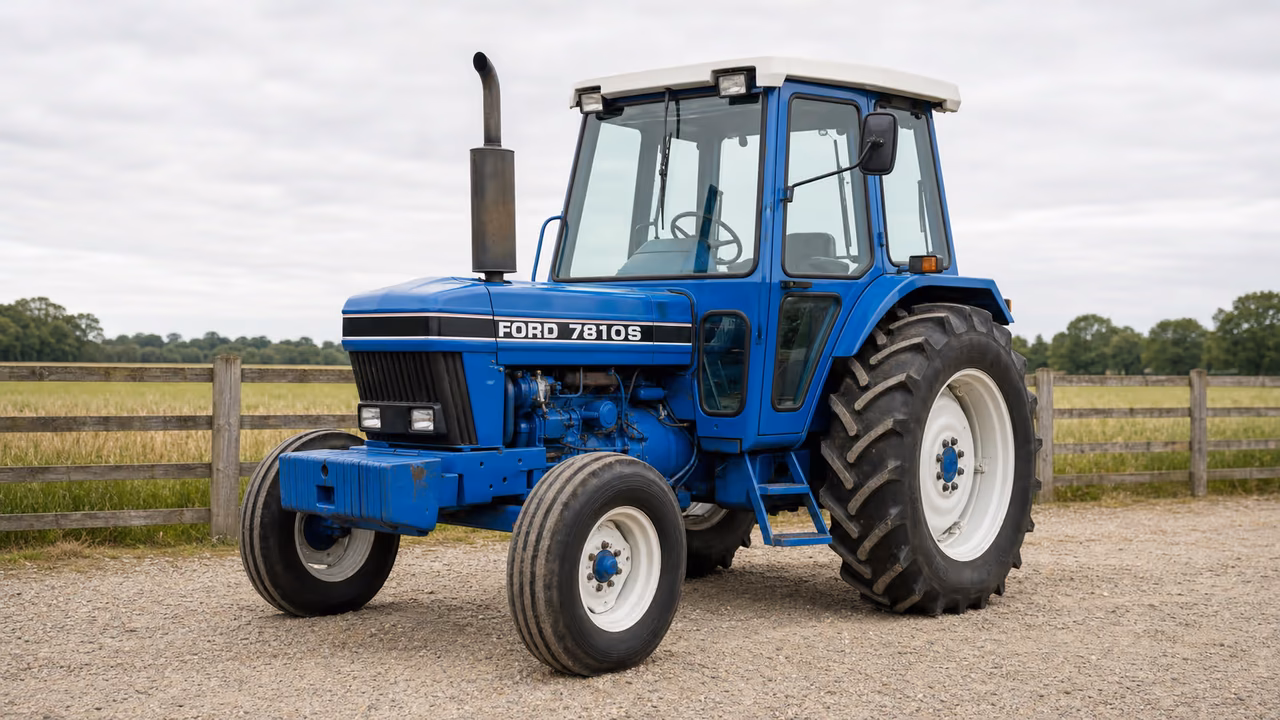

Ford 7810S Overview
The Ford 7810S was produced from 1994 through 1998. Its 401 ci (6.6 L) diesel engine is rated at 100 hp and 2100 rpm. An independent rear PTO, II hitch, and gear-pump hydraulic system rated at 2500 psi and 9.7 gpm are key working references. The fuel tank holds 21.5 gal, while listed weight ranges from 7721 to 8361 pounds. The serial number location is on the right-front upper portion of the transmission.
Ford 7810S Quick Answers
- YearsProduced from 1994 through 1998.
- Engine401 ci (6.6 L) diesel rated at 100 hp and 2100 rpm.
- HydraulicsGear pump with 2500 psi pressure and 9.7 gpm flow.
- Serial locationRight-front upper portion of the transmission.
Engine and Power
The 401 ci diesel engine is rated at 100 hp and 2100 rpm.
Diesel engine
| Displacement | 401 ci 6.6 L |
|---|---|
| Rated Rpm | 2100 |
Manufacture years
Engine
PTO and Hitch
The tractor has an independent rear PTO and a II rear hitch.
Rear PTO
Rear hitch
Hydraulics
Gear-pump hydraulics are rated at 2500 psi with 9.7 gpm pump flow.
Type
Pressure
Pump flow
Fluids, Battery, and Service Facts
The fuel tank capacity is 21.5 gal.
Fuel tank
Serial Number Lookup
The serial number is located on the right-front upper portion of the transmission.
location
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
