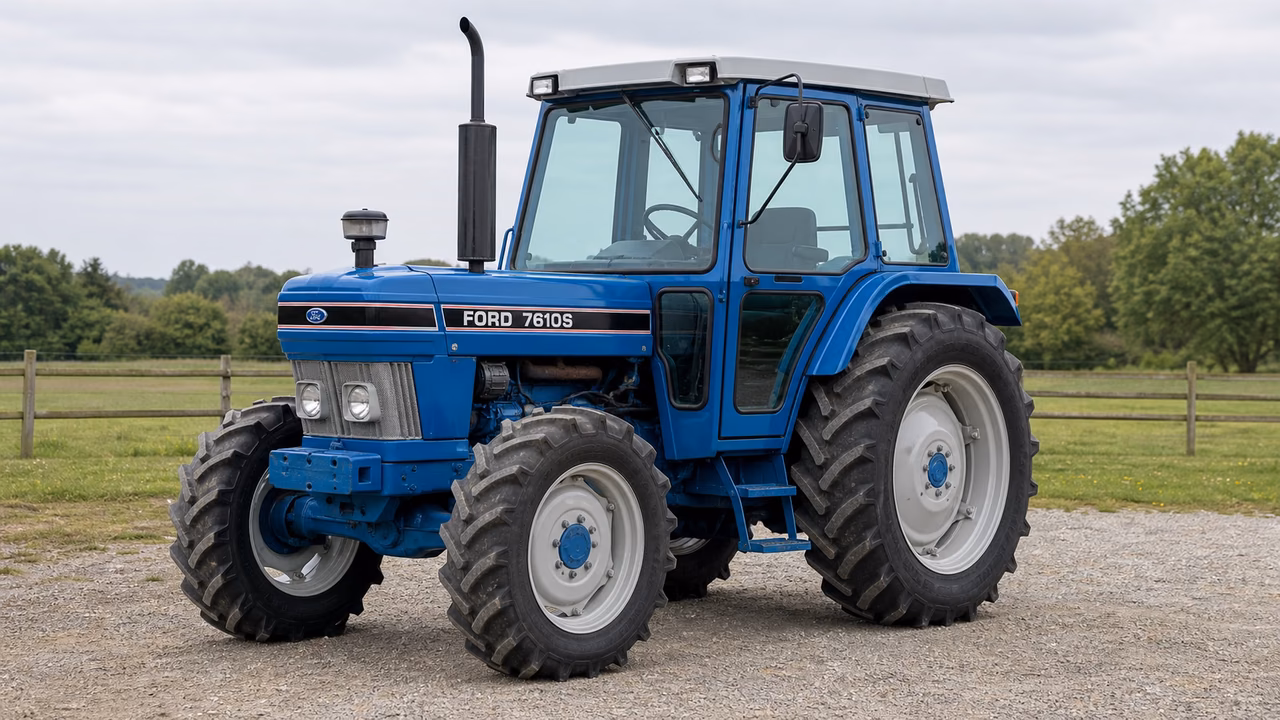

Ford 7610S Overview
The Ford 7610S was produced from 1994 to 2000 with a 304 ci (5.0 L) engine listed at 95 hp (70.8 kW) and 2,100 rpm. The tractor is listed with a Dual Power transmission, independent 540/1000 rear PTO, and Type II hitch with 4,040 lb lift. Owners comparing configurations can also use the 21.5 gal (81.4 L) fuel figure, 5,935 to 6,575 lb weight range, and gear-pump hydraulics rated at 2,500 psi with 9.7 gpm pump flow.
Ford 7610S Quick Answers
- YearsFord produced the 7610S from 1994 through 2000.
- EngineIts 304 ci (5.0 L) engine is listed at 95 hp and 2,100 rpm.
- TransmissionThe tractor is listed with a Dual Power transmission.
- PTOThe independent rear PTO is listed at 540/1000.
Engine and Power
The 304 ci (5.0 L) engine is listed at 95 hp and 2,100 rpm.
Diesel engine
| Displacement | 304 ci 5.0 L |
|---|---|
| Rated Rpm | 2100 |
| Engine Oil Capacity | 12 qts 11.4 L |
| Coolant Capacity | 13.75 qts 13.0 L |
Manufacturer
Manufacture years
Engine
Transmission
The Ford 7610S is listed with a Dual Power transmission.
Dual Power
| Name | Dual Power |
|---|
PTO and Hitch
The independent rear PTO is listed at 540/1000, with a Type II hitch and 4,040 lb lift.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The gear-pump hydraulic system is listed at 2,500 psi with 9.7 gpm pump flow.
Type
Pressure
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
