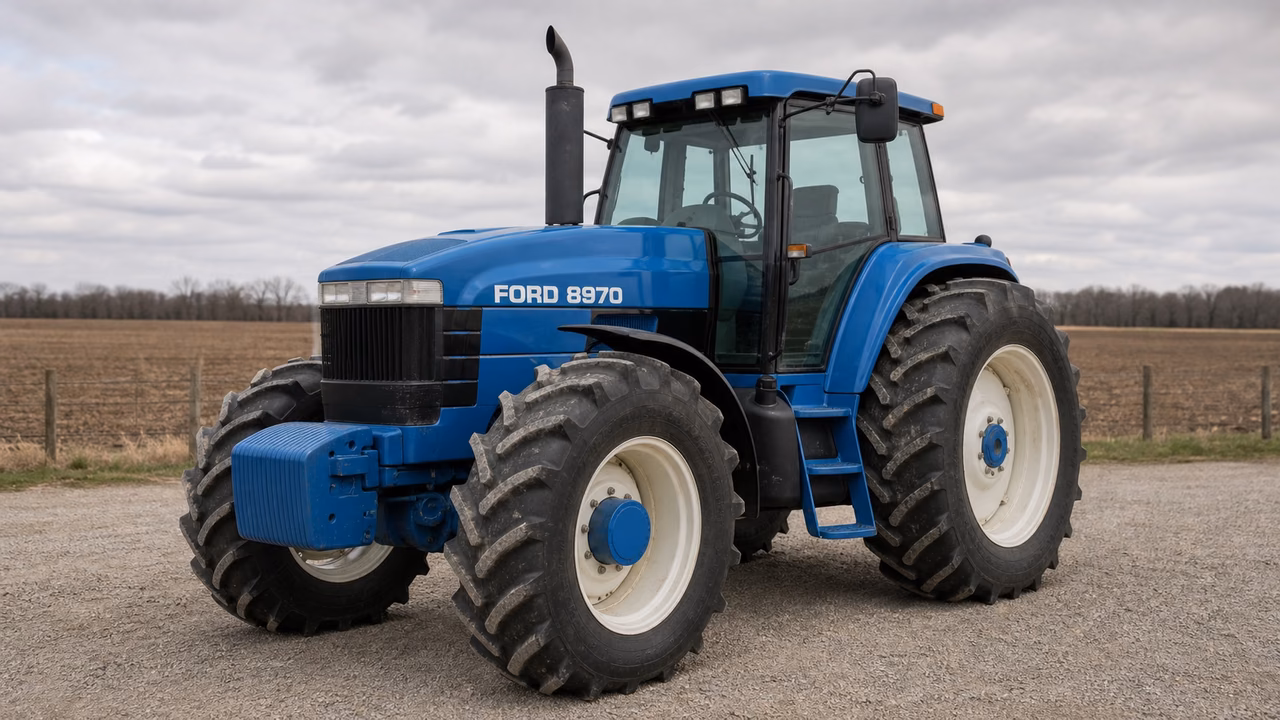

Ford 8970 Overview
Built from 1993 to 2002, the Ford 8970 has a 456 ci (7.5 L) engine rated at 240 hp (179.0 kW) and 2,100 rpm. Its independent 1,000 PTO, Type III rear hitch with 15,000 lb lift, and closed center load sensing hydraulic system with 31 gpm total flow identify its working equipment. Service references include 110 gal fuel, 22 qts engine oil, 26.4 qts coolant, and 36.9 gal hydraulic system capacity.
Ford 8970 Quick Answers
- YearsFord built the 8970 from 1993 through 2002.
- EngineIt has a 456 ci (7.5 L) engine rated at 240 hp (179.0 kW) and 2,100 rpm.
- PTO and hitchThe independent rear PTO is 1,000, and the Type III hitch is rated to lift 15,000 lb.
- HydraulicsThe closed center load sensing system is listed with 31 gpm total flow and 3 valves.
Engine and Power
The engine entry records 456 ci displacement, 240 hp (179.0 kW), and a 2,100 rpm rating.
Diesel engine
| Displacement | 456 ci 7.5 L |
|---|---|
| Rated Rpm | 2100 |
| Coolant Capacity | 26.4 qts 25.0 L |
Manufacture years
Engine
PTO and Hitch
The independent rear PTO is listed at 1,000, with an electro-hydraulic wet-disc clutch and a Type III hitch rated for 15,000 lb.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Hydraulic figures include closed center load sensing, 2,750 psi pressure, 24 gpm pump flow, 31 gpm total flow, and 3 valves.
Type
Capacity
Pressure
Pump flow
Total flow
Valves
Fluids, Battery, and Service Facts
Service capacities include 110 gal of fuel, 22 qts of engine oil, 26.4 qts of coolant, and 36.9 gal for the hydraulic system.
Fuel tank
Engine oil capacity
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
