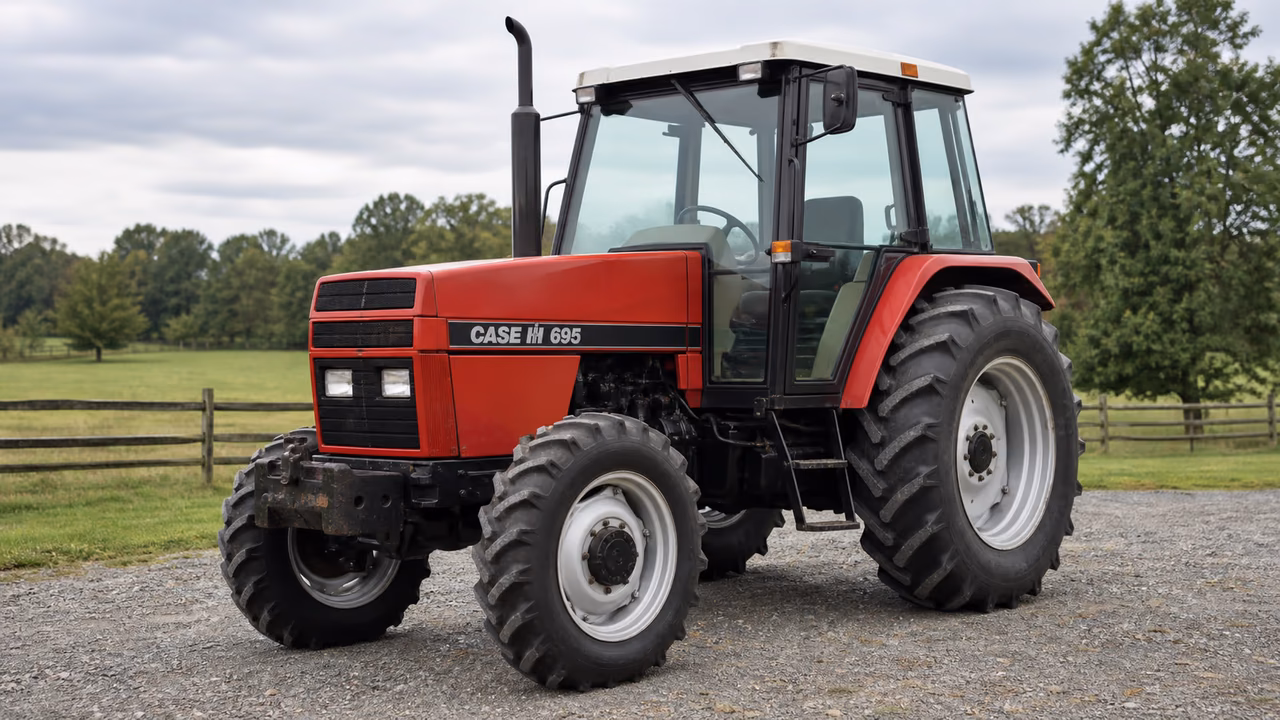

CaseIH 695 Overview
The CaseIH 695 was built from 1991 through 1994. Its 238.8 ci (3.9 L) engine is listed at 72 gross hp and 2400 rpm. An independent 540/1000 PTO, Category II rear hitch, and open-center hydraulic system with 15.8-gpm pump flow are key working references. Listed weight spans 5,720 to 7,585 pounds. The engine-oil capacity is 10.4 qts, and the listed rear-hitch lift is 3,614 lbs.
CaseIH 695 Quick Answers
- Production years1991-1994
- Engine238.8 ci (3.9 L), 72 gross hp at 2400 rpm
- Rear PTOIndependent 540/1000 PTO
- Rear hitchCategory II with 3614-lb listed lift
Engine and Power
The 238.8 ci engine is listed at 72 gross hp and 2400 rpm, with dual paper air-cleaner elements.
Diesel engine
| Displacement | 238.8 ci 3.9 L |
|---|---|
| Air Cleaner | dual paper elements |
| Rated Rpm | 2400 |
| Engine Oil Capacity | 10.4 qts 9.8 L |
Manufacture years
PTO and Hitch
The rear PTO is independent and uses a 540/1000 speed arrangement.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The open-center hydraulic system is listed with 15.8 gpm pump flow.
Type
Capacity
Pump flow
Fluids, Battery, and Service Facts
The listed engine-oil capacity is 10.4 qts, while the hydraulic system capacity is 9 gal.
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
