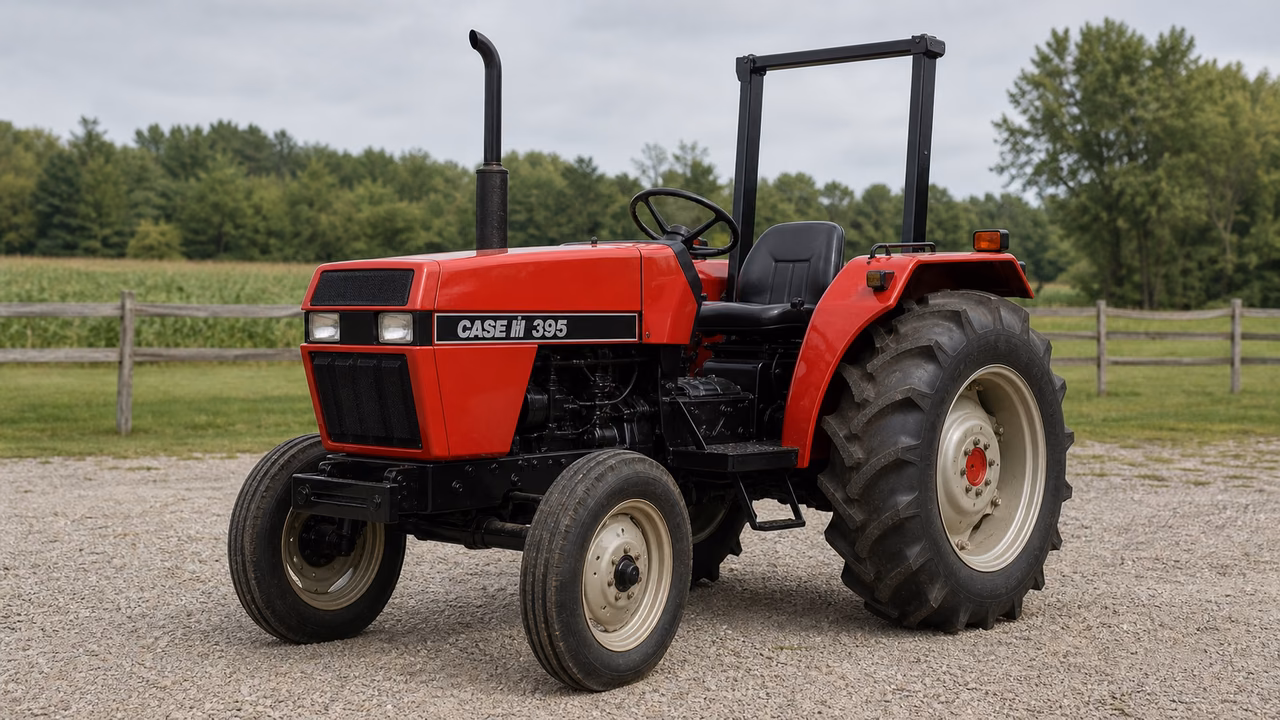

CaseIH 395 Overview
The CaseIH 395 was produced from 1991 to 1993. Its 155 ci (2.5 L) engine is listed at 46 hp (34.3 kW) and 2,200 rpm, paired with a 20 gal (75.7 L) fuel capacity. Owners comparing working setups can also look at the independent 540 PTO, Type I/II rear hitch with 2,160 lb lift at 24 inches, and open-center hydraulics rated at 2,500 psi with 14.3 gpm pump flow.
CaseIH 395 Quick Answers
- YearsCaseIH produced the 395 from 1991 through 1993.
- EngineIt has a 155 ci (2.5 L) engine listed at 46 hp and 2,200 rpm.
- PTOThe rear PTO is independent and listed at 540.
- HydraulicsOpen-center hydraulics are listed at 2,500 psi with 14.3 gpm pump flow.
Engine and Power
The 155 ci (2.5 L) engine is listed at 46 hp and 2,200 rpm.
Diesel engine
| Displacement | 155 ci 2.5 L |
|---|---|
| Rated Rpm | 2200 |
| Engine Oil Capacity | 8 qts 7.6 L |
| Coolant Capacity | 12 qts 11.4 L |
Manufacturer
Manufacture years
PTO and Hitch
The independent rear PTO is listed at 540, with a Type I/II hitch and 2,160 lb lift at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Open-center hydraulics are listed at 2,500 psi with 14.3 gpm pump flow.
Type
Pressure
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
