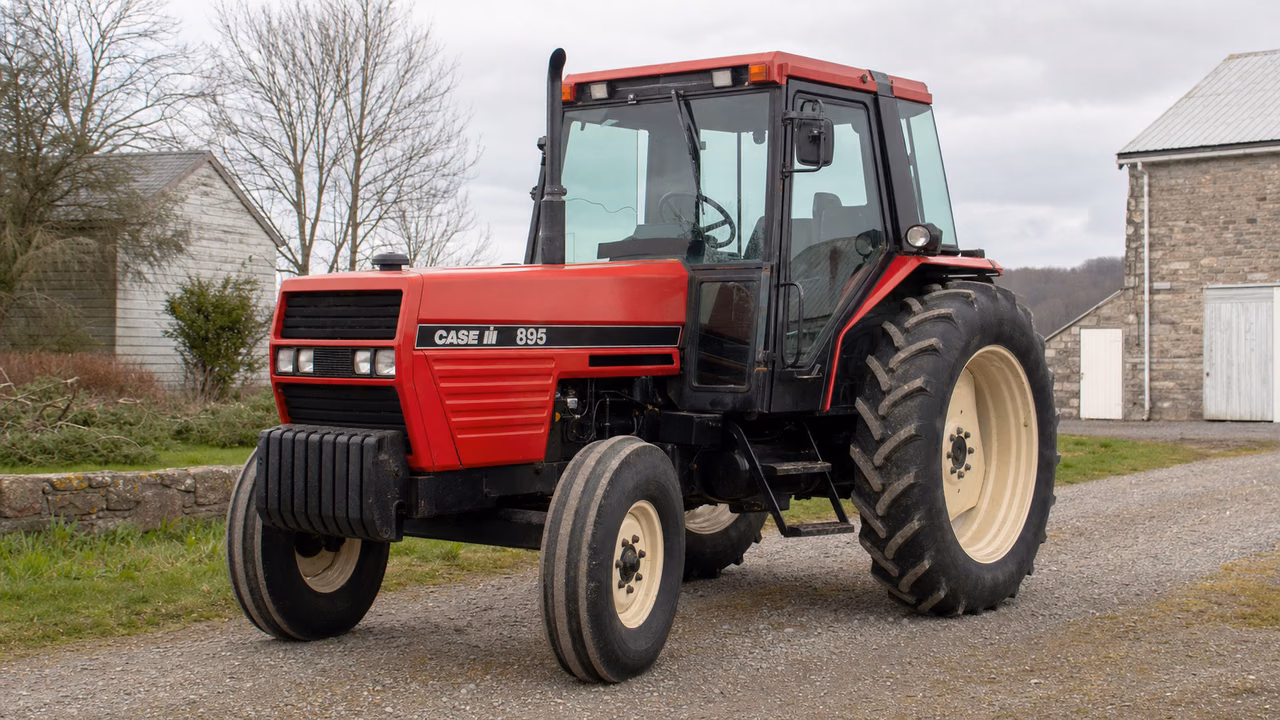

CaseIH 895 Overview
The CaseIH 895 was built from 1991-1994. Recorded details include engine displacement of 268 ci 4.4 L, rear PTO speed of 540, hydraulic system of open center, hydraulic capacity of 9 gal 34.1 L, listed weight of 6065 to 8023 pounds. Together, those figures give owners a practical starting point when comparing engine, driveline, PTO, hydraulic, capacity, and chassis details for this particular tractor. They also provide a useful reference for routine checks, repairs, service planning, and equipment matching.
CaseIH 895 Quick Answers
- Production years1991-1994
- Engine displacement268 ci 4.4 L
- Rear PTO540
- Hydraulicsopen center
Engine and Power
The listed engine details include engine displacement of 268 ci 4.4 L.
Diesel engine
| Displacement | 268 ci 4.4 L |
|---|---|
| Bore Stroke | 3.94x5.51 inches 100 x 140 mm |
| Rated Rpm | 2400 |
| Engine Oil Capacity | 10.4 qts 9.8 L |
| Coolant Capacity | 14.5 qts 13.7 L |
Manufacture years
Transmission
The transmission record notes clutch of dry disc.
8-speed partially synchronized
| Clutch | dry disc |
|---|
PTO and Hitch
PTO and hitch details include rear PTO speed of 540.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The hydraulic record lists hydraulic system of open center.
Type
Capacity
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
