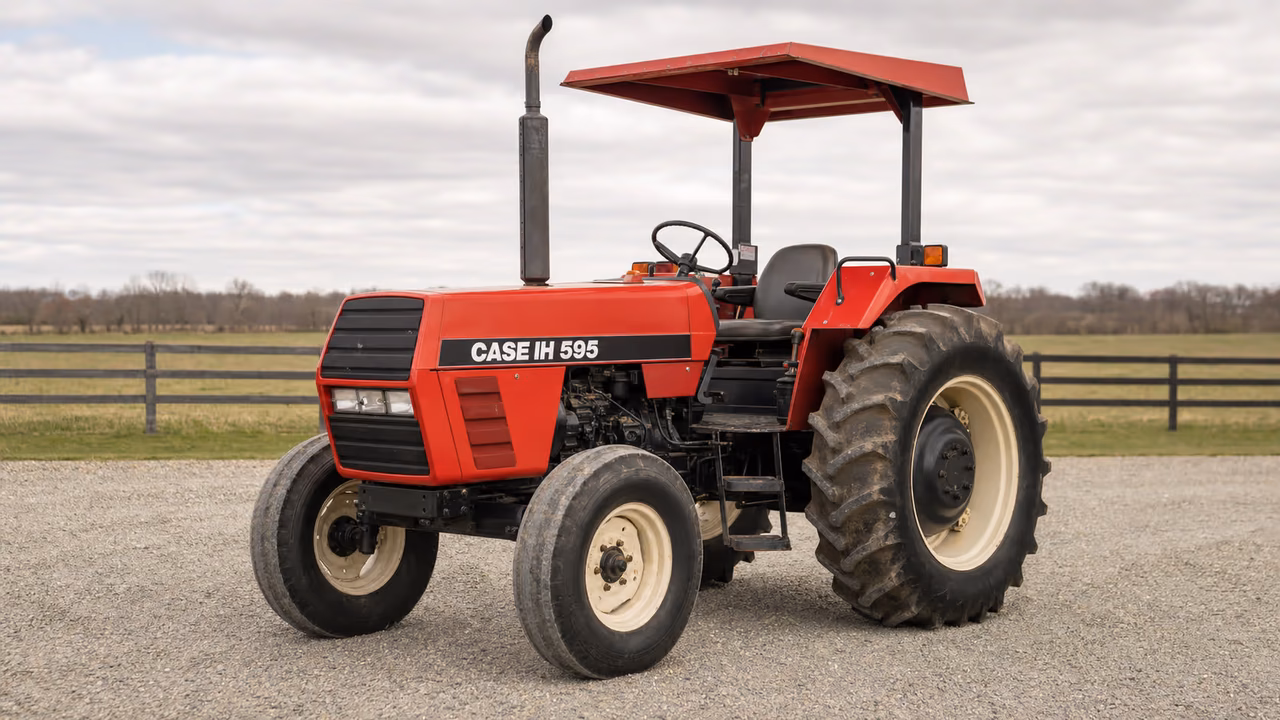

CaseIH 595 Overview
The CaseIH 595 was built from 1991 through 1994 with a 206 ci (3.4 L) diesel engine rated at 60 gross hp and 2300 rpm. It uses an independent 540 PTO and open-center hydraulics with 15.1 gpm pump flow. A II rear hitch, 9 gal hydraulic system, and 5640-to-7485-pound listed weight range help frame the tractor's working configuration. Serial information is tied to a plate on the right-front axle support.
CaseIH 595 Quick Answers
- YearsProduced from 1991 through 1994.
- Engine206 ci (3.4 L) diesel rated at 60 gross hp and 2300 rpm.
- Rear PTOIndependent rear PTO with a 540 speed.
- Serial locationPlate on the right-front axle support.
Engine and Power
The 206 ci diesel engine is rated at 2300 rpm.
Diesel engine
| Displacement | 206 ci 3.4 L |
|---|---|
| Rated Rpm | 2300 |
Manufacture years
PTO and Hitch
The independent 540 PTO works with a II rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Open-center hydraulics provide 15.1 gpm pump flow and a 9 gal system capacity.
Type
Capacity
Pump flow
Electrical
The electrical system uses a 12-volt battery and alternator charging system.
Charging system
Battery volts
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
