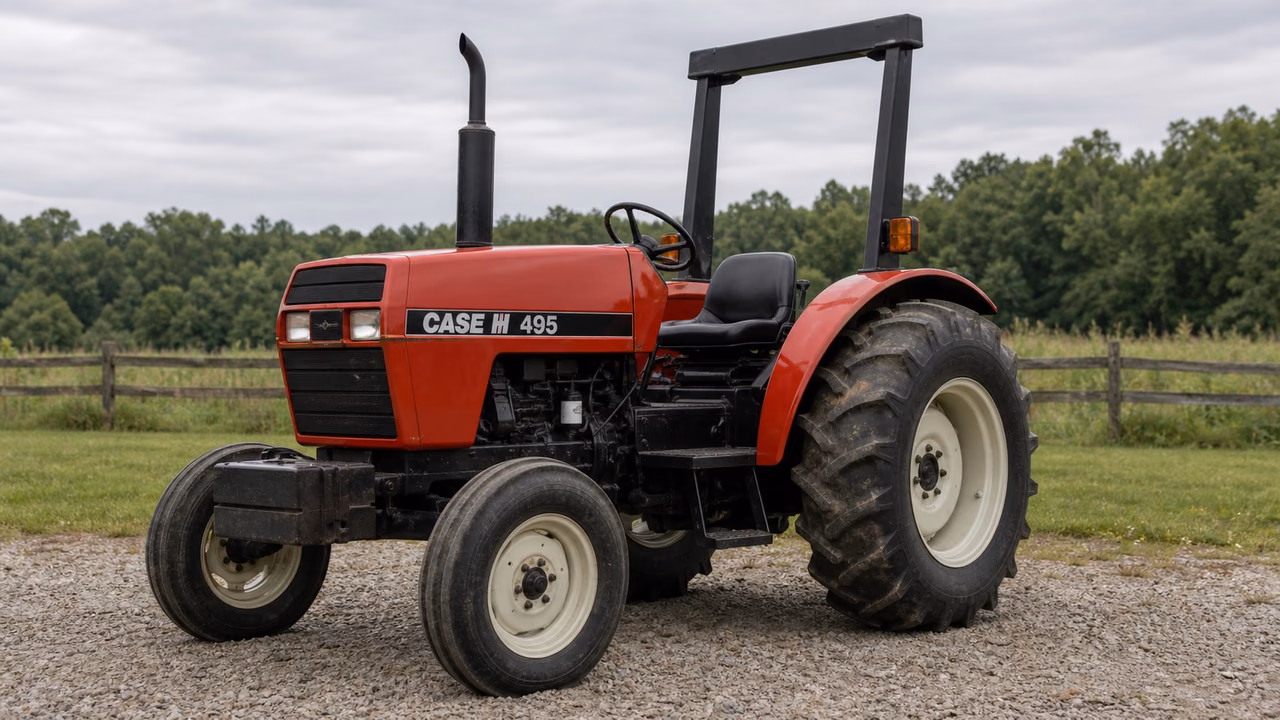

CaseIH 495 Overview
The CaseIH 495 was produced from 1991 to 1994 with a 179 ci (2.9 L) engine listed at 53 hp (39.5 kW) and 2,200 rpm. Its 20 gal (75.7 L) fuel capacity, independent 540 PTO, and Type II/I rear hitch give owners several useful reference points when comparing equipment. The open-center hydraulic system is listed at 15.6 gpm pump flow, while rear lift is listed at 2,340 lb and published tractor weight ranges from 5,200 to 6,090 lb.
CaseIH 495 Quick Answers
- YearsCaseIH produced the 495 from 1991 through 1994.
- EngineIts 179 ci (2.9 L) engine is listed at 53 hp and 2,200 rpm.
- Rear hitchThe Type II/I rear hitch is listed with 2,340 lb lift.
- HydraulicsThe open-center system is listed with 15.6 gpm pump flow.
Engine and Power
The 179 ci (2.9 L) engine is listed at 53 hp and 2,200 rpm.
Diesel engine
| Displacement | 179 ci 2.9 L |
|---|---|
| Rated Rpm | 2200 |
| Engine Oil Capacity | 8.2 qts 7.8 L |
| Coolant Capacity | 12 qts 11.4 L |
Manufacturer
Manufacture years
PTO and Hitch
The rear PTO is independent and listed at 540, alongside a Type II/I rear hitch with 2,340 lb lift.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The open-center hydraulic system is listed with 15.6 gpm pump flow.
Type
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
