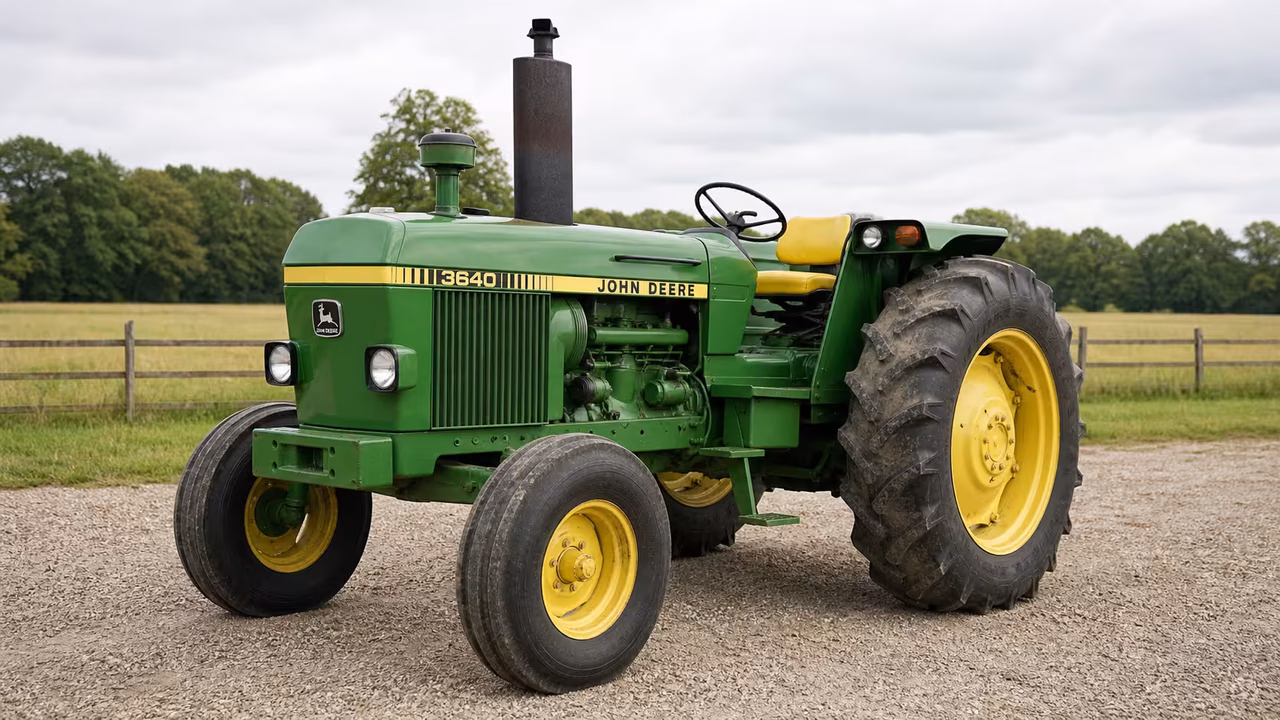

John Deere 3640 Overview
Built from 1984 through 1987, the John Deere 3640 is listed with a 359 cu in (5.9 L) direct-injection diesel rated at 117 gross hp. The published drivetrain is a Power Synchron partial power-shift with 16 forward and 8 reverse gears, but the serial number and installed equipment still decide which manual and parts information belongs to a particular tractor.
Published information also lists independent 540/1000 PTO, closed-center constant-pressure hydraulics, a Category II/III rear hitch, and a 49.2 gal fuel tank. The figures below are reference data, not instructions to service or fit an individual 3640 without configuration checks.
John Deere's official manual portal and the model-specific technical-manual and parts-catalog references are practical starting points for documentation. The matching complete manual remains the authority for procedures, settings, and fitment.
John Deere 3640 Quick Answers
- What engine is in a John Deere 3640?The John Deere 3640 is listed with a 359 cu in (5.9 L) direct-injection diesel rated at 117 gross hp (87.2 kW) and 2,400 rpm.
- What transmission does the 3640 use?The published 3640 transmission is Power Synchron, a partial power-shift with 16 forward and 8 reverse gears. Confirm the installed transmission and serial number before using service literature or parts information.
- What PTO does a John Deere 3640 use?The 3640 is listed with an independent rear PTO and 540/1000 PTO speeds. Confirm the actual shaft and fitted equipment before setting up an implement.
- What hydraulics are listed for the 3640?Published data lists a closed-center constant-pressure hydraulic system, 11.9 gpm (45.0 L/min) pump flow, and 2,466 psi (170 bar) pressure. Installed valves and equipment must be checked on the tractor itself.
- How much fuel does a John Deere 3640 hold?The listed fuel capacity is 49.2 gal (186.2 L). The hydraulic-system capacity is listed separately as 11.1 gal (42.0 L); use the matching manual for fluid grades, intervals, and fill procedures.
- Which manuals are useful for a 3640?Start with John Deere's official Manuals and Training service for current documentation and catalog access. The linked technical-manual and parts-catalog listings are model-specific research routes; verify their edition, serial coverage, and fitment before use.
Engine and Power
The 3640 is listed with a 359 cu in (5.9 L) direct-injection diesel rated at 117 gross hp and 2,400 rpm. Confirm the tractor's serial number and engine identification before treating a specification as a service instruction.
Diesel engine
| Displacement | 359 ci 5.9 L |
|---|---|
| Fuel System | direct injection |
| Compression | 17.4:1 |
| Rated Rpm | 2400 |
Manufacturer
Manufacture years
Transmission
The published Power Synchron partial power-shift is listed with 16 forward and 8 reverse gears. Match the serial number and installed drivetrain before using a manual, fluid figure, or parts diagram.
Power Synchron
| Name | Power Synchron |
|---|---|
| Type | partial power shift |
| Gears | 16 forward and 8 reverse |
PTO and Hitch
The 3640 is listed with independent 540/1000 rear PTO. PTO shaft, options, and equipment vary in the field, so final implement fitment needs to be checked on the tractor.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Published specifications list closed-center constant-pressure hydraulics, 11.9 gpm (45.0 L/min) pump flow, and 2,466 psi (170 bar) pressure. Verify installed remotes, hitch, and auxiliary equipment before diagnosing or ordering components.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Published capacities include 49.2 gal (186.2 L) of fuel and 11.1 gal (42.0 L) for the hydraulic system. Use complete, configuration-matched John Deere literature for fluid grades, service intervals, procedures, and torque or adjustment specifications.
Fuel tank
Hydraulic system
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Length
Manuals and Documents
John Deere's official Manuals and Training service is the best starting point for locating current manuals and parts catalogs. Search with the model and serial number before relying on a document.
The two model-specific technical-manual references below identify 3640 service literature, but they are access and catalog pointers. Verify the complete manual's edition and coverage before applying a procedure, setting, or specification.
Reference page
- John Deere Manuals and Trainingoperation, maintenance, and specifications
Official John Deere route for operator, technical, and parts-catalog publications.
Open John Deere manuals
Service manual
- John Deere 3640 technical-manual listingoperation, maintenance, and specifications
Commercial model-specific technical-manual listing. Verify edition and coverage before use.
View technical manual - John Deere 3640 dealer-manual archive referenceoperation, maintenance, and specifications
Archive reference to 3640 dealer technical literature. Confirm edition and serial coverage before use.
Open archive reference
Parts catalog
- John Deere 3640 parts-manual listingparts matching
Commercial model-specific parts-catalog listing. Verify serial coverage and fitment before ordering.
View parts manual
Parts Checks Before Ordering
Start with the serial number, then identify the installed Power Synchron equipment, PTO, hydraulic valves and remotes, hitch, wheel equipment, ballast, and any front-drive configuration. The model designation alone is not a complete parts match.
The linked 3640 parts-manual listing is a route to catalog material, not proof of a part number or fitment. Confirm all numbers and coverage in matching John Deere documentation before ordering.
- John Deere 3640 parts-manual listingCommercial listing for a John Deere 3640 parts catalog with illustrations and parts names. Verify exact serial coverage and part fitment before ordering.View parts manual
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
