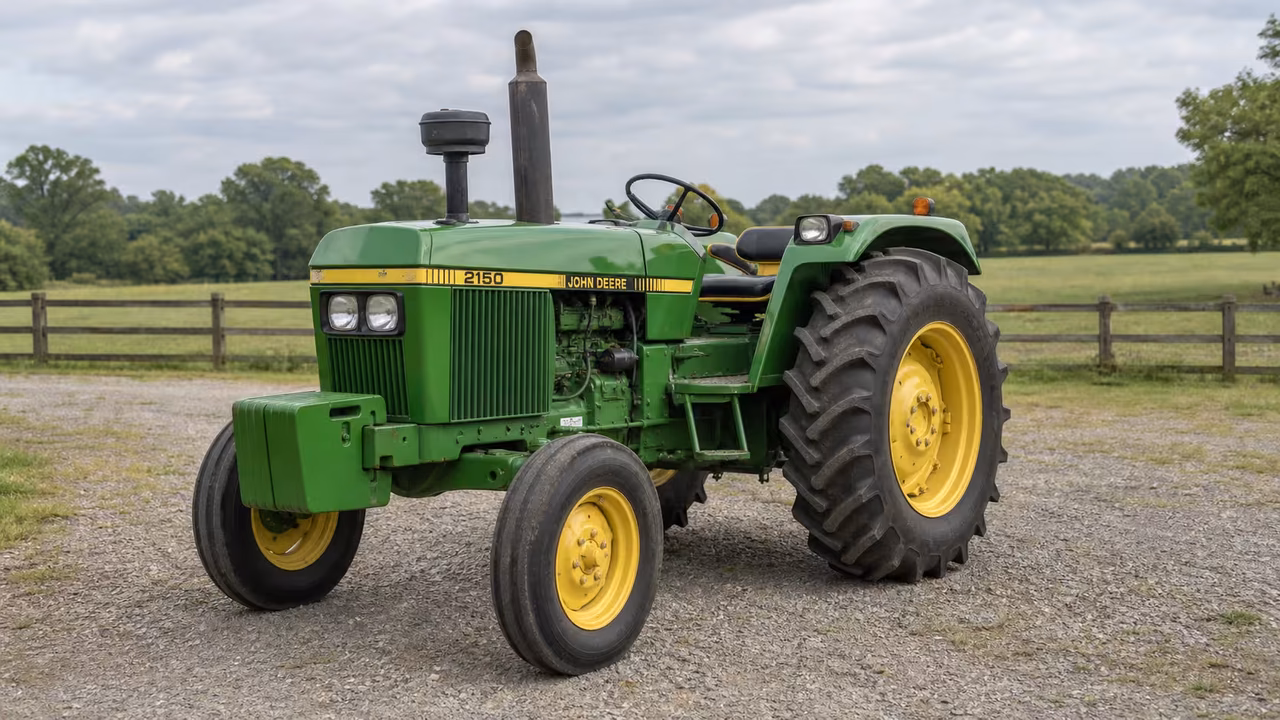

John Deere 2150 Overview
For owners, buyers, restorers, and parts searchers, the John Deere 2150 is most useful when its serial range, equipment, manuals, and parts sources are checked together. The John Deere 2150 tractor was produced from 1983 through 1986.
This compact utility machine sits in the mid‑size work class and is designed for reliable service and straightforward maintenance on a range of implements.
Manually tested and owner documentation support trust: Nebraska Tractor Test reports and official manuals provide confidence for maintenance and parts decisions, while serial ranges and documented variants define what to check before ordering parts or performing service.
John Deere 2150 Quick Answers
- Production yearsThe John Deere 2150 was produced from 1983 through 1986.
- Engine displacementEngine displacement is 179 cubic inches (2.9 L).
- Rear PTO and hitchRear PTO is 540; hitch is Category II/I.
- Coolant capacityCoolant capacity is 11 qts.
- Fuel tank capacityFuel tank capacity is 19.5 gal.
Engine and Power
Engine and power: 179 cu in (2.9 L) diesel with a 2500 rpm rating and a broad operating range.
Diesel engine
John Deere / diesel / 3-cylinder / liquid-cooled
| Displacement | 179 ci 2.9 L |
|---|---|
| Bore Stroke | 4.19x4.33 inches 106 x 110 mm |
| Fuel Use | 3.214 gal/hour 12.2 l/hour |
| Air Cleaner | dual paper elements |
| Compression | 17.4:1 |
| Rated Rpm | 2500 |
| Operating Rpm | 1500-2500 |
| Starter Volts | 12 |
| Coolant Capacity | 11 qts 10.4 L |
Manufacturer
Manufacture years
Tested PTO
Tested drawbar
Transmission
Transmission options include Top-Shaft Synchronized, Hi-Lo TSS, and Direction Reverser layouts with multiple forward/reverse configurations.
John Deere Top-Shaft Synchronized
| Name | John Deere Top-Shaft Synchronized |
|---|---|
| Type | partially synchronized |
| Gears | 8 forward and 4 reverse |
John Deere Hi-Lo TSS
| Name | John Deere Hi-Lo TSS |
|---|---|
| Type | two-speed power shift |
| Gears | 16 forward and 8 reverse |
John Deere Direction Reverser
| Name | John Deere Direction Reverser |
|---|---|
| Type | power shuttle |
| Gears | 8 forward and 4 reverse |
PTO and Hitch
Rear PTO and hitch setup center on a 540-type rear PTO and Category II/I hitch configuration, with lift capacity documented for typical work cycles.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Closed-center hydraulics with measurable flow and pressure, enabling a range of hydraulic implements.
Type
Pressure
Pump flow
Fluids, Battery, and Service Facts
Maintenance notes include coolant capacity and battery voltage; fluid, filter, and belt specifics depend on configuration and require parts catalogs or manual evidence for exact guidance.
Fuel tank
Battery volts
Battery Ah
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Weight
Width
Front tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial-number references help narrow the correct year and configuration; prefixes and regional builds should be confirmed with authentic documentation.
1983
1984
1985
1986
Manuals and Documents
The documents below add manual, parts, and test context for the John Deere 2150. They are useful for controls, service categories, parts matching, and tested-performance details that do not fit into short spec rows.
Match coverage carefully before relying on a document for service decisions, especially when one manual, catalog, or report covers several models, fuel types, transmissions, or tractor variants.
- John Deere 2150 & 2255 Tractors Operator's ManualOperator manual for John Deere 2150 and 2255; includes operating and maintenance guidance and a Specifications section that covers capacities.Open source
- Manuals and Training - John Deere USOfficial John Deere portal for operator manuals, technical manuals, and parts catalogs; general access to model documentation and publications.Open source
- John Deere 2150 Parts DiagramsParts diagrams and diagrams index for John Deere 2150 (family coverage lists related models).Open source
- Test 1469: John Deere 2150 Diesel 16-SpeedNebraska Tractor Test Report for John Deere 2150 Diesel 16-Speed (Test 1469, dated 1983); confirms model applicability and test framework.Open source
- John Deere 2150 Tractor PartsParts listings and cross-reference pages for John Deere 2150 tractors.Open source
Parts Checks Before Ordering
Do not order John Deere 2150 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, PTO setup, and build year before choosing service parts.
Parts (filters, fluids, belts, electrical, clutch/PTO, and hydraulics) can vary by setup. Exact part numbers require a parts catalog, manual, or trusted supplier source before they become recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
