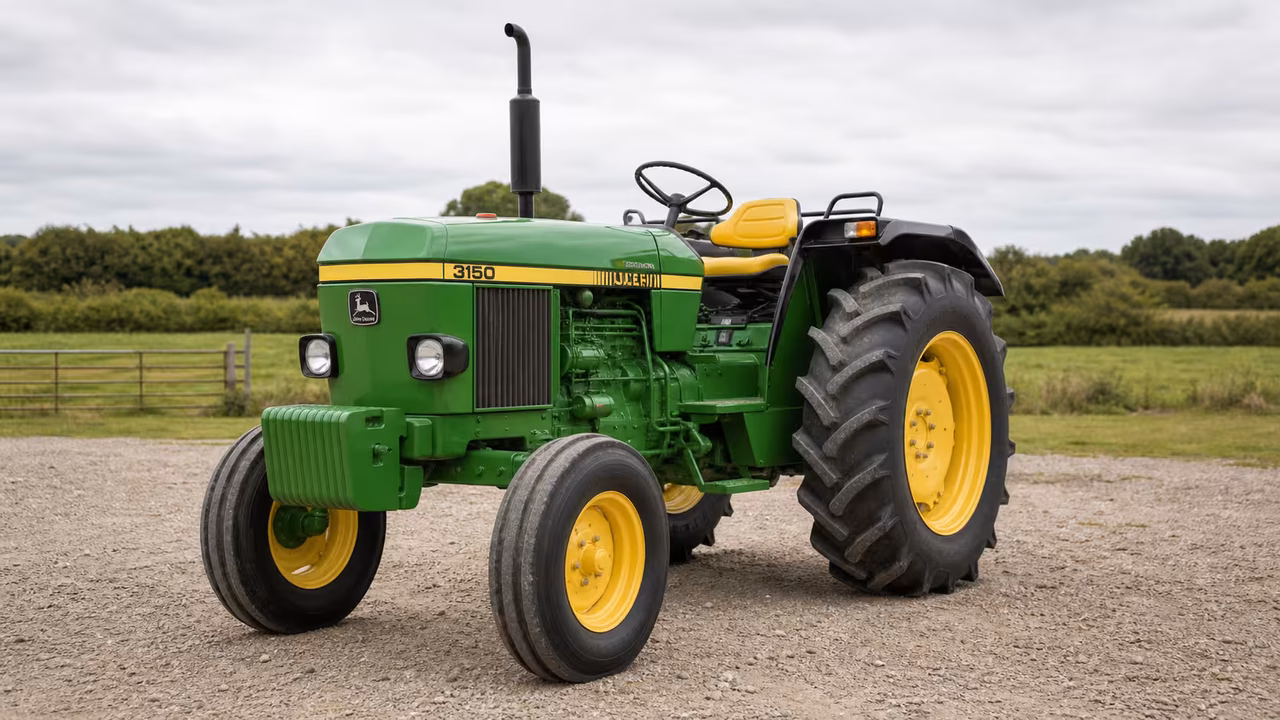

John Deere 3150 Overview
John Deere 3150 was built from 1985-1987. The published engine record lists a 359 ci 5.9 L engine at 2400 rpm. The published drivetrain is listed as Top Shaft Synchronized Hi-Lo (TSS) transmission, two-speed power shift, and 16 forward and 8 reverse gears.
The rear PTO is listed as independent rear PTO, 540/1000 PTO, and 540@2400 engine rpm for the published PTO setting. Hydraulic specifications list closed center hydraulics and 22 gpm 83.3 lpm flow. The rear hitch is listed as a Category II rear hitch and 6300 lbs 2857 kg listed lift. Published capacities include 35.4 gal 134.0 L fuel capacity, 18 qts 17.0 L coolant capacity, and 12.4 gal 46.9 L hydraulic-system capacity. Published weight listings include 11770 lbs (4WD cab) 5338 kg.
John Deere 3150 Quick Answers
- When was the John Deere 3150 built?John Deere 3150 is listed from 1985-1987. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a John Deere 3150?The published engine record lists a 359 ci 5.9 L engine at 2400 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the John Deere 3150 use?The published drivetrain is listed as Top Shaft Synchronized Hi-Lo (TSS) transmission, two-speed power shift, and 16 forward and 8 reverse gears. Identify the installed transmission and serial number before using repair or parts information.
- What PTO is listed for the John Deere 3150?The rear PTO is listed as independent rear PTO, 540/1000 PTO, and 540@2400 engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list closed center hydraulics and 22 gpm 83.3 lpm flow. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 35.4 gal 134.0 L fuel capacity, 18 qts 17.0 L coolant capacity, and 12.4 gal 46.9 L hydraulic-system capacity. The rear hitch is listed as a Category II rear hitch and 6300 lbs 2857 kg listed lift. Published weight listings include 11770 lbs (4WD cab) 5338 kg.
Engine and Power
The published engine record lists a 359 ci 5.9 L engine at 2400 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
John Deere / diesel / 6-cylinder / liquid-cooled
| Displacement | 359 ci 5.9 L |
|---|---|
| Bore Stroke | 4.19x4.33 inches 106 x 110 mm |
| Air Cleaner | paper elements |
| Compression | 17.8:1 |
| Rated Rpm | 2400 |
| Starter Volts | 12 |
| Coolant Capacity | 18 qts 17.0 L |
Manufacture years
Transmission
The published drivetrain is listed as Top Shaft Synchronized Hi-Lo (TSS) transmission, two-speed power shift, and 16 forward and 8 reverse gears. Match the installed transmission and serial number before treating a repair or parts detail as a direct match.
Top Shaft Synchronized Hi-Lo (TSS)
| Name | Top Shaft Synchronized Hi-Lo (TSS) |
|---|---|
| Type | two-speed power shift |
| Gears | 16 forward and 8 reverse |
PTO and Hitch
The rear PTO is listed as independent rear PTO, 540/1000 PTO, and 540@2400 engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Rear lift
Hydraulics
Hydraulic specifications list closed center hydraulics and 22 gpm 83.3 lpm flow. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Pump flow
Valves
Fluids, Battery, and Service Facts
Published capacities include 35.4 gal 134.0 L fuel capacity, 18 qts 17.0 L coolant capacity, and 12.4 gal 46.9 L hydraulic-system capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial rows are shown where documented.
1985
1986
1987
location
Manuals and Documents
John Deere's official Manuals and Training service is the starting point for operator, technical, and parts-catalog publications. Search with the model and serial number before relying on a document.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Reference page
- John Deere Manuals and Trainingoperation, maintenance, and specifications
Official John Deere route for operator, technical, and parts-catalog publications. Search with the model and serial number.
Open John Deere manuals
Parts catalog
- John Deere Parts Catalogparts matching
Official John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.
Open parts catalog
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual John Deere 3150. Verify the tag and the actual tractor before ordering.
- John Deere Parts CatalogOfficial John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.Open parts catalog
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
