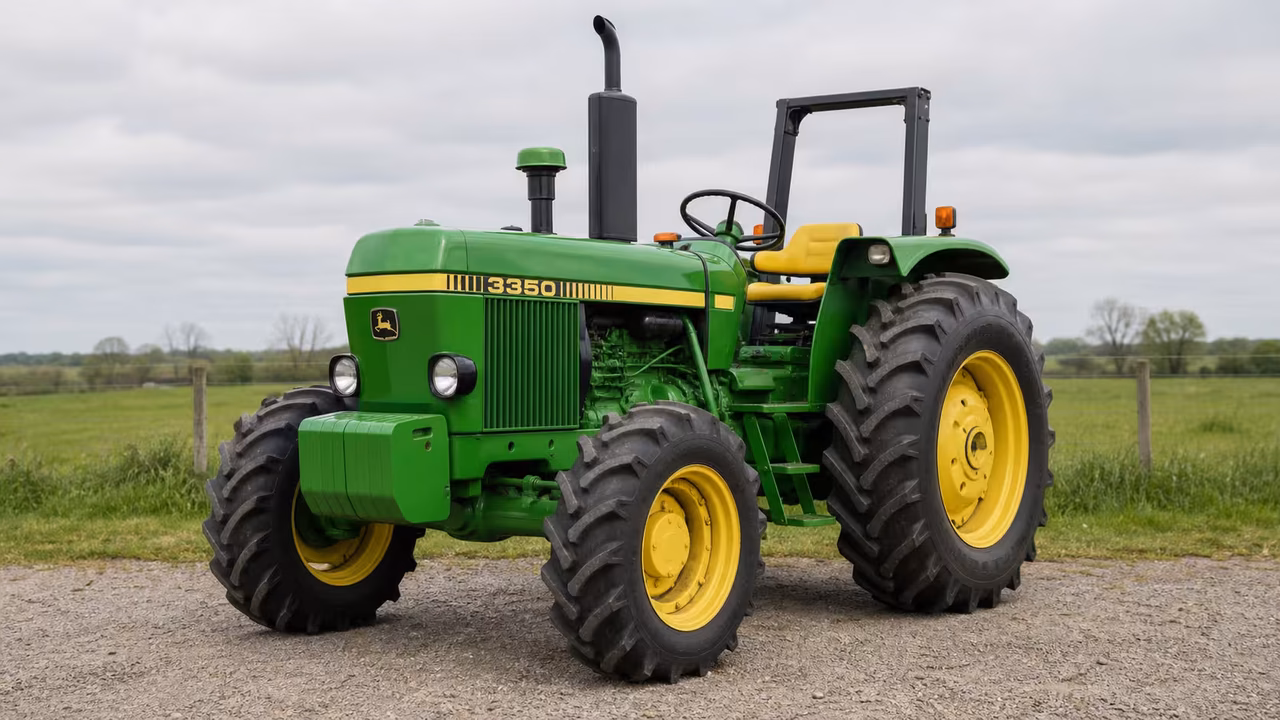

John Deere 3350 Tractor Specs (1986-1993)

John Deere 3350 Quick Answers

• When was the John Deere 3350 built?John Deere 3350 is listed from 1986-1993. Use the full identification tag and configuration details to narrow down an individual machine.
• What engine is listed for a John Deere 3350?The published engine record lists a 359 ci 5.9 L engine with a published 100 hp 74.6 kW rating at 2300 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
• What transmission does the John Deere 3350 use?Published records identify more than one transmission configuration. Compare the individual transmission options, the full ID tag, and the installed drivetrain before using repair or parts information.
• What PTO is listed for the John Deere 3350?The rear PTO is listed as independent rear PTO, 540/1000 PTO, and 540@2070 | 1000@2172 engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
• What hydraulic system is listed?Hydraulic specifications list closed center constant pressure hydraulics, 11.62 gpm 44.0 lpm flow, and 2698 psi 186.0 bar pressure. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
• Which capacity and chassis details matter?Published capacities include 32 gal 121.1 L fuel capacity, 12.15 qts 11.5 L engine oil capacity, 20.08 qts 19.0 L coolant capacity, and 12.94 gal (2WD) 49.0 L hydraulic-system capacity. The rear hitch is listed as a Category II/IIIN rear hitch. Published weight listings include 9315 to 10880 pounds.

Engine and Power

The published engine record lists a 359 ci 5.9 L engine with a published 100 hp 74.6 kW rating at 2300 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.

Transmission

Published records identify more than one transmission configuration. Compare the individual options with the tractor's full ID tag and installed drivetrain before treating a repair or parts detail as a direct match.

PTO and Hitch

The rear PTO is listed as independent rear PTO, 540/1000 PTO, and 540@2070 | 1000@2172 engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.

Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.

Hydraulics

Hydraulic specifications list closed center constant pressure hydraulics, 11.62 gpm 44.0 lpm flow, and 2698 psi 186.0 bar pressure. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.

Fluids, Battery, and Service Facts

Published capacities include 32 gal 121.1 L fuel capacity, 12.15 qts 11.5 L engine oil capacity, 20.08 qts 19.0 L coolant capacity, and 12.94 gal (2WD) 49.0 L hydraulic-system capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.

Tires and Dimensions

Tire and dimension values can vary by wheel, axle, and configuration.

Electrical

Electrical rows are included when documented.

Manuals and Documents

John Deere's official Manuals and Training service is the starting point for operator, technical, and parts-catalog publications. Search with the model and serial number before relying on a document.

For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
