John Deere 2755 Overview

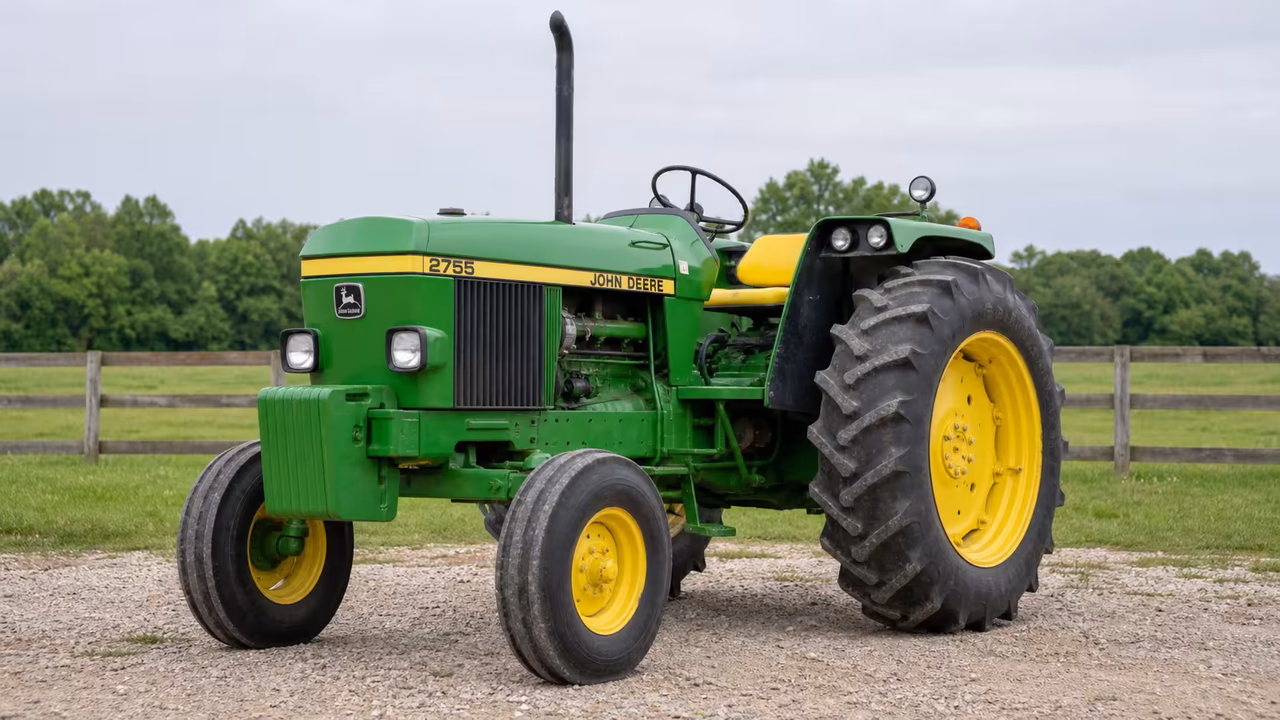

For owners, buyers, restorers, and parts searchers, the John Deere 2755 is most useful when its serial range, equipment, manuals, and parts sources are checked together. The John Deere 2755 Tractor is a rugged mid‑size machine produced between 1987 and 1992. It is built in Mannheim, Germany, and uses a turbocharged four‑cylinder diesel delivering about 88 hp.
The 2755 offers flexible PTO and hitch configurations that vary by model code and serial range. Front and rear PTOs can be configured independently, and the hydraulic system is designed to support a range of implements.
Official manuals and test reports provide confidence for service, maintenance, and parts decisions; verify the tractor’s serial range to confirm exact equipment and capacity figures.
John Deere 2755 Quick Answers
- Production yearsThe John Deere 2755 was produced from 1987 through 1992.
- PowerEngine power is 88 hp; PTO power is 75 hp (claimed).
- Engine displacementEngine displacement is 239 cu in (3.9 L).
- PTO and hitchRear PTO is 540 rpm (independent); Front PTO is 1000 rpm (independent); Rear hitch is Category II/I; Front hitch is II (optional).
- Service capacityEngine oil capacity 10.6 qt (10.0 L); Hydraulic system 11.2 gal (42.4 L); Coolant capacity 13.7 qt (13.0 L).
Engine and Power
Engine and power come from a turbocharged four‑cylinder diesel delivering about 88 hp, with displacement around 239 cu in.
Diesel engine
John Deere / turbocharged diesel / 4-cylinder / liquid-cooled inline
| Displacement | 239 ci 3.9 L |
|---|---|
| Bore Stroke | 4.19x4.33 inches 106 x 110 mm |
| Power | 88 hp 65.6 kW |
| Compression | 17.8:1 |
| Rated Rpm | 2300 |
| Starter Volts | 12 |
| Engine Oil Capacity | 10.6 qts 10.0 L |
| Coolant Capacity | 13.7 qts 13.0 L |
Manufacturer
Manufacture years
Engine
Transmission
Transmission options include John Deere Top‑Shaft Synchronized (TSS) variants with Hi‑Lo and Creeper configurations; gears and clutches vary by model code.
John Deere Top-Shaft Synchronized (TSS)
| Name | John Deere Top-Shaft Synchronized (TSS) |
|---|---|
| Type | partially synchronized |
| Gears | 8 forward and 4 reverse |
| Clutch | dry disc |
John Deere Hi-Lo Top-Shaft Synchronized (TSS)
| Name | John Deere Hi-Lo Top-Shaft Synchronized (TSS) |
|---|---|
| Type | partial power shift |
| Gears | 16 forward and 8 reverse |
John Deere Top-Shaft Synchronized Creeper
| Name | John Deere Top-Shaft Synchronized Creeper |
|---|---|
| Gears | 12 forward and 8 reverse |
PTO and Hitch
PTO and hitch configurations center on rear 540 rpm and front 1000 rpm, with independent PTO options and a Category II/I rear hitch; front hitch is II (optional).
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Hydraulics are closed center, with about 21 gpm total flow and 2320 psi hydraulic pressure; valve count commonly 1 to 3.
Type
Capacity
Pressure
Total flow
Valves
Fluids, Battery, and Service Facts
Maintenance notes: engine oil capacity 10.6 qt (10.0 L); hydraulic capacity 11.2 gal (42.4 L); coolant capacity 13.7 qt (13.0 L).
Fuel tank
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Ground
Charging system
Battery volts
Serial Number Lookup
Serial ranges anchor the model year; official data lists 1987–1992 builds with serial blocks that vary by year; verify serial for exact configuration.
1987
1988
1989
1990
1991
1992
Manuals and Documents
The documents below add manual, parts, and test context for the John Deere 2755. They support controls, service categories, parts matching, and tested-performance details that don’t fit into short spec rows.
Match coverage carefully before relying on a document for service decisions, especially when one manual, catalog, or report covers several models, fuel types, transmissions, or variants.
- John Deere Tractors 2355 2555 2755 2855N Technical Manual TM4434 ENComprehensive technical/manual coverage for 2355/2555/2755/2855N family; includes operation and service detailsOpen source
- John Deere 2755 and 2855N Tractors Operator’s Manual (OML57754)Official operator manual for 2755/2855N; includes operation, maintenance, and specsOpen source
- John Deere Tractor 2755 2855N Operators ManualOperator manual for 2755/2855N (reprint/seller-provided); covers operation, lubrication, maintenance and safetyOpen source
- 50 & 55 Series Capacities – Capacities (fuel, coolant, oil, hydraulic)Official Deere capacity figures for the 50/55 Series tractors, including 2755 variants; covers fuel, coolant, crankcase oil, hydraulic, and transmission capacitiesOpen source
- John Deere Parts - Official Parts & Catalog PageJohn Deere OEM parts availability and cataloging framework; relevant to model 2755 parts matching and OEM diagramsOpen source
- John Deere 2755 Tractor Parts – WengersOEM-equivalent and aftermarket parts catalog; includes rear/front lift specs and basic capacitiesOpen source
- Nebraska & OECD Tractor Test DataIndex of Nebraska and OECD tractor test data; contains 2755-related test documentation within the OECD frameworkOpen source
- Nebraska Tractor Test Laboratory – Test ReportsOfficial Nebraska test reports repository; includes historical John Deere 2755 test documentsOpen source
Parts Checks Before Ordering
Do not order parts by model name alone. Match the part to the tractor's model code, serial range, engine, transmission, and PTO setup before ordering.
Parts and fluids vary by setup; exact numbers require a parts catalog or manual verification against serial.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
