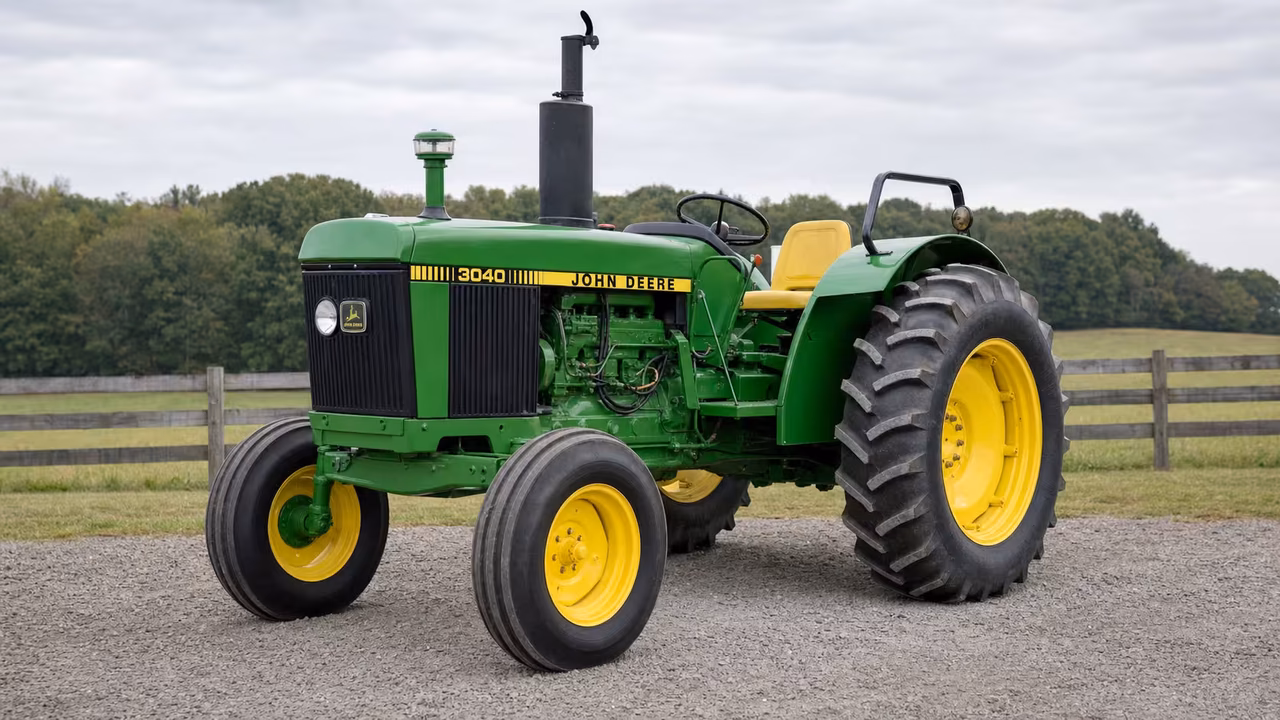

John Deere 3040 Overview
The John Deere 3040 is listed from 1980-1987. Published records identify a 359 cu in (5.9 L) diesel engine, independent 540/1000 PTO, closed center; 12.4 gpm (46.9 l/min) hydraulics, and a Category II rear hitch. Those are useful starting points, but the exact transmission, drive arrangement, and equipment still need to match before service work or parts ordering.
The published 3040 transmission listing is Power Syncron, with 8F/4R or 16F/8R, depending on transmission. Where multiple gear arrangements are published, do not treat a capacity, control layout, or repair procedure for one version as applying to another just because the tractor shares the same model decal.
Start identification with the tractor's complete tag, then record the transmission, drive arrangement, PTO equipment, and cab or operator-station details before selecting literature or parts. The source records here do not substitute for a complete serial-number lookup.
John Deere 3040 Quick Answers
- When was the John Deere 3040 built?The John Deere 3040 is listed from 1980-1987. Use the full identification tag and actual configuration to narrow down an individual tractor.
- What engine is in a John Deere 3040?Published John Deere 3040 records list a 359 cu in (5.9 L) diesel engine rated at 2,500 rpm. Confirm the engine and tractor configuration before applying a setting or parts reference.
- What transmission does a John Deere 3040 use?The published 3040 transmission record lists Power Syncron, with 8F/4R or 16F/8R, depending on transmission. Identify the transmission fitted to the tractor before checking fluid capacity or following a repair procedure.
- What PTO and hydraulics are listed?Published records list independent 540/1000 and closed center; 12.4 gpm (46.9 l/min) hydraulics. Confirm the installed controls and equipment before an implement match or hydraulic diagnosis.
- What fluid capacities are published?Published records list 33.3 gal (126.0 L) of fuel, 12.2 qt (11.5 L) of engine oil, and 25.4 qt (24.0 L) of coolant. Treat capacity figures as reference information, not a substitute for matching fluid type, service interval, or fill procedure.
- How do I identify a John Deere 3040?The published baseline record does not provide a complete serial-number lookup. Record the full identification tag and use a model- and configuration-matched parts or technical publication before ordering.
Engine and Power
Published John Deere 3040 data lists a 359 cu in (5.9 L) diesel engine rated at 2,500 rpm. Confirm the tractor and engine before using a service setting, capacity, or replacement part reference.
Diesel engine
| Displacement | 359 ci 5.9 L |
|---|---|
| Compression | 16.8:1 |
| Rated Rpm | 2500 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 12.2 qts 11.5 L |
| Coolant Capacity | 25.4 qts 24.0 L |
Manufacturer
Manufacture years
Transmission
The John Deere 3040 transmission is listed as Power Syncron, with 8F/4R or 16F/8R, depending on transmission. Match the actual gearbox before using a fluid capacity, parts illustration, or repair procedure.
Power Syncron
| Name | Power Syncron |
|---|---|
| Type | two-speed power shift |
| Gears | 16 forward and 8 reverse |
| Clutch | dry disc |
| Transmission Oil Capacity | 63.4 qts 60.0 L |
PTO and Hitch
Published records list independent 540/1000 PTO. Confirm the installed PTO controls and driveline arrangement before implement setup or troubleshooting.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Rear lift
Hydraulics
Published data lists closed center; 12.4 gpm (46.9 l/min) hydraulics. A capacity or flow listing is not a procedure; use configuration-matched operator or technical literature for adjustments and service work.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Published records list 33.3 gal (126.0 L) of fuel, 12.2 qt (11.5 L) of engine oil, and 25.4 qt (24.0 L) of coolant. Use the exact model and configuration when selecting fluids, intervals, and service procedures.
Fuel tank
Hydraulic system
Battery volts
Battery Ah
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Weight
Width
Electrical
Published electrical listings should be matched to the actual tractor before diagnosis. Confirm the charging arrangement, battery setup, and operator-station configuration before replacing components.
Ground
Charging system
Charging amps
Battery volts
Manuals and Documents
The documentation routes below cover the John Deere 3040 or its stated model family. They are starting points for finding operator, technical, and parts material; they do not prove that a procedure or part applies to every transmission, drive, or cab arrangement.
Before using a procedure or ordering from a diagram, record the model, serial number, transmission, drive arrangement, PTO equipment, and operator-station configuration from the tractor.
Operator manual
- John Deere manuals and trainingoperation, maintenance, and specifications
Official John Deere starting point for operator, technical, and parts publications. Search with the exact model and serial number.
Find John Deere publications - John Deere 3040/3140 operator manualoperation, maintenance, and specifications
Operator-manual route for the 3040 and 3140 family. Match the exact model and equipment before following a maintenance or operating procedure.
View operator manual
Parts catalog
- John Deere parts searchparts matching
Official parts-search route. Use the complete model and serial information before treating a catalog listing as fitment.
Search John Deere parts
Service manual
- John Deere 3040/3140 technical manualoperation, maintenance, and specifications
Official John Deere technical-manual preview for the 3040 and 3140 family. Match the model and configuration before using service information.
Open technical-manual preview
Parts Checks Before Ordering
Start with the John Deere 3040 identification tag, then verify the engine, transmission, PTO, drive arrangement, and operator-station equipment. 3040 records include specifications that can vary by configuration, especially where more than one gearbox is published.
A catalog or technical-manual route helps locate documentation, but it does not prove fitment. Match the serial number and actual tractor before ordering.
- John Deere parts searchOfficial John Deere parts-search route. Use the model and full serial or PIN before treating a catalog listing as a fitment answer.Search John Deere parts
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
