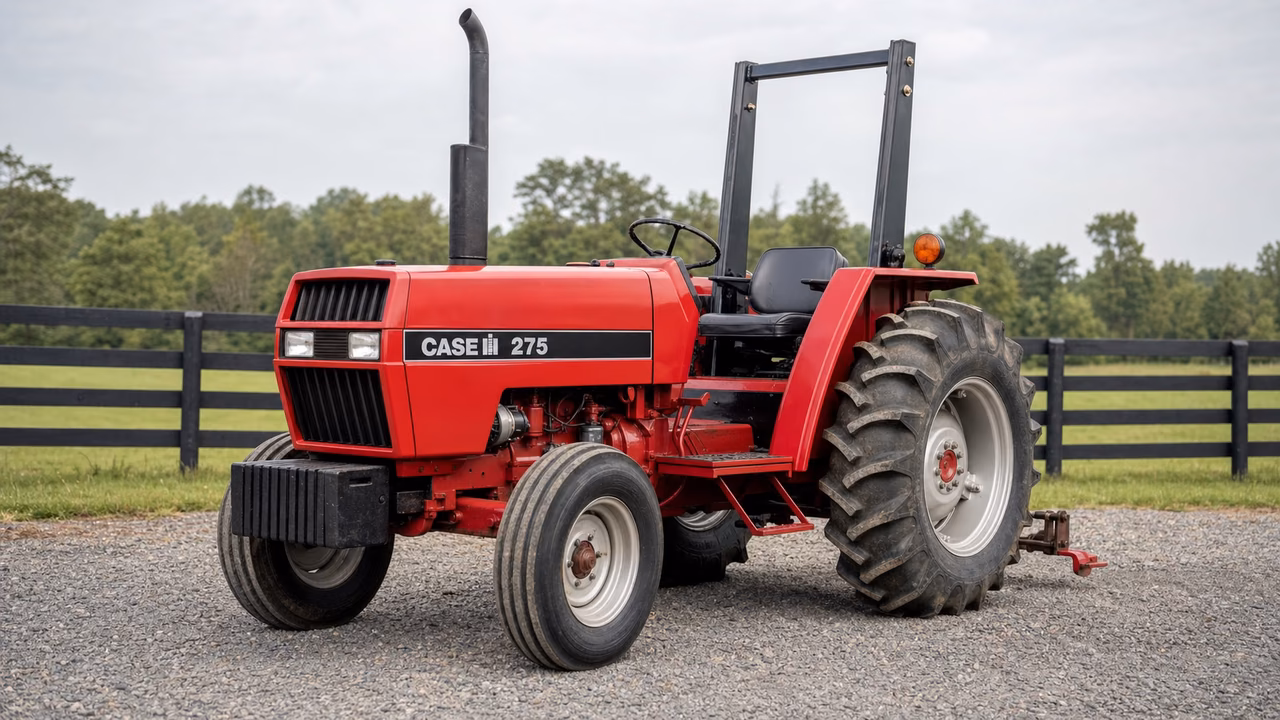

CaseIH 275 Overview
The CaseIH 275 was listed from 1986 to 1991 with a 91.3 ci (1.5 L) engine rated at 2,700 rpm and 31 hp (23.1 kW) net. It combines a 9-forward, 3-reverse synchromesh transmission with live rear PTO, a Category I rear hitch, and a 1,544 lb lift figure at 24 inches. Owners can also compare its open center hydraulic layout, 7.4 gal fuel capacity, and documented engine, coolant, and hydraulic service capacities.
CaseIH 275 Quick Answers
- YearsThe CaseIH 275 was listed from 1986 through 1991.
- EngineIts 91.3 ci (1.5 L) engine is rated at 2,700 rpm and 31 hp (23.1 kW) net.
- TransmissionIt uses a 9-forward, 3-reverse synchromesh transmission.
- Hitch liftThe Category I hitch is rated at 1,544 lb measured 24 inches behind the lift point.
Engine and Power
The engine section identifies the 91.3 ci displacement, 2,700 rpm rating, and 31 hp (23.1 kW) net figure.
Diesel engine
| Displacement | 91.3 ci 1.5 L |
|---|---|
| Rated Rpm | 2700 |
| Engine Oil Capacity | 4.4 qts 4.2 L |
| Coolant Capacity | 6.4 qts 6.1 L |
Manufacture years
Transmission
The documented synchromesh gearbox provides 9 forward and 3 reverse speeds.
9-speed synchromesh
| Type | synchromesh |
|---|---|
| Gears | 9 forward and 3 reverse |
PTO and Hitch
The 275 uses a live rear PTO listed as 540/1150 with a Category I hitch and a 1,544 lb lift figure at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Hydraulic details show an open center system with 7.3 gpm total flow and 0 to 2 valves.
Type
Capacity
Total flow
Valves
Fluids, Battery, and Service Facts
Reference capacities include 7.4 gal of fuel, 4.4 qts of engine oil, 6.4 qts of coolant, and 7.7 gal for hydraulics.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
