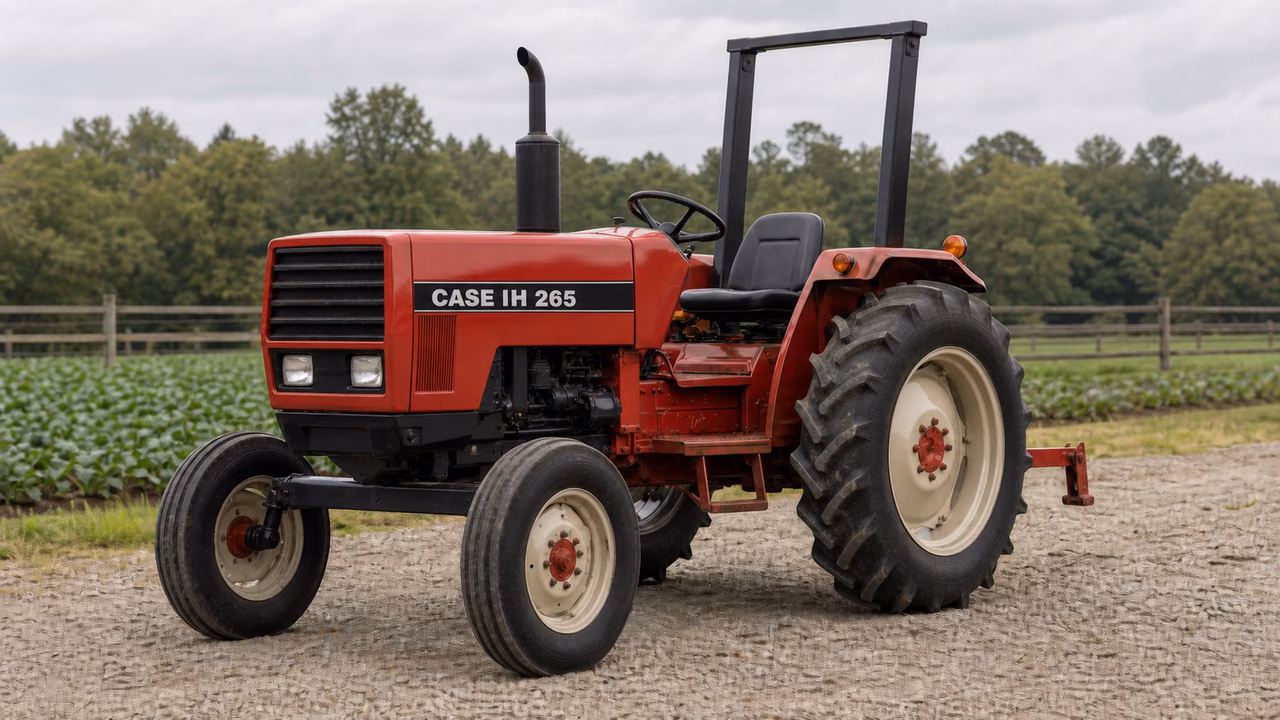

CaseIH 265 Overview
Built from 1987 to 1991, the CaseIH 265 is a compact utility tractor with a 78.7 ci (1.3 L) engine rated at 2,700 rpm and 27 hp (20.1 kW) net. Its 9-forward, 3-reverse constant mesh transmission, rear Category I hitch, and 840 lb lift rating are useful checkpoints when comparing implements or service details. Fuel, engine-oil, coolant, hydraulic, and transmission capacities are also gathered here for day-to-day owner reference.
CaseIH 265 Quick Answers
- YearsCaseIH listed the 265 from 1987 through 1991.
- EngineIt has a 78.7 ci (1.3 L) engine rated at 2,700 rpm and 27 hp (20.1 kW) net.
- TransmissionThe constant mesh transmission has 9 forward and 3 reverse gears.
- HitchThe rear Category I hitch is rated to lift 840 lb.
Engine and Power
Engine details cover the 78.7 ci displacement, 2,700 rpm rating, and 27 hp (20.1 kW) net figure.
Diesel engine
| Displacement | 78.7 ci 1.3 L |
|---|---|
| Rated Rpm | 2700 |
| Engine Oil Capacity | 4.4 qts 4.2 L |
| Coolant Capacity | 6.4 qts 6.1 L |
Manufacture years
Transmission
The driveline is documented as a 9-forward, 3-reverse constant mesh setup with its own fluid capacity.
9-speed constant mesh
| Type | constant mesh |
|---|---|
| Gears | 9 forward and 3 reverse |
| Transmission Oil Capacity | 36.8 qts 34.8 L |
PTO and Hitch
The rear PTO is transmission driven and listed as 540/1150, alongside the Category I hitch and 840 lb lift figure.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The open-center hydraulic system has 4.6 gpm pump flow, 0 or 1 valve, and a 9.2 gal system capacity.
Type
Capacity
Pump flow
Valves
Fluids, Battery, and Service Facts
Service figures include 5.3 gal of fuel, 4.4 qts of engine oil, and 6.4 qts of coolant.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
