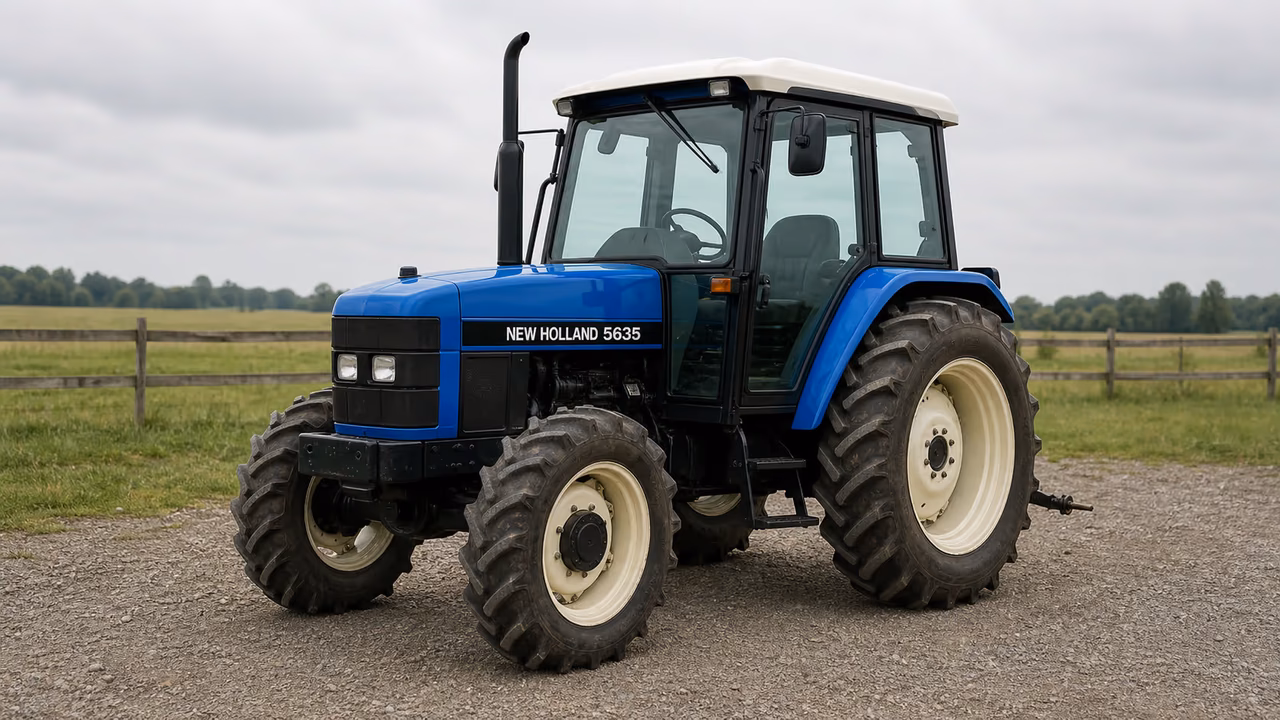

New Holland 5635 Overview
The New Holland 5635 was produced from 1996 through 1999. It uses a 238 ci (3.9 L) diesel engine rated at 75 hp and 2500 rpm, with an independent 540 PTO and II rear hitch. Open-center hydraulics provide 14.5 gpm pump flow, while the rear hitch is rated to lift 5722 lbs at 24 inches. Fuel capacity is 29 gal and listed weight ranges from 6393 to 7496 pounds. Transmission choices include Synchro, Synchro Command, and Dual Command versions.
New Holland 5635 Quick Answers
- YearsProduced from 1996 through 1999.
- Engine238 ci (3.9 L) diesel rated at 75 hp and 2500 rpm.
- Rear PTOIndependent PTO with a 540 speed.
- Hitch lift5722 lbs at 24 inches on the II rear hitch.
Engine and Power
The 238 ci diesel engine is rated at 75 hp and 2500 rpm.
Diesel engine
| Displacement | 238 ci 3.9 L |
|---|---|
| Rated Rpm | 2500 |
Manufacture years
Engine
Transmission
Transmission choices include Synchro, Synchro Command, and Dual Command versions.
Synchro
| Type | partially synchronized |
|---|---|
| Gears | 12 forward and 4 reverse |
Synchro Command
| Type | partiallly synchronized with sync shuttle |
|---|---|
| Gears | 12 forward and reverse |
Dual Command
| Type | partial power shift |
|---|---|
| Gears | 24 forward and 12 reverse |
PTO and Hitch
The independent 540 PTO works with the II rear hitch and its 5722 lb lift at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Open-center hydraulics provide 14.5 gpm pump flow.
Type
Pump flow
Fluids, Battery, and Service Facts
The fuel tank capacity is 29 gal.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
