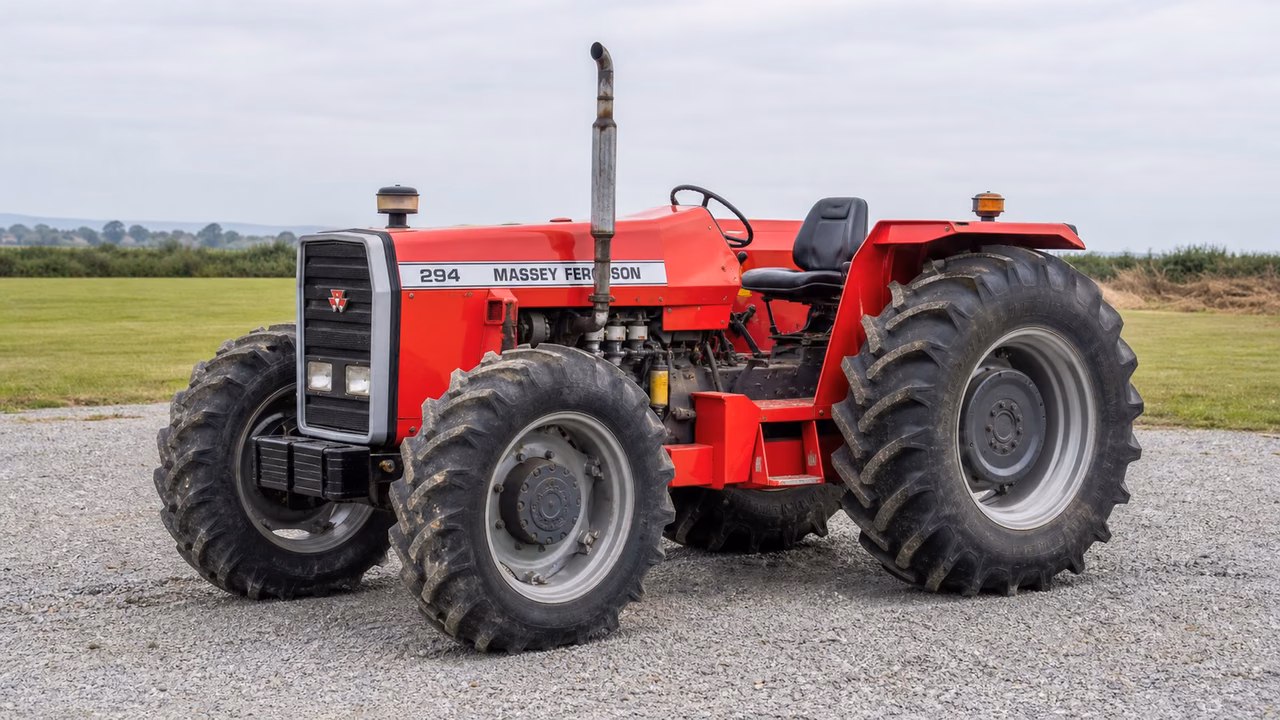

Massey Ferguson 294 Overview
The Massey Ferguson 294 was built from 1982-1987. Recorded details include engine displacement of 248 ci 4.1 L, gear count of 12 forward and 4 reverse, rear PTO speed of 540 (1.375), hydraulic system of open center, fuel capacity of 16 gal 60.6 L. Together, those figures give owners a practical starting point when comparing engine, driveline, PTO, hydraulic, capacity, and chassis details for this particular tractor. They also provide a useful reference for routine checks, repairs, service planning, and equipment matching.
Massey Ferguson 294 Quick Answers
- Production years1982-1987
- Engine displacement248 ci 4.1 L
- Transmission12 forward and 4 reverse
- Rear PTO540 (1.375)
Engine and Power
The listed engine details include engine displacement of 248 ci 4.1 L.
Diesel engine
| Displacement | 248 ci 4.1 L |
|---|---|
| Bore Stroke | 3.975x5.00 inches 101 x 127 mm |
| Rated Rpm | 2100 |
Manufacture years
Transmission
The transmission record notes gear count of 12 forward and 4 reverse.
12-speed synchromesh
| Type | synchromesh |
|---|---|
| Gears | 12 forward and 4 reverse |
| Clutch | 11-inch dual dry disc |
PTO and Hitch
PTO and hitch details include rear PTO speed of 540 (1.375).
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
The hydraulic record lists hydraulic system of open center.
Type
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
