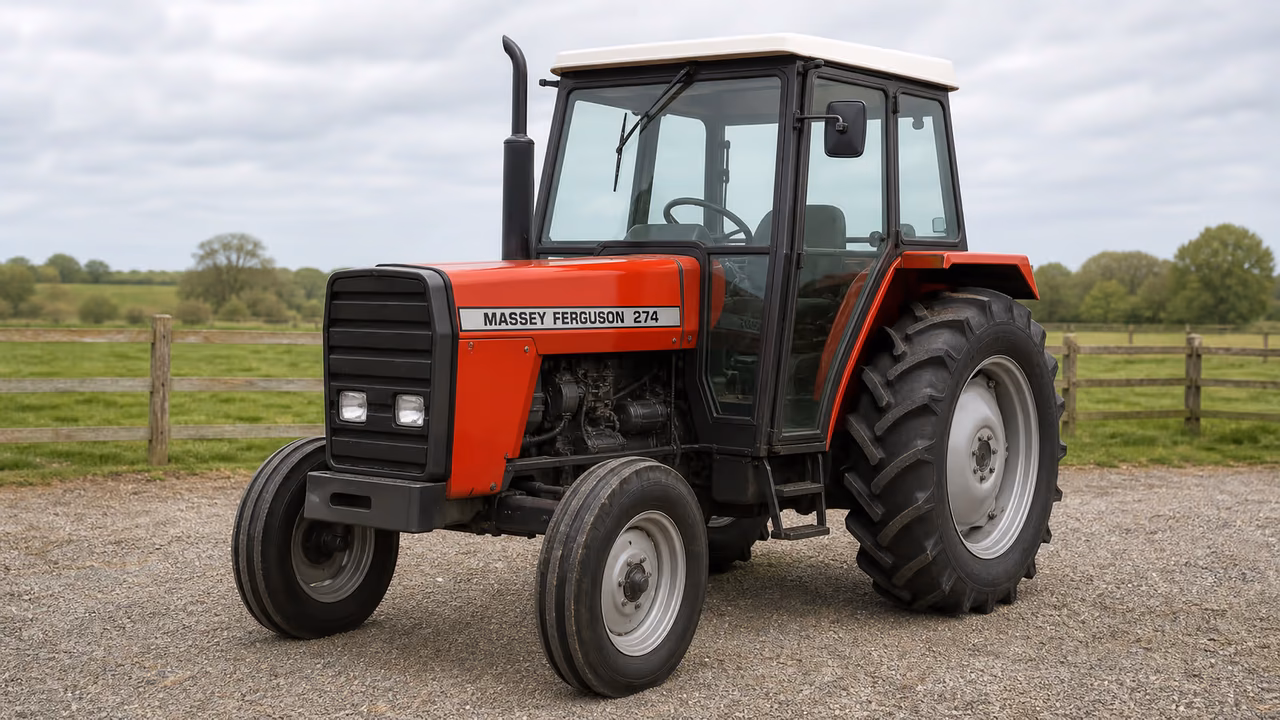

Massey Ferguson 274 Overview
The Massey Ferguson 274 was produced from 1982 through 1987. It uses a 236 ci (3.9 L) diesel engine rated at 2200 rpm and a 12-forward, 4-reverse synchromesh transmission. The tractor has an independent 540 PTO with a II rear hitch rated to lift 3670 lbs at 24 inches. Open-center hydraulics provide 9.4 gpm pump flow. Fuel capacity is 16 gal, while listed weight is 5985 lbs and wheelbase measures 87.5 inches.
Massey Ferguson 274 Quick Answers
- YearsProduced from 1982 through 1987.
- Engine236 ci (3.9 L) diesel rated at 2200 rpm.
- Transmission12 forward and 4 reverse synchromesh transmission.
- Hitch lift3670 lbs at 24 inches on the II rear hitch.
Engine and Power
The 236 ci diesel engine is rated at 2200 rpm.
Diesel engine
| Displacement | 236 ci 3.9 L |
|---|---|
| Rated Rpm | 2200 |
Manufacture years
Transmission
The synchromesh transmission provides 12 forward and 4 reverse gears.
12-speed synchromesh
| Type | synchromesh |
|---|---|
| Gears | 12 forward and 4 reverse |
PTO and Hitch
The independent 540 PTO works with the II rear hitch and its 3670 lb lift at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Open-center hydraulics provide 9.4 gpm pump flow.
Type
Pump flow
Fluids, Battery, and Service Facts
The fuel tank capacity is 16 gal.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
