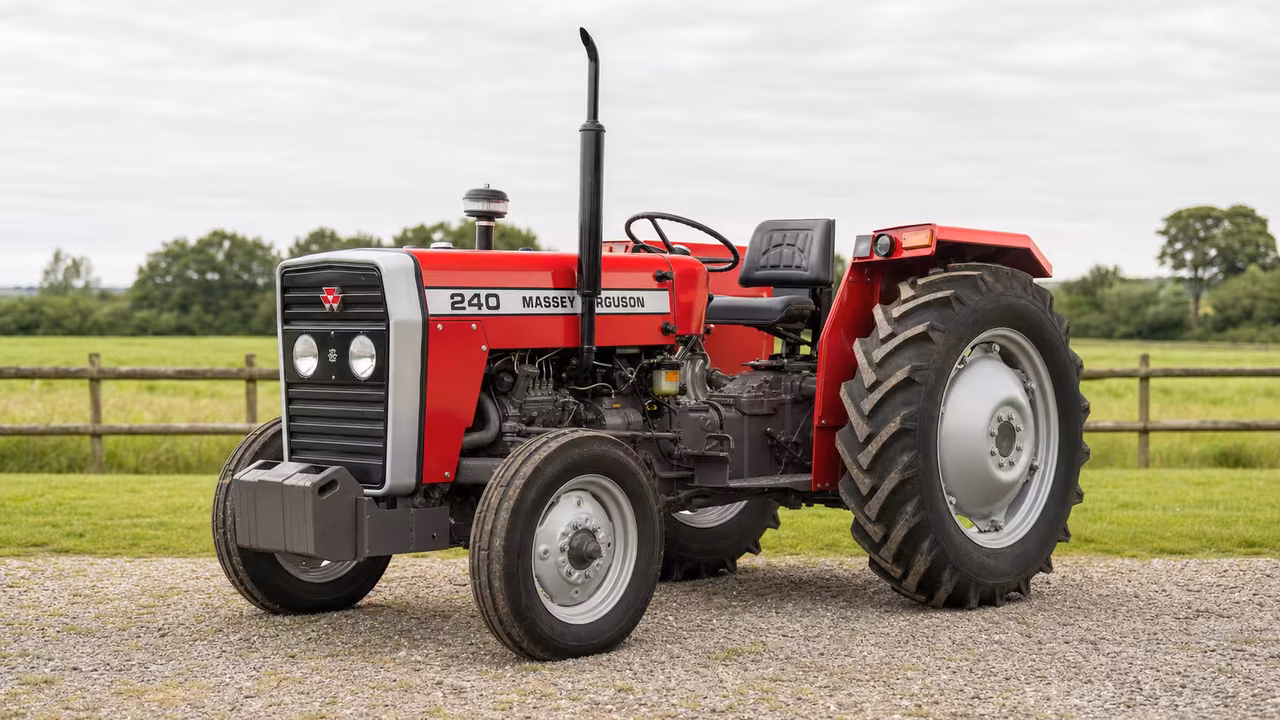

Massey Ferguson 240 Overview
The Massey Ferguson 240 is a compact diesel tractor built for small-to-mid-size farm work. It is commonly listed around the 46 hp class, with a 540 rear PTO and a simple hydraulic setup that keeps it useful for everyday chores.
Before buying parts or planning service, match the tractor to its serial range, market version, engine, transmission, and PTO setup. The operator manual, service manual, parts sources, Nebraska summary, and OECD report are the best cross-checks for a specific MF 240.
Massey Ferguson 240 Quick Answers
- Production yearsThe Massey Ferguson 240 was produced from 1980 through 1999.
- PowerEngine power is published at 46 hp (34.3 kW); drawbar performance and PTO figures vary by configuration and testing.
- EngineEngine displacement is 152 cu in (2.5 L).
- PTO and hitchRear PTO is 540 rpm; rear hitch is Category II/I; PTO can be live with a two-stage clutch.
- Service capacityHydraulic system capacity is 8.6 gal (32.6 L); coolant capacity is 10.4 qts (9.8 L).
Engine and Power
Engine and power figures center on a 46 hp diesel (152 cu in) with a 2000 rpm rated speed. The MF240 uses a dual dry-element air cleaner with optional ether pre-heating for cold starts.
Diesel engine
Perkins AD3.152 / diesel / 3-cylinder / liquid-cooled
| Displacement | 152 ci 2.5 L |
|---|---|
| Bore Stroke | 3.60x5.00 inches 91 x 127 mm |
| Power | 46 hp 34.3 kW |
| Air Cleaner | dual dry element |
| Pre Heating | ether (optional) |
| Rated Rpm | 2000 |
| Starter Volts | 12 |
| Coolant Capacity | 10.4 qts 9.8 L |
Manufacturer
Manufacture years
Engine
Tested PTO
Tested drawbar
Transmission
Transmission is a sliding-gear type with 8 forward and 2 reverse gears. Shifts are performed with the clutch engaged and the tractor at a stop, reflecting straightforward mechanical operation.
8-speed sliding gear
| Type | sliding gear |
|---|---|
| Gears | 8 forward and 2 reverse |
PTO and Hitch
Rear PTO is 540 rpm, with live rear PTO as a configuration possibility and a two-stage clutch action noted in typical setups.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Hydraulics are open-center with 2 control valves and a 9.5 gpm pump flow. System capacity is 8.6 gal, and the setup supports standard implement hydraulics for open-center systems.
Type
Capacity
Pump flow
Valves
Fluids, Battery, and Service Facts
Maintenance notes highlight hydraulic and coolant capacities (8.6 gal and 10.4 qts, respectively) and a 12V electrical system. Specific fluid types, filters, belts, and battery group details require a parts catalog or operator manual for exact applicability.
Fuel tank
Hydraulic system
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Weight
Width
Front tire
Rear tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial numbers are used to narrow model-year applicability; factory prefixes and regional builds require supporting documentation before applying year tables outside the stated range.
1983
1984
1985
1986
1986_late
1987
1988
1989
1990
1991
1992
1993
1994
1995
1996
1997
1998
location
Manuals and Documents
Use these links to check the operator manual, service manual, parts catalog, or test report that matches the tractor's serial range and equipment.
When a source covers more than one model or variant, confirm the fuel type, transmission, PTO setup, and serial range before using it for parts or service.
- Massey Ferguson Tractors-Agricultural - Wheeled 240 / 243 / 253 / 263 Tractors (s/n B27001Operator manual covering MF 240 family (240, 243, 253, 263); applicability includes MF240 models.Open source
- Massey Harris MF230 MF240 MF250 MF270 MF290 MF298 Service ManualService manual covering MF230/240/250/270/290/298; MF240 included.Open source
- Massey Ferguson Tractor 240 Parts - Abilene MachineParts catalog page for MF240 tractors; provides OEM part reference context.Open source
- Massey Ferguson 240 Tractor Parts - Anglo AgripartsUK/IE parts catalog for MF240; broad parts categories.Open source
- Massey Ferguson 240 Parts - Yesterday's TractorsParts catalog page listing MF240 part categories and listings.Open source
- Massey Ferguson 240 - TVH PartsFull MF240 parts catalog reference page from a global parts supplier.Open source
- Nebraska Summary 001: Massey Ferguson 240 Diesel 8 SpeedNebraska Tractor Test (OECD Code) summary for Massey Ferguson 240 Diesel 8 Speed.Open source
- Massey-Ferguson 240 OECD Test Report 688 (English), 1980OECD test report for MF240; includes test results under OECD Code 2.Open source
Parts Checks Before Ordering
Do not order Massey Ferguson 240 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, and PTO setup before selecting service parts.
Filters, fluids, belts, electrical parts, clutch and PTO parts, and hydraulic parts can vary by configuration. Exact part numbers need a parts catalog, manual, or trusted supplier source before they become recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
