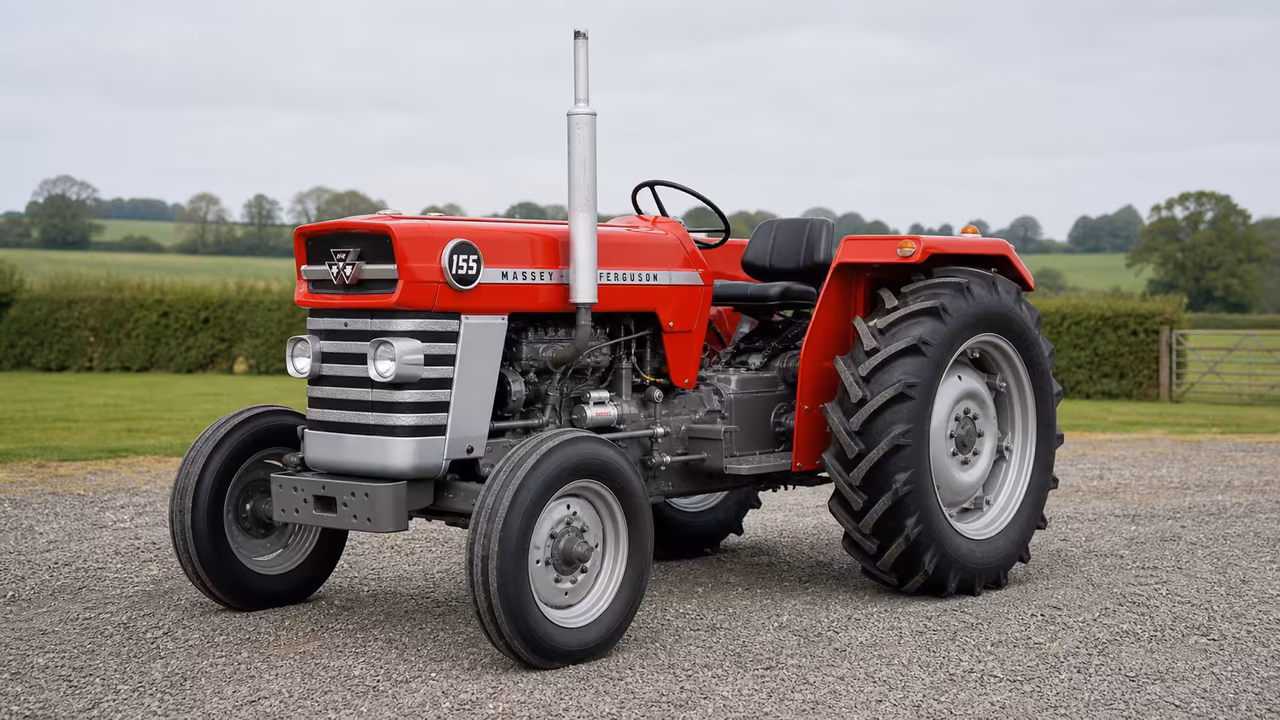

Massey Ferguson 155 Overview
Massey Ferguson 155 was built from 1970-1976. The published engine record lists a 203 ci 3.3 L | 152 ci 2.5 L engine with a published 54 hp 40.3 kW | 45 hp 33.6 kW rating at 2000 rpm. Transmission details differ by configuration; the individual options are shown in the transmission section.
The rear PTO is listed as live rear PTO, 540 (1.375) PTO, and 540@1700 engine rpm for the published PTO setting. The rear hitch is listed as a Category II/I rear hitch, 3,160 lbs 1433 kg listed lift, and draft and position control. Published capacities include 18 gal 68.1 L fuel capacity, 8.5 qts 8.0 L | 6.8 qts 6.4 L engine oil capacity, 12 qts 11.4 L | 9 qts 8.5 L coolant capacity, 8 gal 30.3 L hydraulic-system capacity, and 32 qts 30.3 L transmission-oil capacity. Published weight listings include 5305 to 7270 pounds.
Massey Ferguson 155 Quick Answers
- When was the Massey Ferguson 155 built?Massey Ferguson 155 is listed from 1970-1976. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a Massey Ferguson 155?The published engine record lists a 203 ci 3.3 L | 152 ci 2.5 L engine with a published 54 hp 40.3 kW | 45 hp 33.6 kW rating at 2000 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the Massey Ferguson 155 use?Published records identify more than one transmission configuration. Compare the individual transmission options, the full ID tag, and the installed drivetrain before using repair or parts information.
- What PTO is listed for the Massey Ferguson 155?The rear PTO is listed as live rear PTO, 540 (1.375) PTO, and 540@1700 engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- Which capacity and chassis details matter?Published capacities include 18 gal 68.1 L fuel capacity, 8.5 qts 8.0 L | 6.8 qts 6.4 L engine oil capacity, 12 qts 11.4 L | 9 qts 8.5 L coolant capacity, 8 gal 30.3 L hydraulic-system capacity, and 32 qts 30.3 L transmission-oil capacity. The rear hitch is listed as a Category II/I rear hitch, 3,160 lbs 1433 kg listed lift, and draft and position control. Published weight listings include 5305 to 7270 pounds.
- Where can I start with Massey Ferguson 155 documents?Start with the linked official brand route, then match the model, serial number, and installed equipment before relying on a manual, diagram, or parts information.
Engine and Power
The published engine record lists a 203 ci 3.3 L | 152 ci 2.5 L engine with a published 54 hp 40.3 kW | 45 hp 33.6 kW rating at 2000 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
Perkins AD4.203 / diesel / 4-cylinder / liquid-cooled
| Displacement | 203 ci 3.3 L |
|---|---|
| Bore Stroke | 3.58x5.00 inches 91 x 127 mm |
| Power | 54 hp 40.3 kW |
| Fuel System | direct injection |
| Air Cleaner | dry element |
| Compression | 17.4:1 |
| Rated Rpm | 2000 |
| Torque | 141 lb-ft 191.2 Nm |
| Torque Rpm | 1200 |
| Starter Volts | 12 |
| Engine Oil Capacity | 8.5 qts 8.0 L |
| Coolant Capacity | 12 qts 11.4 L |
Diesel engine
Perkins A3.152 / diesel / 3-cylinder / liquid-cooled
| Displacement | 152 ci 2.5 L |
|---|---|
| Bore Stroke | 3.58x5.00 inches 91 x 127 mm |
| Power | 45 hp 33.6 kW |
| Fuel System | indirect injection |
| Compression | 17.4:1 |
| Rated Rpm | 2000 |
| Starter Volts | 12 |
| Engine Oil Capacity | 6.8 qts 6.4 L |
| Coolant Capacity | 9 qts 8.5 L |
Manufacture years
Transmission
Published records identify more than one transmission configuration. Compare the individual options with the tractor's full ID tag and installed drivetrain before treating a repair or parts detail as a direct match.
8-speed transmission
| Gears | 8 forward and 2 reverse |
|---|---|
| Transmission Oil Capacity | 32 qts 30.3 L |
Multi-Power
| Name | Multi-Power |
|---|---|
| Gears | 12 forward and 4 reverse |
| Transmission Oil Capacity | 32 qts 30.3 L |
Type
PTO and Hitch
The rear PTO is listed as live rear PTO, 540 (1.375) PTO, and 540@1700 engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Rear lift
Hydraulics
Hydraulic facts are shown only where documented.
Capacity
Fluids, Battery, and Service Facts
Published capacities include 18 gal 68.1 L fuel capacity, 8.5 qts 8.0 L | 6.8 qts 6.4 L engine oil capacity, 12 qts 11.4 L | 9 qts 8.5 L coolant capacity, 8 gal 30.3 L hydraulic-system capacity, and 32 qts 30.3 L transmission-oil capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
Ag rear
Manuals and Documents
AGCO Parts Books is a useful official starting point for catalog families and assemblies. Use the model, serial number, and installed equipment before relying on a diagram or parts number.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Parts catalog
- AGCO Parts Booksparts matching
Official AGCO parts-catalog portal. Search with the model and serial number before treating a diagram or number as a direct match.
Open AGCO Parts Books
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual Massey Ferguson 155. Verify the tag and the actual tractor before ordering.
- Legacy Ford parts supportOfficial New Holland route for legacy Ford tractors. Match the model, serial number, and installed equipment before ordering.Open Ford parts support
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
