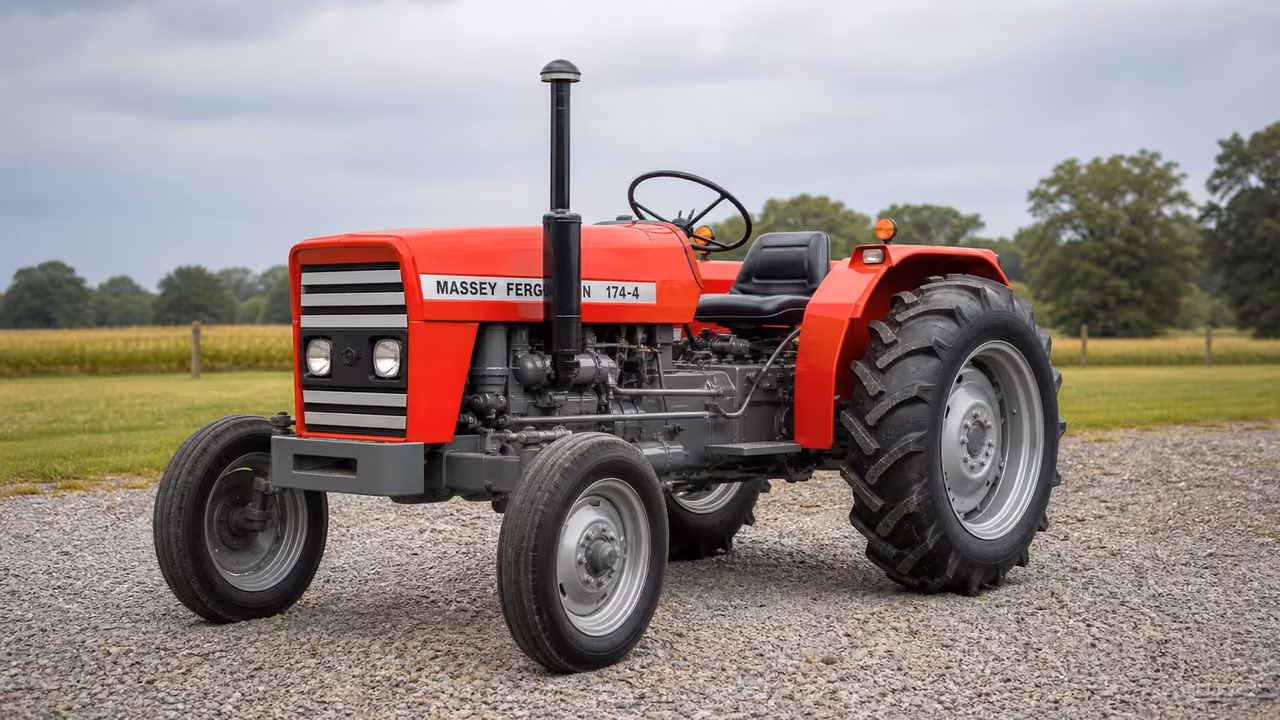

Massey Ferguson 174-4 Overview
The Massey Ferguson 174-4 was built from 1973 to 1983. Its 3.9 L (235.8 ci) engine is rated at 65 hp (48.5 kW), uses direct injection, and carries 16 gal (60.6 L) of fuel. Listed dimensions include a 5,490 lb (2,490 kg) weight and an 85.8-inch (217 cm) wheelbase.
A partially synchronized transmission provides 12 forward and 4 reverse gears. The independent 540 PTO operates at 1,944 engine rpm. Open-center hydraulics are listed with 7.4 gpm (28.0 lpm) pump flow and 2,418 psi (166.7 bar) pressure.
Quick Answers
- EngineA 65 hp (48.5 kW), 3.9 L (235.8 ci) direct-injection engine.
- TransmissionPartially synchronized, with 12 forward and 4 reverse gears.
- PTOAn independent 540 PTO operating at 1,944 engine rpm.
- HydraulicsOpen-center hydraulics with 7.4 gpm (28.0 lpm) pump flow.
Engine and Power
The 3.9 L (235.8 ci) engine is rated at 65 hp (48.5 kW) and uses direct injection.
Diesel engine
| Displacement | 235.8 ci 3.9 L |
|---|---|
| Power | 65 hp 48.5 kW |
| Fuel System | direct injection |
Manufacture years
Transmission
This partially synchronized transmission offers 12 forward and 4 reverse gears.
12-speed partially synchronized
| Type | partially synchronized |
|---|---|
| Gears | 12 forward and 4 reverse |
PTO and Hitch
The independent rear PTO is 540 (1.375) and operates at 1,944 engine rpm.
Rear PTO
Rear PTO type
Engine RPM
Hydraulics
Open-center hydraulics are listed with 7.4 gpm (28.0 lpm) pump flow and 2,418 psi (166.7 bar) pressure.
Type
Pressure
Pump flow
Tires and Dimensions
Agricultural tire sizes are 9.5/9-24 front and 14.9/13-30 rear.
Wheelbase
Weight
Front tire
Rear tire
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
