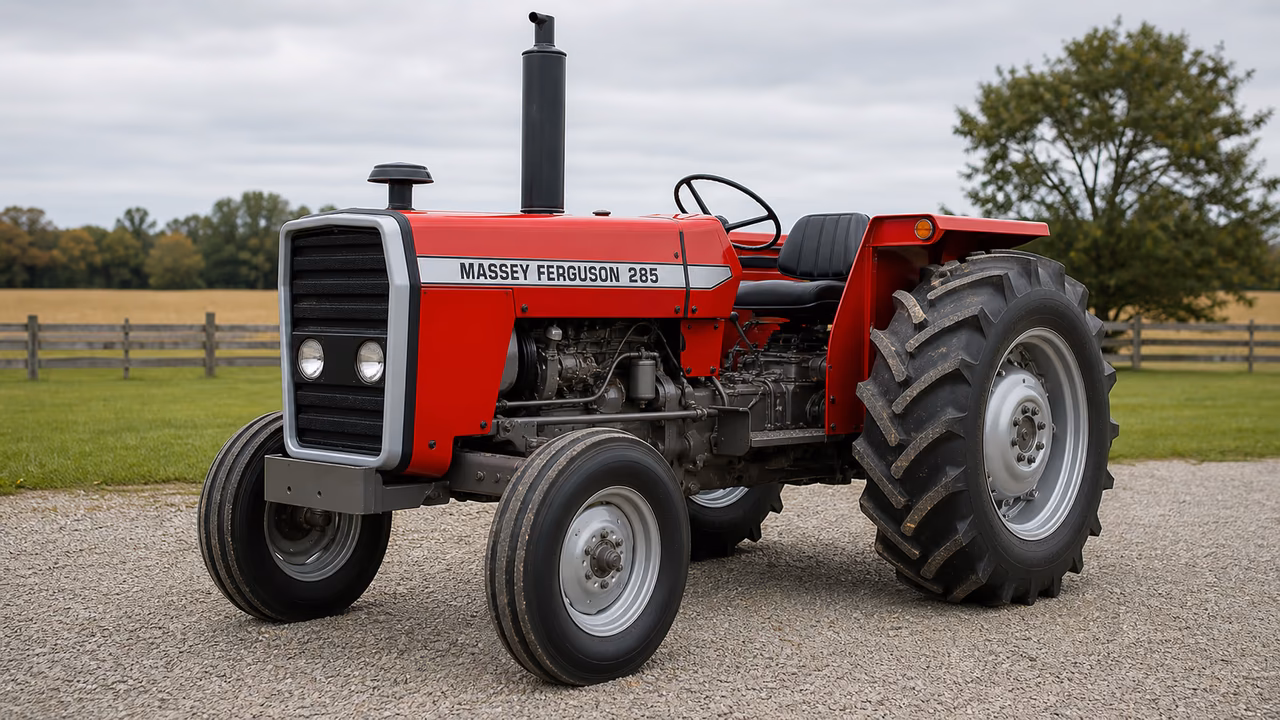

Massey Ferguson 285 Overview
The Massey Ferguson 285 was produced from 1974 through 1982. Its engine is listed at 2,000 rpm, and the tractor has a Category II rear hitch with 4,400-lb lift. The independent rear PTO is 540 (1.375) at 1,730 engine rpm. Hydraulic pressure is listed at 2,300 psi, with 7 gpm hitch pump flow and 5.6 gpm steering flow. Fuel capacity is 23 gal, hydraulic capacity is 8.5 gal, and listed weight is 7,650 pounds. The instrument panel is the listed serial-number location.
Massey Ferguson 285 Quick Answers
- Production years1974-1982
- Engine speed2000 rpm
- Rear PTOIndependent 540 (1.375) at 1730 engine rpm
- Fuel capacity23 gal (87.1 L)
Engine and Power
The engine is listed at a rated speed of 2,000 rpm and uses an oil-bath air cleaner.
Diesel engine
| Rated Rpm | 2000 |
|---|---|
| Engine Oil Capacity | 10 qts 9.5 L |
| Coolant Capacity | 16.5 qts 15.6 L |
Diesel engine
| Air Cleaner | oil bath |
|---|---|
| Rated Rpm | 2000 |
| Coolant Capacity | 16.5 qts 15.6 L |
Manufacture years
PTO and Hitch
The independent rear PTO is 540 (1.375) at 1,730 engine rpm, with a Category II rear hitch listed at 4,400 lb lift.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Rear lift
Hydraulics
Hydraulic pressure is listed at 2,300 psi, with 7 gpm hitch pump flow and 5.6 gpm steering flow.
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Listed service capacities include 10 qts of engine oil, 16.5 qts of coolant, 23 gal of fuel, and 8.5 gal for hydraulics.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
