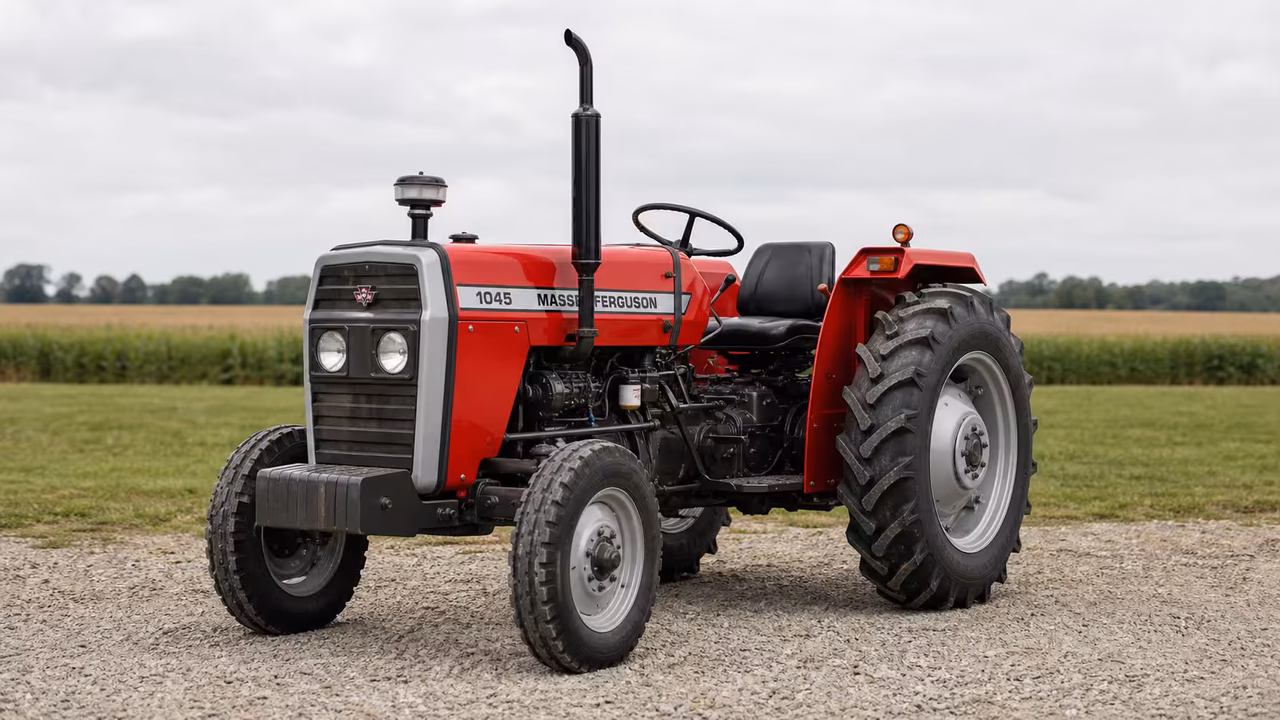

Massey Ferguson 1045 Overview
Massey Ferguson 1045 was built from 1986-1990. The published engine record lists a 121.7 ci 2.0 L engine with a published 35 hp 26.1 kW rating at 2500 rpm. The published drivetrain is listed as gear transmission and 9 forward and 3 reverse gears.
The rear PTO is listed as live rear PTO and 540 (1.375) PTO. Hydraulic specifications list open center hydraulics and 5.7 gpm 21.6 lpm flow. The rear hitch is listed as a Category I rear hitch and 2524 lbs 1144 kg listed lift. Published capacities include 7.9 gal 29.9 L fuel capacity, 5.3 qts 5.0 L engine oil capacity, 8.5 qts 8.0 L coolant capacity, and 46.5 qts 44.0 L transmission-oil capacity. Published weight listings include 3530 lbs (2WD) 1601 kg.
Massey Ferguson 1045 Quick Answers
- When was the Massey Ferguson 1045 built?Massey Ferguson 1045 is listed from 1986-1990. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a Massey Ferguson 1045?The published engine record lists a 121.7 ci 2.0 L engine with a published 35 hp 26.1 kW rating at 2500 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the Massey Ferguson 1045 use?The published drivetrain is listed as gear transmission and 9 forward and 3 reverse gears. Identify the installed transmission and serial number before using repair or parts information.
- What PTO is listed for the Massey Ferguson 1045?The rear PTO is listed as live rear PTO and 540 (1.375) PTO. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list open center hydraulics and 5.7 gpm 21.6 lpm flow. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 7.9 gal 29.9 L fuel capacity, 5.3 qts 5.0 L engine oil capacity, 8.5 qts 8.0 L coolant capacity, and 46.5 qts 44.0 L transmission-oil capacity. The rear hitch is listed as a Category I rear hitch and 2524 lbs 1144 kg listed lift. Published weight listings include 3530 lbs (2WD) 1601 kg.
Engine and Power
The published engine record lists a 121.7 ci 2.0 L engine with a published 35 hp 26.1 kW rating at 2500 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
Toyosha / diesel / 3-cylinder / liquid-cooled
| Displacement | 121.7 ci 2.0 L |
|---|---|
| Bore Stroke | 3.62x3.94 inches 92 x 100 mm |
| Power | 35 hp 26.1 kW |
| Air Cleaner | dry |
| Rated Rpm | 2500 |
| Starter Volts | 12 |
| Engine Oil Capacity | 5.3 qts 5.0 L |
| Coolant Capacity | 8.5 qts 8.0 L |
Manufacture years
Transmission
The published drivetrain is listed as gear transmission and 9 forward and 3 reverse gears. Match the installed transmission and serial number before treating a repair or parts detail as a direct match.
9-speed gear
| Type | gear |
|---|---|
| Gears | 9 forward and 3 reverse |
| Clutch | 240mm dry disc |
| Transmission Oil Capacity | 46.5 qts 44.0 L |
PTO and Hitch
The rear PTO is listed as live rear PTO and 540 (1.375) PTO. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Hydraulic specifications list open center hydraulics and 5.7 gpm 21.6 lpm flow. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Pump flow
Fluids, Battery, and Service Facts
Published capacities include 7.9 gal 29.9 L fuel capacity, 5.3 qts 5.0 L engine oil capacity, 8.5 qts 8.0 L coolant capacity, and 46.5 qts 44.0 L transmission-oil capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Electrical
Electrical rows are included when documented.
Ground
Battery volts
Serial Number Lookup
Serial rows are shown where documented.
Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.
1986
- 00100 (2WD)
- 40100 (4WD)
1987
- 00234 (2WD)
- 40275 (4WD)
1988
- -----
- 40566 (4WD)
1989
- -----
- 40757 (4WD)
1990
- 00334 (2WD)
- 41144 (4WD)
1991
- 00367 (2WD)
- 41531 (4WD)
1992
- 00399 (2WD)
- 41916 (4WD)
Manuals and Documents
AGCO Parts Books is a useful official starting point for catalog families and assemblies. Use the model, serial number, and installed equipment before relying on a diagram or parts number.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Parts catalog
- AGCO Parts Booksparts matching
Official AGCO parts-catalog portal. Search with the model and serial number before treating a diagram or number as a direct match.
Open AGCO Parts Books
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual Massey Ferguson 1045. Verify the tag and the actual tractor before ordering.
- Legacy Ford parts supportOfficial New Holland route for legacy Ford tractors. Match the model, serial number, and installed equipment before ordering.Open Ford parts support
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
