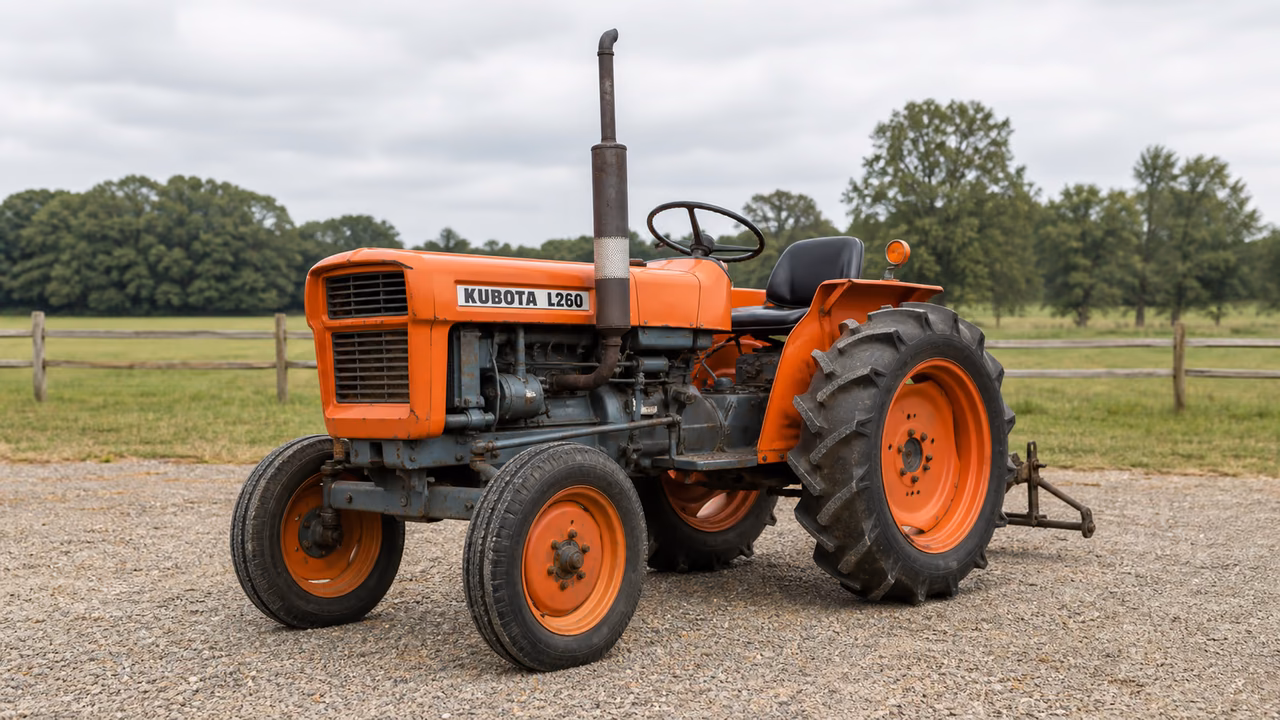

Kubota L260 Overview
The Kubota L260 was produced from 1970 through 1976. Its 77.6 ci (1.3 L) engine is listed at 26 hp and 2,600 rpm, with glow plugs for pre-heating. The tractor has a gear transmission with 8 forward and 2 reverse gears, a Category I rear hitch with 2,640-lb lift at the ends, and a 540 rear PTO. The open-center hydraulic system is listed at 1,990 psi with 4.7 gpm total flow. Fuel capacity is 8 gal, and listed weight is 2,640 pounds.
Kubota L260 Quick Answers
- Production years1970-1976
- Engine77.6 ci (1.3 L), 26 engine hp at 2600 rpm
- TransmissionGear, 8 forward and 2 reverse
- Fuel capacity8 gal (30.3 L)
Engine and Power
The 77.6 ci engine is listed at 26 hp and 2,600 rpm, with glow plugs for pre-heating.
Diesel engine
| Displacement | 77.6 ci 1.3 L |
|---|---|
| Power | 26 hp 19.4 kW |
| Pre Heating | glow plugs |
| Rated Rpm | 2600 |
Manufacture years
Transmission
The gear transmission is listed with 8 forward and 2 reverse gears.
8-speed gear
| Type | gear |
|---|---|
| Gears | 8 forward and 2 reverse |
PTO and Hitch
The rear PTO is listed as 540 (1.375), with a Category I rear hitch listed at 2,640 lb lift at the ends.
Rear PTO type
Rear hitch
Hydraulics
The open-center hydraulic system is listed at 1,990 psi with 4.7 gpm total flow.
Type
Pressure
Total flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
