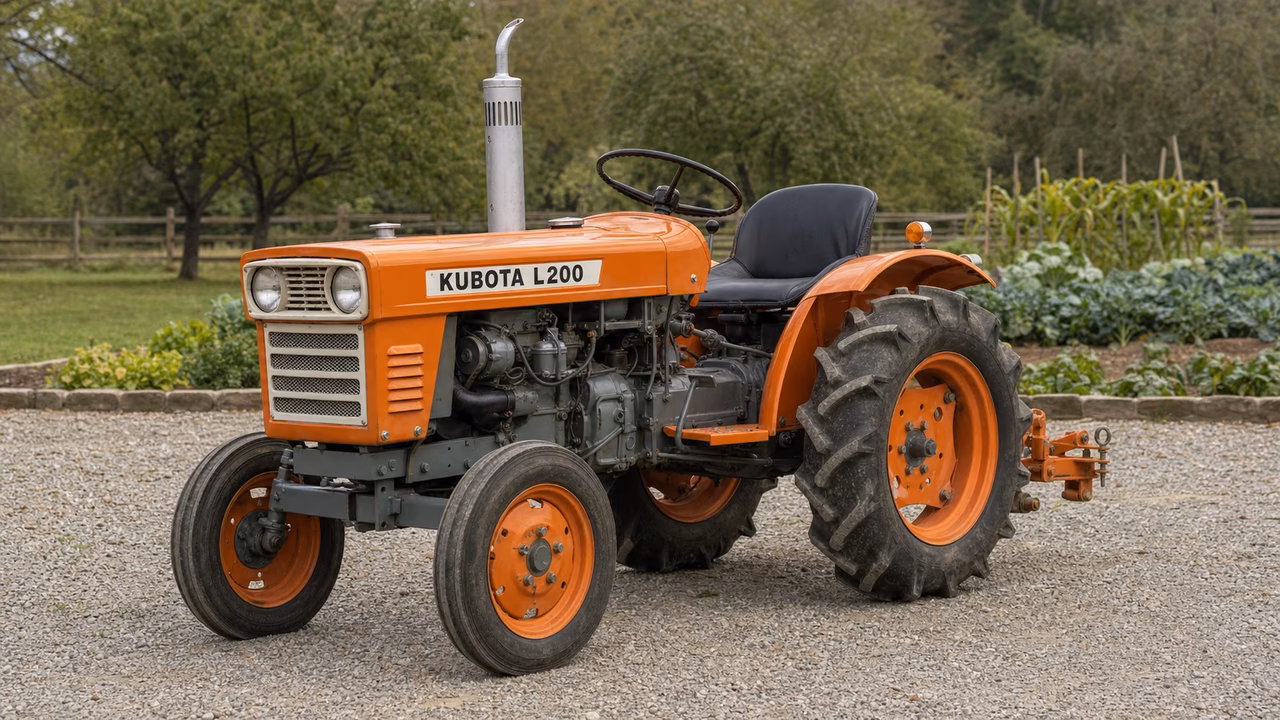

Kubota L200 Overview
The Kubota L200 was produced from 1972 to 1973 with a 65.3 ci (1.1 L) engine rated at 21 hp (15.7 kW) and 2,700 rpm. It uses a gear transmission with 6 forward and 2 reverse speeds and a dry-disc clutch. The rear PTO is listed at 540 with a Type I rear hitch, while the open center hydraulic system has a 1.8 gal capacity. The tractor is listed at 2,000 lb, with engine, coolant, and transmission fluid figures included.
Kubota L200 Quick Answers
- YearsKubota produced the L200 from 1972 through 1973.
- EngineIts 65.3 ci (1.1 L) engine is rated at 21 hp (15.7 kW) and 2,700 rpm.
- TransmissionThe gear transmission has 6 forward and 2 reverse speeds with a dry-disc clutch.
- PTOThe rear PTO is listed at 540 with a Type I rear hitch.
Engine and Power
The engine record lists 65.3 ci displacement, 21 hp (15.7 kW), and 2,700 rpm.
Diesel engine
| Displacement | 65.3 ci 1.1 L |
|---|---|
| Rated Rpm | 2700 |
| Coolant Capacity | 7.9 qts 7.5 L |
Manufacture years
Engine
Transmission
Transmission data identifies a gear drive with 6 forward and 2 reverse speeds, a dry-disc clutch, and 12.7 qts of oil.
6-speed gear
| Type | gear |
|---|---|
| Gears | 6 forward and 2 reverse |
| Clutch | dry disc |
| Transmission Oil Capacity | 12.7 qts 12.0 L |
PTO and Hitch
The L200 is listed with a 540 rear PTO and a Type I hitch.
Rear PTO type
Rear hitch
Hydraulics
The hydraulic system is documented as open center with a 1.8 gal capacity.
Type
Capacity
Fluids, Battery, and Service Facts
Reference capacities include 5.3 qts of engine oil and 7.9 qts of coolant.
Engine oil capacity
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
