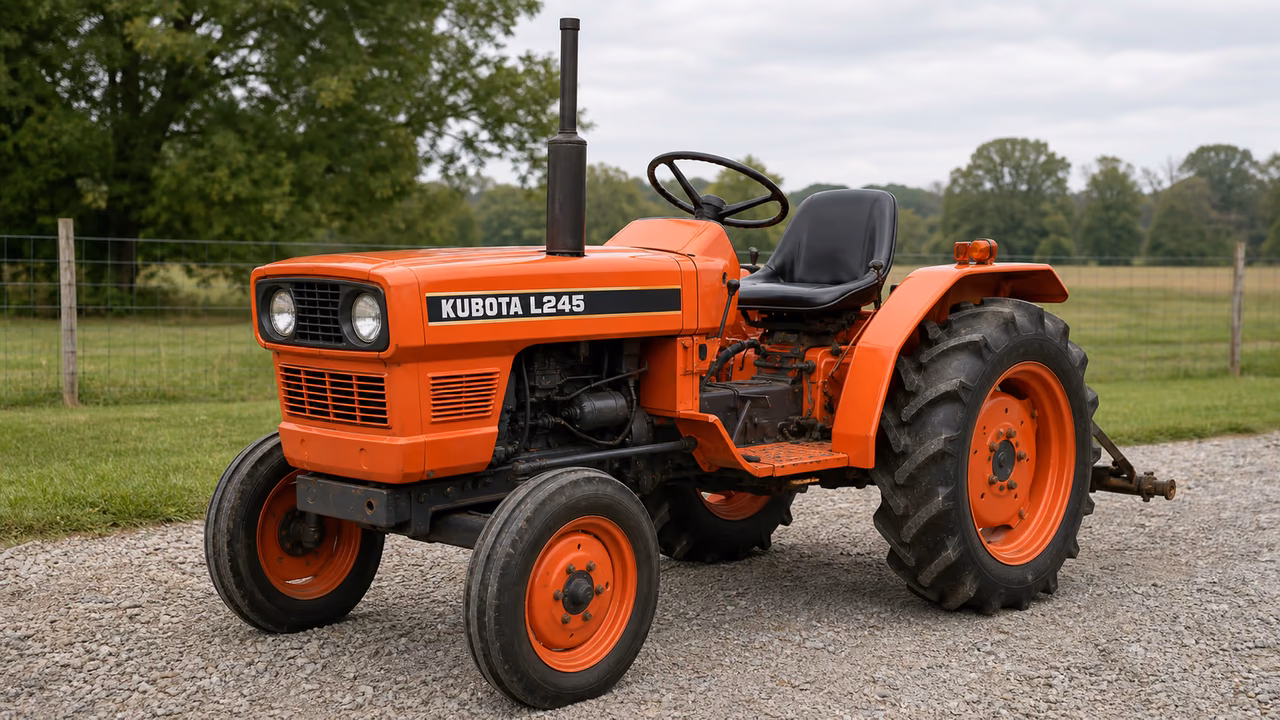

Kubota L245 Overview
Built from 1976 through 1985, the Kubota L245 uses a 68.3 ci (1.1 L) engine rated at 25 hp and 2800 rpm. Its independent rear PTO offers 540/700/1000 speeds, while the Category I rear hitch has 1,540-lb listed lift at the ends. The open-center hydraulic system is listed at 2000 psi and 3.7 gpm total flow. Fuel capacity is 6 gal, and listed weight runs from 1,825 to 2,382 pounds.
Kubota L245 Quick Answers
- Production years1976-1985
- Engine68.3 ci (1.1 L) engine, 25 hp at 2800 rpm
- Rear PTOIndependent 540/700/1000 PTO
- Fuel capacity6 gal (22.7 L)
Engine and Power
The 68.3 ci engine is rated at 25 hp and 2800 rpm, using a paper-element air cleaner.
Diesel engine
| Displacement | 68.3 ci 1.1 L |
|---|---|
| Air Cleaner | paper element |
| Rated Rpm | 2800 |
| Engine Oil Capacity | 5.2 qts 4.9 L |
Manufacture years
Engine
PTO and Hitch
The rear PTO is independent and listed with 540/700/1000 speeds.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
The open-center hydraulic system is listed at 2000 psi with 3.7 gpm total flow.
Type
Capacity
Pressure
Total flow
Fluids, Battery, and Service Facts
Listed service capacities include 5.2 qts of engine oil, 6 gal of fuel, and 8.7 gal for the hydraulic system.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
