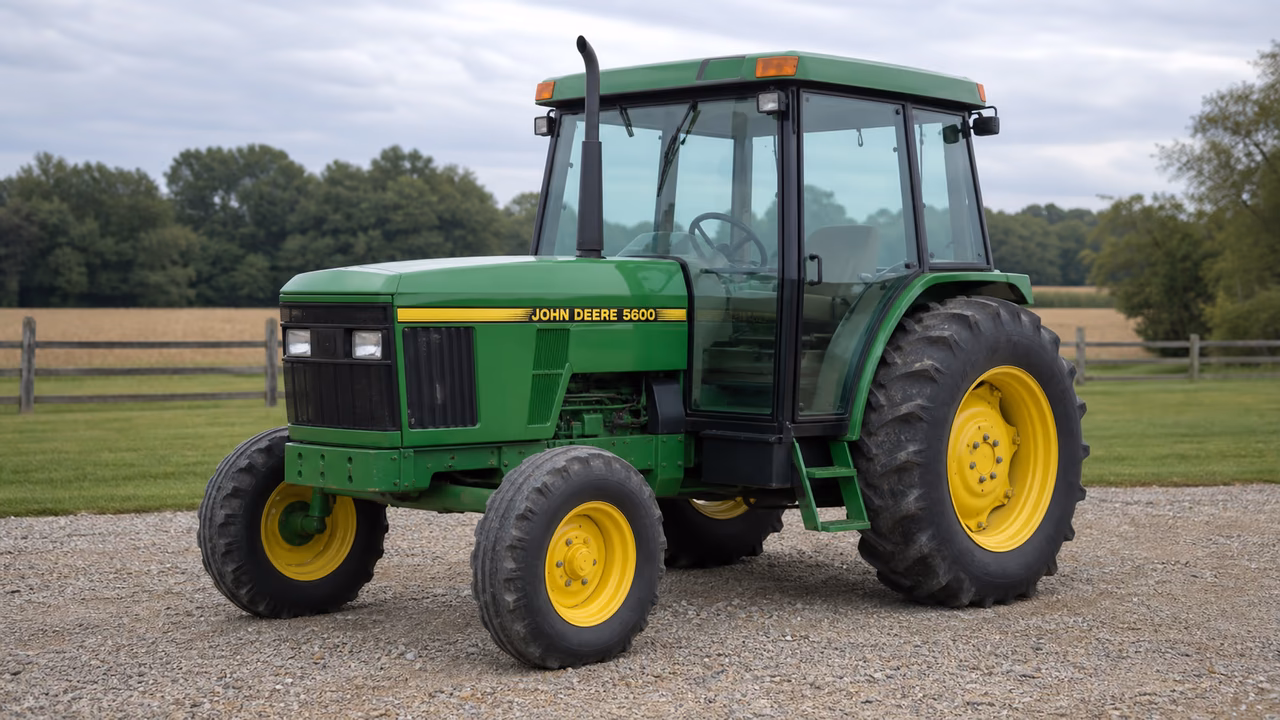

John Deere 5600 Overview
The John Deere 5600 was produced from 1996 through 1999. Its 239 ci (3.9 L) engine is listed at 75 hp and 2,400 rpm. The tractor has a partially synchronized John Deere Top-Shaft Synchronized transmission with 9 forward and 3 reverse gears. It uses a Category II rear hitch with 3,968-lb lift at 24 inches, an open-center hydraulic system with 10.6 gpm pump flow, and an independent 540 rear PTO. Fuel capacity is 26.7 gal, and listed weight ranges from 7341 to 7760 pounds.
John Deere 5600 Quick Answers
- Production years1996-1999
- Engine239 ci (3.9 L), 75 engine hp at 2400 rpm
- TransmissionTop-Shaft Synchronized, 9 forward and 3 reverse
- Fuel capacity26.7 gal (101.1 L)
Engine and Power
The 239 ci engine is listed at 75 hp and 2,400 rpm.
Diesel engine
| Displacement | 239 ci 3.9 L |
|---|---|
| Power | 75 hp 55.9 kW |
| Rated Rpm | 2400 |
| Engine Oil Capacity | 12.7 qts 12.0 L |
| Coolant Capacity | 15.9 qts 15.0 L |
Manufacture years
Transmission
The John Deere Top-Shaft Synchronized transmission is partially synchronized with 9 forward and 3 reverse gears.
John Deere Top-Shaft Synchronized (TSS)
| Name | John Deere Top-Shaft Synchronized (TSS) |
|---|---|
| Type | partially synchronized |
| Gears | 9 forward and 3 reverse |
| Transmission Oil Capacity | 42.3 qts 40.0 L |
PTO and Hitch
The rear PTO is independent at 540 (1.375), with a Category II rear hitch listed at 3,968 lb lift at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Fluids, Battery, and Service Facts
Listed service capacities include 12.7 qts of engine oil, 15.9 qts of coolant, 26.7 gal of fuel, and 42.3 qts of transmission oil.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
