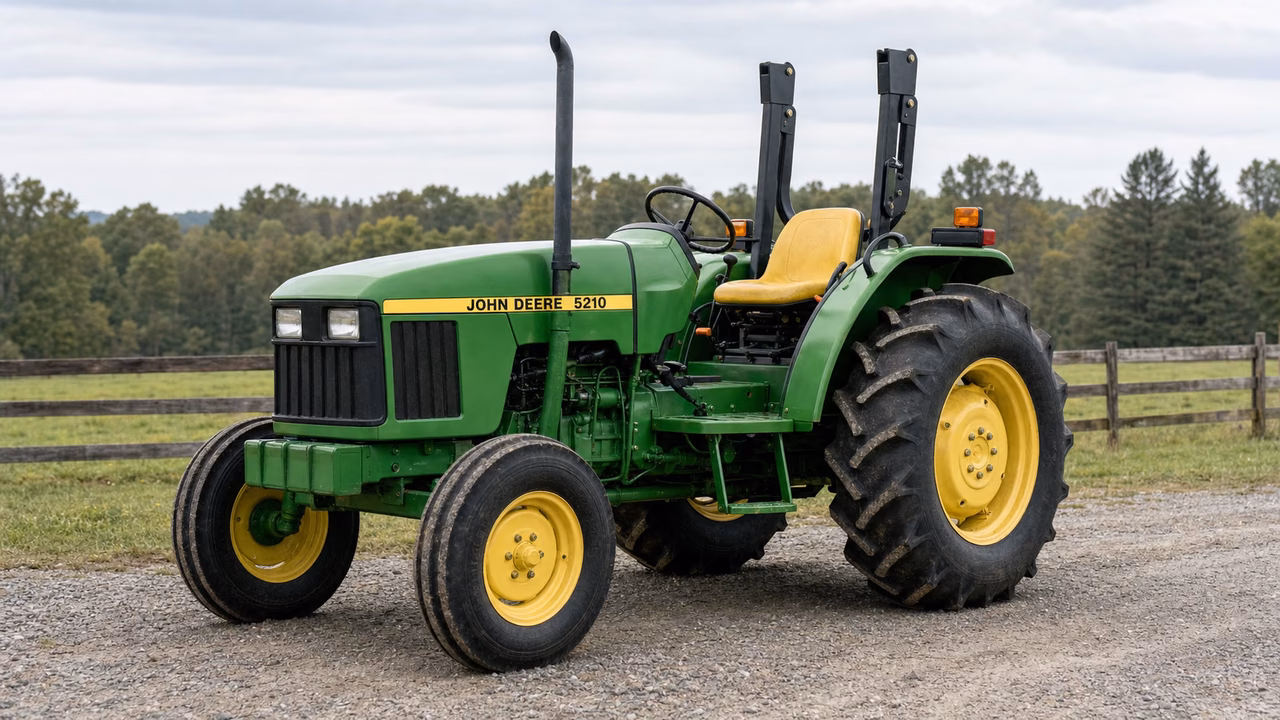

John Deere 5210 Overview
The John Deere 5210 was built from 1998 to 2001 with a 179 ci (2.9 L) engine rated at 53 hp (39.5 kW) and 2,400 rpm. It has an independent 540 rear PTO and a Type II/I hitch rated for 3,374 lb at 24 inches. The open center hydraulic system is listed with 2,855 psi pressure, 11.4 gpm pump flow, and 18.2 gpm total flow. Owner service figures include 9 qts engine oil and 10 qts coolant.
John Deere 5210 Quick Answers
- YearsJohn Deere built the 5210 from 1998 through 2001.
- EngineThe engine is 179 ci (2.9 L), rated at 53 hp (39.5 kW) and 2,400 rpm.
- PTOThe rear PTO is independent and listed at 540 rpm.
- Hitch liftThe Type II/I hitch is rated to lift 3,374 lb measured at 24 inches.
Engine and Power
Engine information includes 179 ci displacement, 53 hp (39.5 kW), and a 2,400 rpm rating.
Diesel engine
| Displacement | 179 ci 2.9 L |
|---|---|
| Rated Rpm | 2400 |
| Coolant Capacity | 10 qts 9.5 L |
Manufacture years
Engine
PTO and Hitch
The independent rear PTO is listed at 540, with a Type II/I hitch rated for 3,374 lb at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Hydraulic details show an open center system at 2,855 psi with 11.4 gpm pump flow and 18.2 gpm total flow.
Type
Pressure
Pump flow
Total flow
Fluids, Battery, and Service Facts
Service figures include 9 qts of engine oil and 10 qts of coolant for the documented engine configuration.
Engine oil capacity
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
