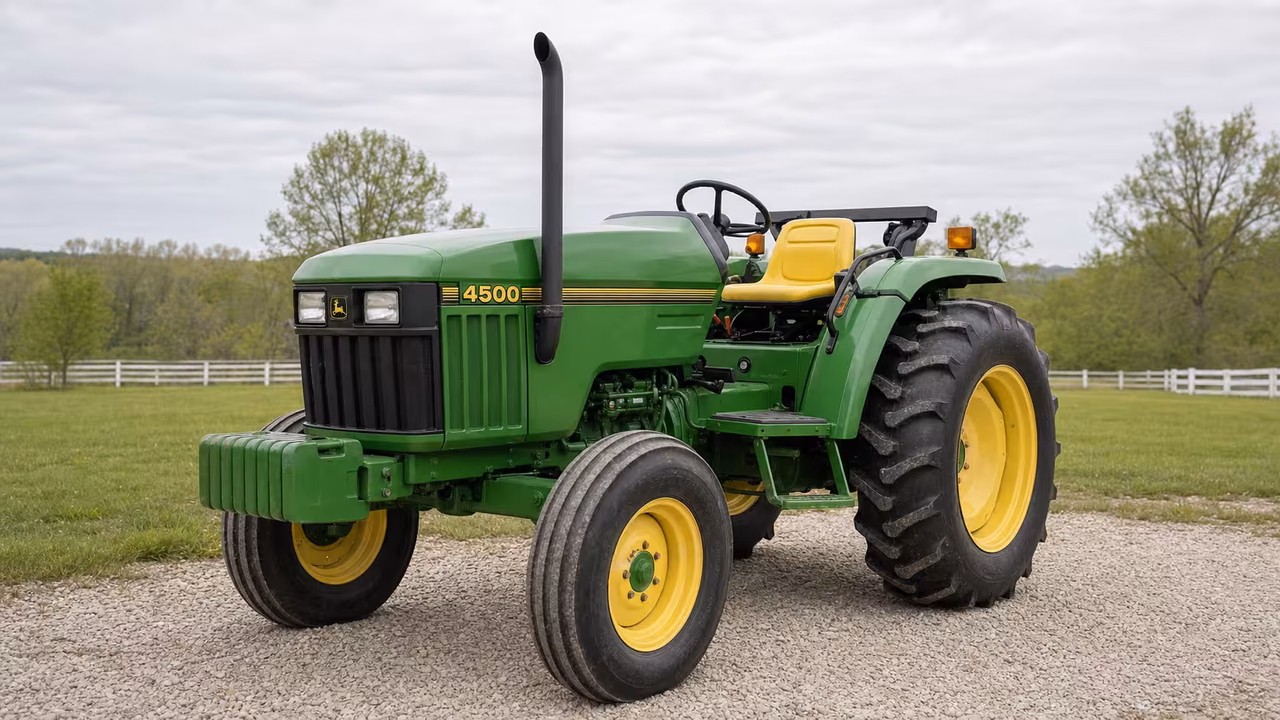

John Deere 4500 Overview
John Deere 4500 was built from 1998-2001. The published engine record lists a 121.7 ci 2.0 L engine with published gross and net ratings of 39 hp 29.1 kW and 37 hp 27.6 kW at 2600 rpm. Transmission details differ by configuration; the individual options are shown in the transmission section.
The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@2600 | 2100@2600 engine rpm for the published PTO setting. Hydraulic specifications list open center hydraulics, 9.9 gpm 37.5 lpm flow, and 2500 psi 172.4 bar pressure. The rear hitch is listed as a Category I rear hitch, 2500 lbs 1134 kg listed lift, and position control. Published capacities include 12.5 gal 47.3 L fuel capacity, 5.1 qts 4.8 L engine oil capacity, 7.2 qts 6.8 L coolant capacity, 6.8 gal 25.7 L hydraulic-system capacity, and 27.2 qts 25.7 L transmission-oil capacity. Published weight listings include 3450 lbs 1564 kg.
John Deere 4500 Quick Answers
- When was the John Deere 4500 built?John Deere 4500 is listed from 1998-2001. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a John Deere 4500?The published engine record lists a 121.7 ci 2.0 L engine with published gross and net ratings of 39 hp 29.1 kW and 37 hp 27.6 kW at 2600 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the John Deere 4500 use?Published records identify more than one transmission configuration. Compare the individual transmission options, the full ID tag, and the installed drivetrain before using repair or parts information.
- What PTO is listed for the John Deere 4500?The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@2600 | 2100@2600 engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list open center hydraulics, 9.9 gpm 37.5 lpm flow, and 2500 psi 172.4 bar pressure. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 12.5 gal 47.3 L fuel capacity, 5.1 qts 4.8 L engine oil capacity, 7.2 qts 6.8 L coolant capacity, 6.8 gal 25.7 L hydraulic-system capacity, and 27.2 qts 25.7 L transmission-oil capacity. The rear hitch is listed as a Category I rear hitch, 2500 lbs 1134 kg listed lift, and position control. Published weight listings include 3450 lbs 1564 kg.
Engine and Power
The published engine record lists a 121.7 ci 2.0 L engine with published gross and net ratings of 39 hp 29.1 kW and 37 hp 27.6 kW at 2600 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
| Displacement | 121.7 ci 2.0 L |
|---|---|
| Bore Stroke | 3.31x3.54 inches 84 x 90 mm |
| Fuel System | direct injection |
| Air Cleaner | dry |
| Pre Heating | air heater |
| Compression | 18:1 |
| Rated Rpm | 2600 |
| Torque | 92 lb-ft 124.8 Nm |
| Torque Rpm | 1700 |
| Starter Volts | 12 |
| Starter Power | 2.7 hp 2.0 kW |
| Coolant Capacity | 7.2 qts 6.8 L |
Manufacture years
Transmission
Published records identify more than one transmission configuration. Compare the individual options with the tractor's full ID tag and installed drivetrain before treating a repair or parts detail as a direct match.
Collar Shift
| Name | Collar Shift |
|---|---|
| Type | unsynchronized gear |
| Gears | 9 forward and 3 reverse |
| Clutch | dry disc |
| Transmission Oil Capacity | 27.2 qts 25.7 L |
PowrReverser
| Name | PowrReverser |
|---|---|
| Type | partially synhcronized power shuttle |
| Gears | 12 forward and reverse |
| Clutch | wet disc, two clutch packs with three 5-inch discs each |
| Transmission Oil Capacity | 27.2 qts 25.7 L |
PTO and Hitch
The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@2600 | 2100@2600 engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.
Rear PTO
Rear PTO type
Engine RPM
- 540@2600
- 2100@2600
Rear hitch
Rear lift at 24 inches
Hydraulics
Hydraulic specifications list open center hydraulics, 9.9 gpm 37.5 lpm flow, and 2500 psi 172.4 bar pressure. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Pressure
Pump flow
Total flow
Valves
Fluids, Battery, and Service Facts
Published capacities include 12.5 gal 47.3 L fuel capacity, 5.1 qts 4.8 L engine oil capacity, 7.2 qts 6.8 L coolant capacity, 6.8 gal 25.7 L hydraulic-system capacity, and 27.2 qts 25.7 L transmission-oil capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Engine oil capacity
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial rows are shown where documented.
1998
1999
2000
2001
Manuals and Documents
John Deere's official Manuals and Training service is the starting point for operator, technical, and parts-catalog publications. Search with the model and serial number before relying on a document.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Reference page
- John Deere Manuals and Trainingoperation, maintenance, and specifications
Official John Deere route for operator, technical, and parts-catalog publications. Search with the model and serial number.
Open John Deere manuals
Parts catalog
- John Deere Parts Catalogparts matching
Official John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.
Open parts catalog
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual John Deere 4500. Verify the tag and the actual tractor before ordering.
- John Deere Parts CatalogOfficial John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.Open parts catalog
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
