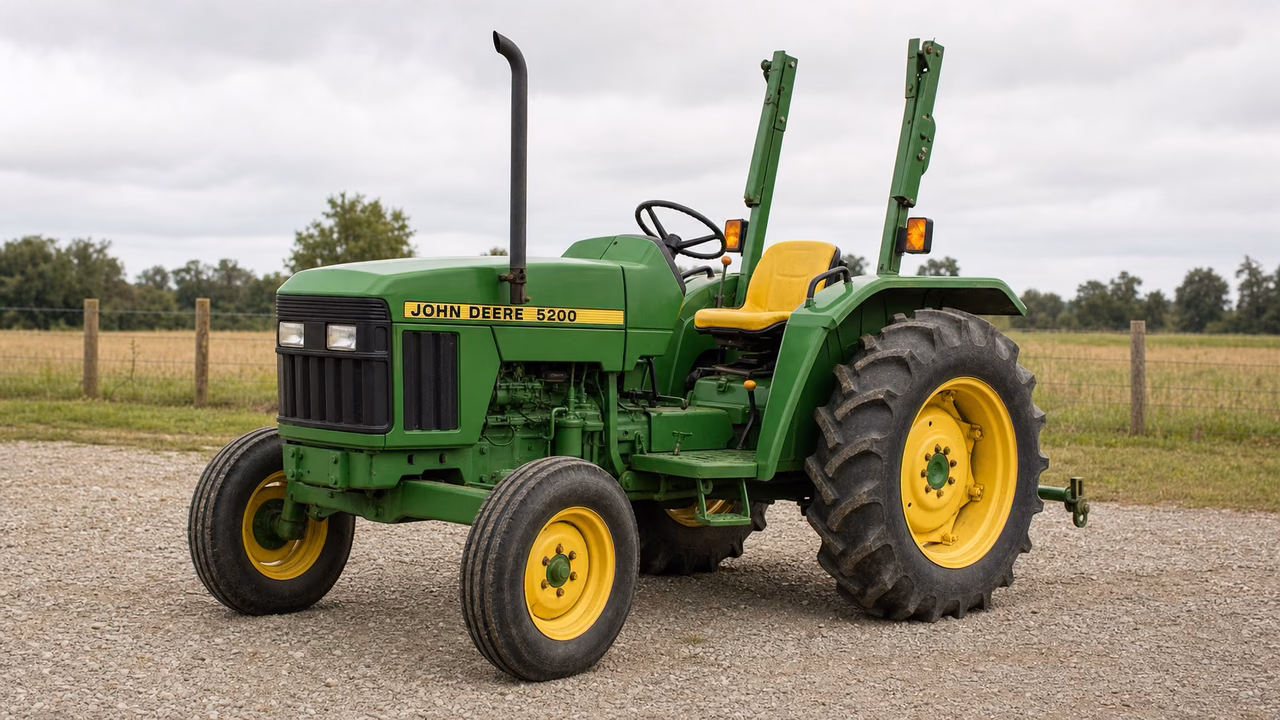

John Deere 5200 Overview
The John Deere 5200 was built from 1992 to 1997 with a 179 ci (2.9 L) engine rated at 45.6 hp (34.0 kW) and 2,400 rpm. Cab and ROPS versions are both documented, and their fuel capacities differ: 22 gal with the cab and 18 gal with ROPS. The tractor has independent 540 PTO, a Type II/I hitch with a 3,374 lb lift at 24 inches, and an open center hydraulic system listed at 18.2 gpm total flow.
John Deere 5200 Quick Answers
- YearsJohn Deere built the 5200 from 1992 through 1997.
- EngineIts 179 ci (2.9 L) engine is rated at 45.6 hp (34.0 kW) and 2,400 rpm.
- Fuel capacityFuel capacity is 22 gal with the cab and 18 gal with ROPS.
- HitchThe Type II/I hitch is rated to lift 3,374 lb measured at 24 inches.
Engine and Power
Engine rows list 179 ci displacement, 45.6 hp (34.0 kW), and a 2,400 rpm rating.
Diesel engine
| Displacement | 179 ci 2.9 L |
|---|---|
| Rated Rpm | 2400 |
| Engine Oil Capacity | 9 qts 8.5 L |
Manufacture years
PTO and Hitch
The independent rear PTO is listed at 540, with a Type II/I hitch rated for 3,374 lb at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
The open center hydraulic system is documented at 2,750 psi with 11.4 gpm pump flow and 18.2 gpm total flow.
Type
Pressure
Pump flow
Total flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
