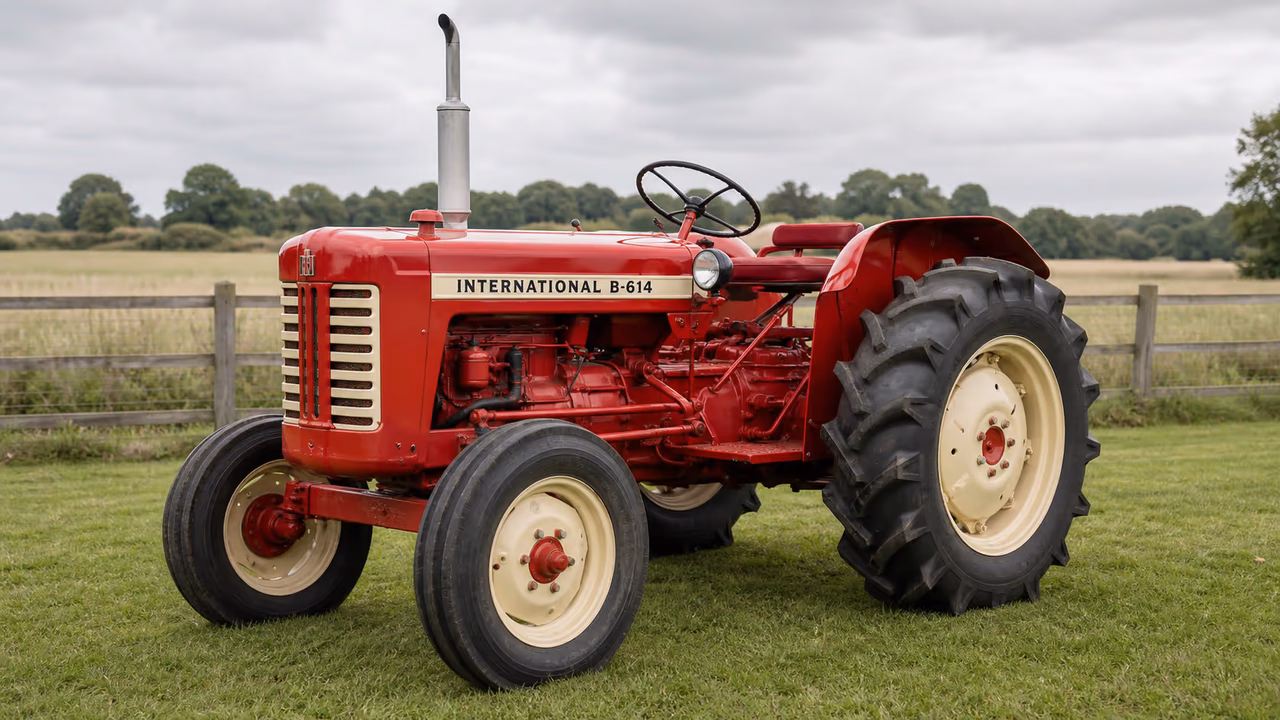

International Harvester B-614 Overview
The International Harvester B-614 was produced from 1963 through 1968. It has a 281 ci (4.6 L) diesel engine rated at 62.5 hp and 1600 rpm, backed by an 8-forward, 2-reverse gear transmission. The tractor uses a transmission-driven 540 PTO and a II rear hitch. Open-center hydraulics are rated at 2000 psi with 7.2 gpm pump flow. Fuel capacity is 20.4 gal, and listed weight is 6188 lbs.
International Harvester B-614 Quick Answers
- YearsProduced from 1963 through 1968.
- Engine281 ci (4.6 L) diesel rated at 62.5 hp and 1600 rpm.
- Transmission8 forward and 2 reverse gears.
- Rear PTOTransmission-driven 540 PTO with a 1.375 shaft.
Engine and Power
The 281 ci diesel engine is rated at 62.5 hp and 1600 rpm.
Diesel engine
| Displacement | 281 ci 4.6 L |
|---|---|
| Rated Rpm | 1600 |
Manufacture years
Engine
Transmission
The gear transmission provides 8 forward and 2 reverse gears.
8-speed gear
| Type | gear |
|---|---|
| Gears | 8 forward and 2 reverse |
PTO and Hitch
A transmission-driven 540 PTO works with the II rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Open-center hydraulics are rated at 2000 psi with 7.2 gpm pump flow.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Fuel capacity is 20.4 gal and hydraulic system capacity is 4.2 gal.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
