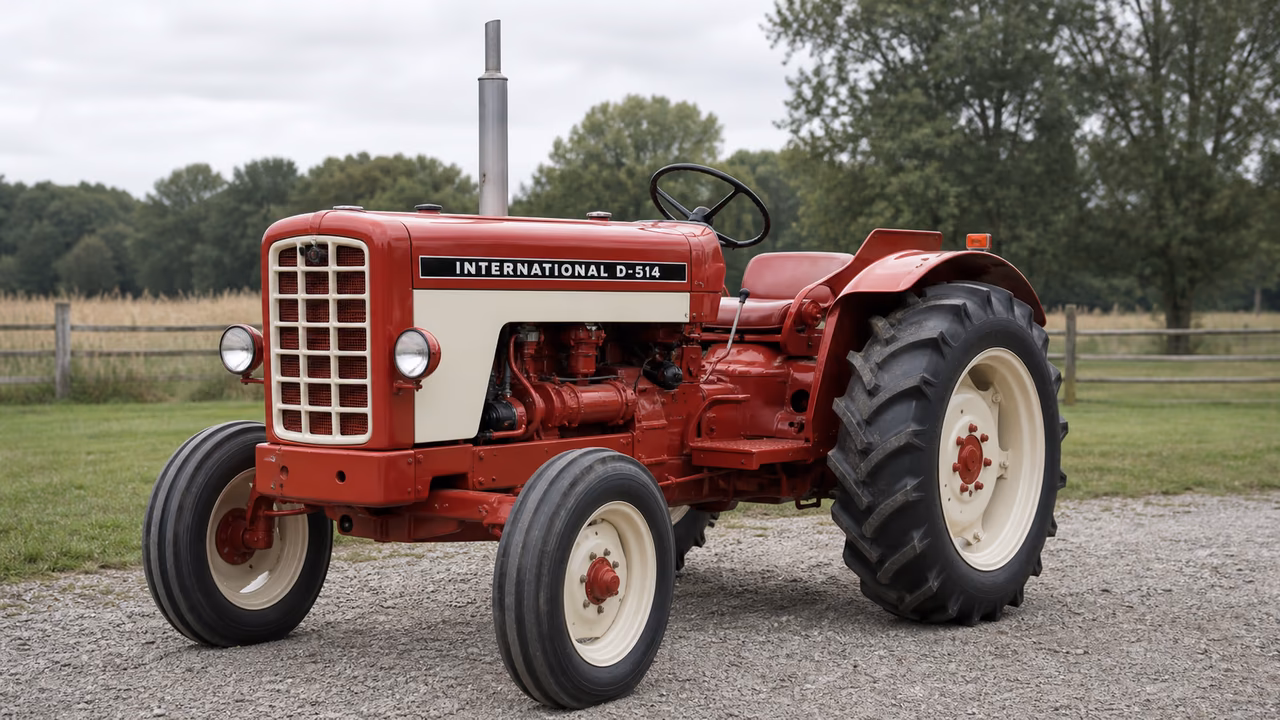

International Harvester D-514 Overview
The International Harvester D-514 was produced from 1963 through 1965. Its 188 ci (3.1 L) engine is listed at 53 hp and 2,100 rpm. The tractor uses the Torque Amplifier system, a 540 rear PTO, and a II/I rear hitch. Fuel capacity is 15.3 gal, engine oil capacity is 5 qts, and the transmission oil capacity is 51.75 qts. Listed weight is 5,556 pounds. It has a 12-volt electric starter, 7.50-16 front agricultural tires, and 13-30 rear agricultural tires.
International Harvester D-514 Quick Answers
- Production years1963-1965
- Engine188 ci (3.1 L), 53 engine hp at 2100 rpm
- Rear PTO540 (1.375)
- Fuel capacity15.3 gal (57.9 L)
Engine and Power
The 188 ci engine is listed at 53 hp and 2,100 rpm, with a 12-volt electric starter.
Diesel engine
| Displacement | 188 ci 3.1 L |
|---|---|
| Power | 53 hp 39.5 kW |
| Rated Rpm | 2100 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 5 qts 4.7 L |
| Coolant Capacity | 18 qts 17.0 L |
Manufacture years
Transmission
The D-514 is listed with the Torque Amplifier system.
5-speed gear
| Transmission Oil Capacity | 51.75 qts 49.0 L |
|---|
Torque Amplifier
| Name | Torque Amplifier |
|---|
PTO and Hitch
The rear PTO is listed as 540 (1.375), and the rear hitch is II/I.
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
Listed service capacities include 5 qts of engine oil, 18 qts of coolant, 15.3 gal of fuel, and 51.75 qts of transmission oil.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
