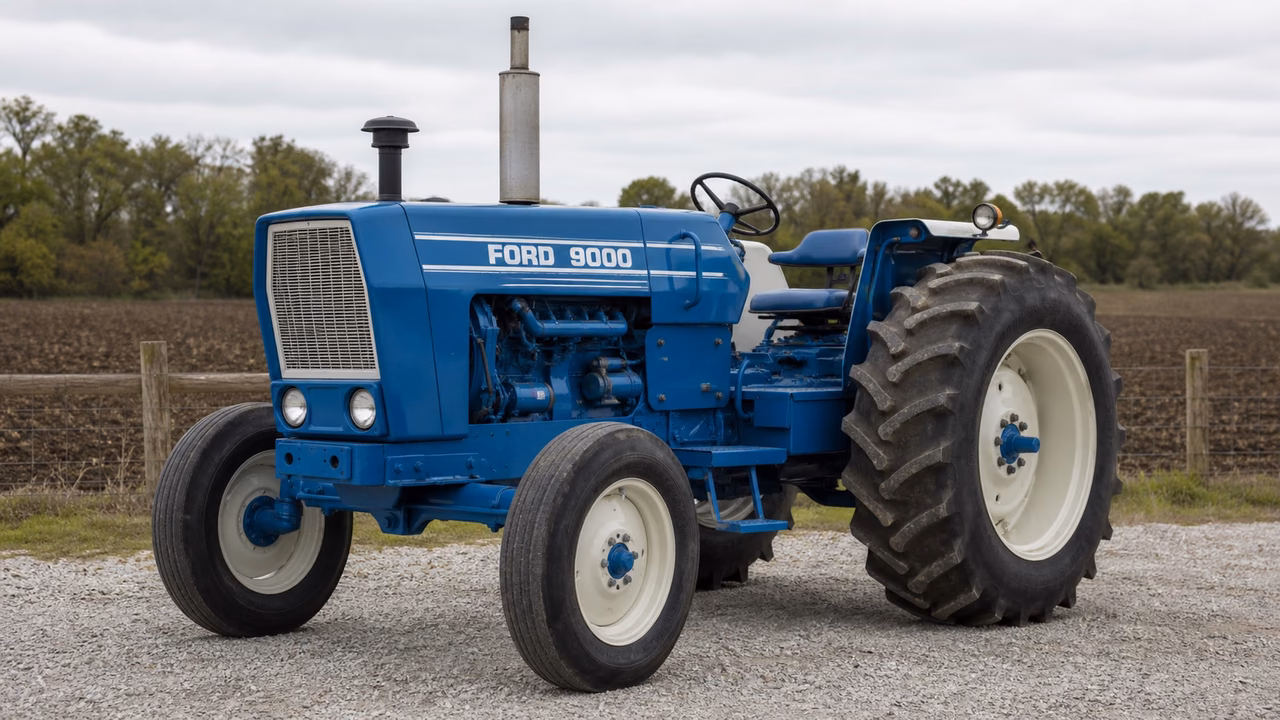

Ford 9000 Overview
The Ford 9000 was built from 1970 to 1972 around a 401 ci (6.6 L) engine rated at 145 hp (108.1 kW) and 2,200 rpm. Its documented equipment includes the Dual Power transmission, independent 1,000 rear PTO, and Type III/II rear hitch. The open center hydraulic system is listed at 2,500 psi with 16 gpm pump flow, while service figures cover 43 gal fuel, 14 qts engine oil, 16 gal hydraulics, and 24 qts coolant.
Ford 9000 Quick Answers
- YearsThe Ford 9000 was built from 1970 through 1972.
- EngineIts 401 ci (6.6 L) engine is rated at 145 hp (108.1 kW) and 2,200 rpm.
- TransmissionThe transmission is identified as Ford Dual Power.
- PTOThe rear PTO is independent and listed at 1,000 rpm.
Engine and Power
The engine section identifies the 401 ci displacement, 145 hp (108.1 kW) rating, and 2,200 rpm speed.
Diesel engine
| Displacement | 401 ci 6.6 L |
|---|---|
| Rated Rpm | 2200 |
| Coolant Capacity | 24 qts 22.7 L |
Manufacture years
Engine
Transmission
Ford identified the driveline as Dual Power; compare the configuration against the tractor's own equipment before service work.
Dual Power
| Name | Dual Power |
|---|
PTO and Hitch
The independent rear PTO is listed at 1,000, with a Type III/II rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Hydraulic details show an open center system with 2,500 psi pressure and 16 gpm pump flow.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Reference capacities include 43 gal of fuel, 14 qts of engine oil, 16 gal of hydraulic capacity, and 24 qts of coolant.
Fuel tank
Engine oil capacity
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
