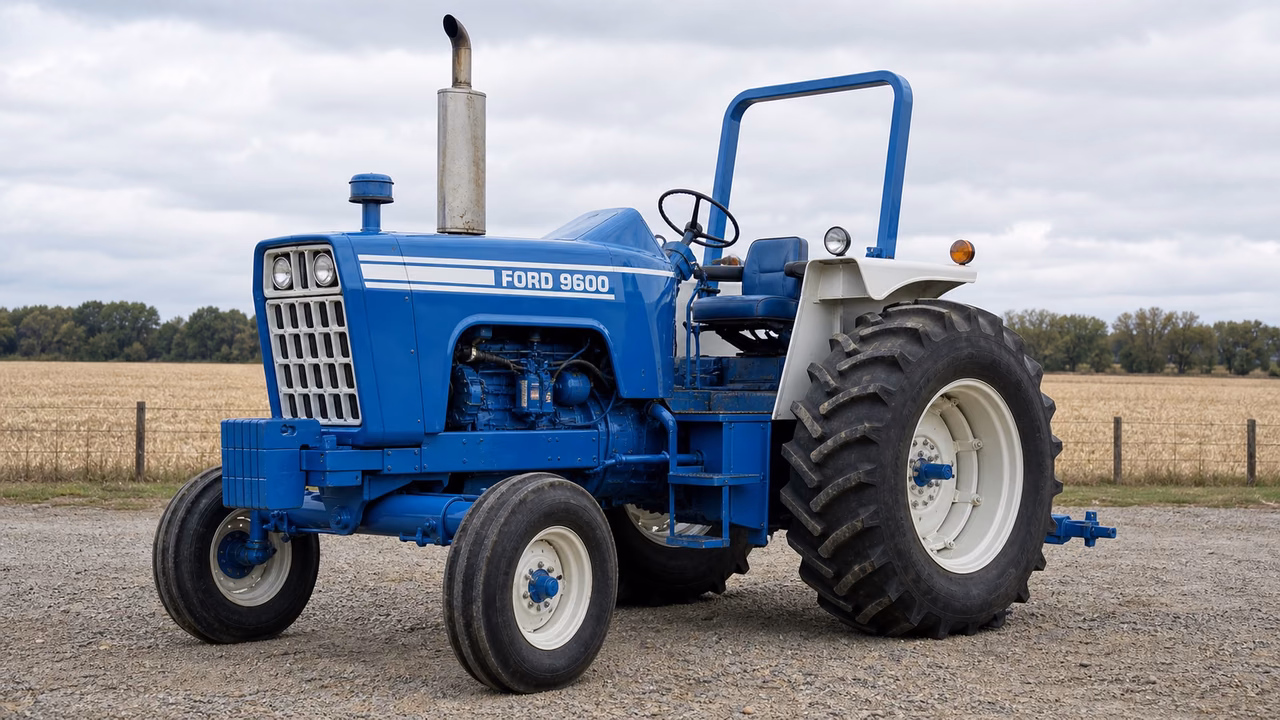

Ford 9600 Overview
The Ford 9600 was made from 1972 to 1976. It is documented with a 401 ci (6.6 L) engine running at 2,200 rpm, Ford Dual Power partial power-shift transmission, independent 1,000 rear PTO, and Type III/II hitch with an 18,000 lb lift figure. Hydraulic details list 2,500 psi and 16 gpm pump flow. Fuel capacity is 43 gal, with 14 qts engine oil, 16 gal hydraulic capacity, and 24 qts coolant.
Ford 9600 Quick Answers
- YearsFord produced the 9600 from 1972 through 1976.
- EngineThe engine is 401 ci (6.6 L) and is rated at 2,200 rpm.
- TransmissionFord identified the transmission as Dual Power partial power shift.
- HitchThe Type III/II rear hitch is listed with an 18,000 lb lift figure.
Engine and Power
Engine details include a 401 ci displacement and 2,200 rpm rating.
Diesel engine
| Displacement | 401 ci 6.6 L |
|---|---|
| Rated Rpm | 2200 |
| Coolant Capacity | 24 qts 22.7 L |
Manufacture years
Transmission
The transmission is identified as Ford Dual Power with partial power shift operation.
Ford Dual Power
| Name | Ford Dual Power |
|---|---|
| Type | partial power shift |
PTO and Hitch
The rear PTO is independent at 1,000, with a Type III/II hitch and an 18,000 lb lift figure.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Hydraulic data lists 2,500 psi pressure and 16 gpm pump flow.
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Service capacities include 43 gal of fuel, 14 qts of engine oil, 16 gal for hydraulics, and 24 qts of coolant.
Fuel tank
Engine oil capacity
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
