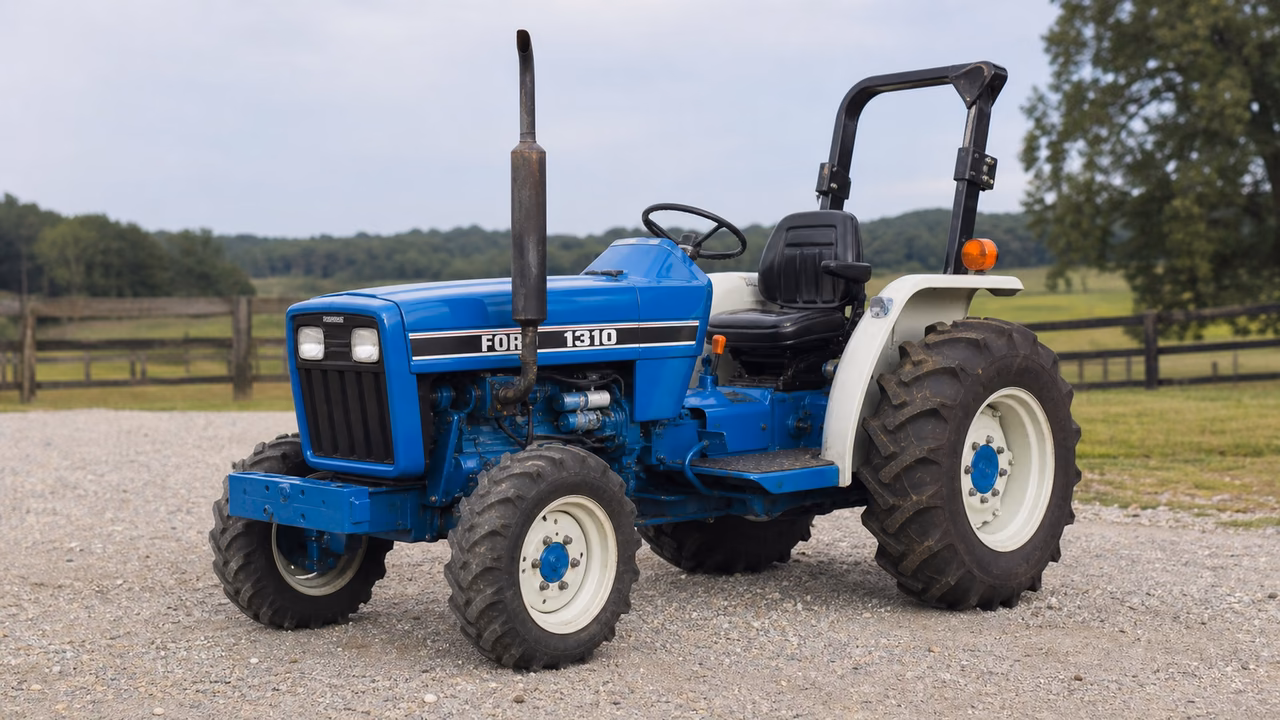

Ford 1310 Overview
The Ford 1310 was built from 1983-1986. Recorded details include engine displacement of 58.2 ci 1.0 L, gear count of 12 forward and 4 reverse, rear PTO speed of 540 (1.375), hydraulic system of open center, fuel capacity of 6.9 gal 26.1 L. Together, those figures give owners a practical starting point when comparing engine, driveline, PTO, hydraulic, capacity, and chassis details for this particular tractor. They also provide a useful reference for routine checks, repairs, service planning, and equipment matching.
Ford 1310 Quick Answers
- Production years1983-1986
- Engine displacement58.2 ci 1.0 L
- Transmission12 forward and 4 reverse
- Rear PTO540 (1.375)
Engine and Power
The listed engine details include engine displacement of 58.2 ci 1.0 L.
Diesel engine
| Displacement | 58.2 ci 1.0 L |
|---|---|
| Bore Stroke | 2.95x2.83 inches 75 x 72 mm |
| Rated Rpm | 2800 |
| Engine Oil Capacity | 4 qts 3.8 L |
Manufacture years
Transmission
The transmission record notes gear count of 12 forward and 4 reverse.
12-speed unsynchronized gear
| Gears | 12 forward and 4 reverse |
|---|---|
| Clutch | 216mm dry disc |
12-speed partially synchronized
| Gears | 12 forward and 4 reverse |
|---|
PTO and Hitch
PTO and hitch details include rear PTO speed of 540 (1.375).
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
The hydraulic record lists hydraulic system of open center.
Type
Pressure
Total flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
