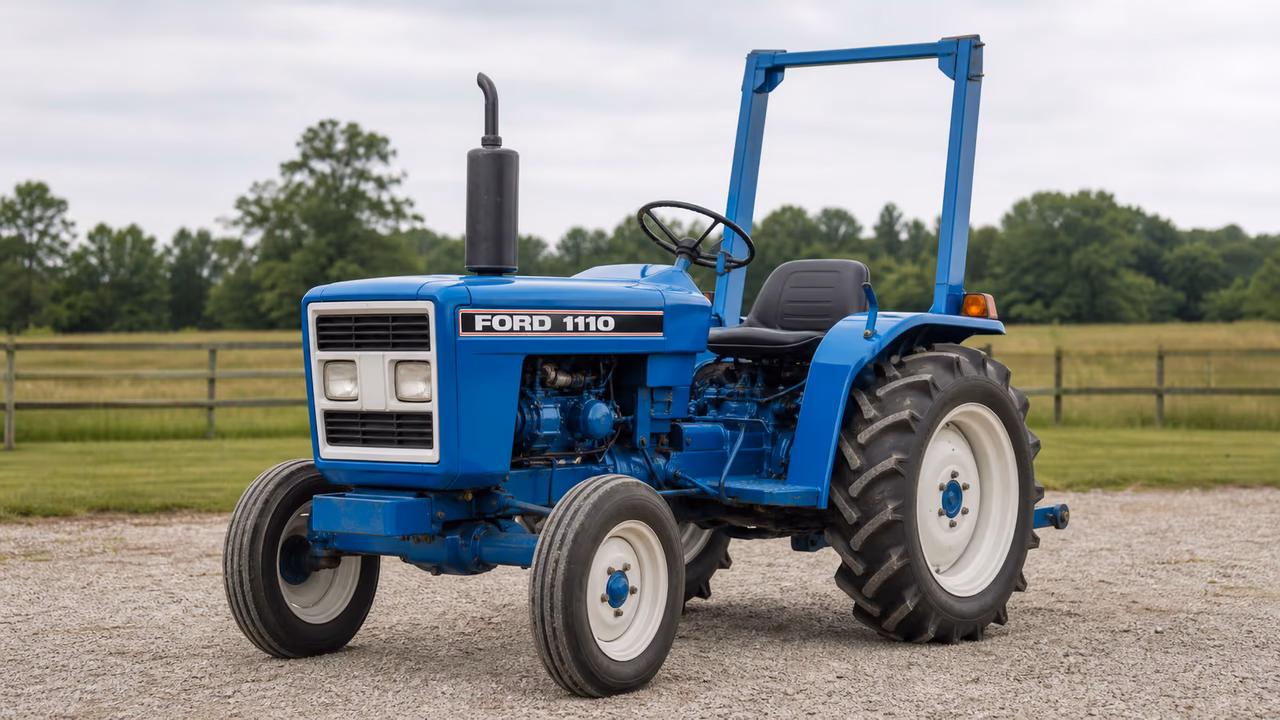

Ford 1110 Overview
The Ford 1110 was produced from 1983 through 1986. Its 43.1 ci (0.7 L) engine is listed at 13 net hp and 2700 rpm. The tractor uses a Category I rear hitch with 881-lb listed lift, plus an open-center hydraulic system rated at 1849 psi and 4.1 gpm total flow. Fuel capacity is 4.8 gal, and listed weight ranges from 1,283 to 1,396 pounds. The serial number is on the left side of the transmission housing.
Ford 1110 Quick Answers
- Production years1983-1986
- Engine43.1 ci (0.7 L), 13 net hp at 2700 rpm
- HydraulicsOpen center, 1849 psi and 4.1 gpm total flow
- Fuel capacity4.8 gal (18.2 L)
Engine and Power
The 43.1 ci engine is listed at 13 net hp and 2700 rpm, with glow plugs for pre-heating.
Diesel engine
| Displacement | 43.1 ci 0.7 L |
|---|---|
| Pre Heating | glow plugs |
| Rated Rpm | 2700 |
| Engine Oil Capacity | 3.5 qts 3.3 L |
Manufacture years
Hydraulics
The open-center hydraulic system is listed at 1849 psi with 4.1 gpm total flow.
Type
Capacity
Pressure
Total flow
Fluids, Battery, and Service Facts
Listed service capacities include 3.5 qts of engine oil, 4.8 gal of fuel, and 4.25 gal for the hydraulic system.
Fuel tank
Hydraulic system
Serial Number Lookup
The serial-number location is listed on the left side of the transmission housing.
location
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
