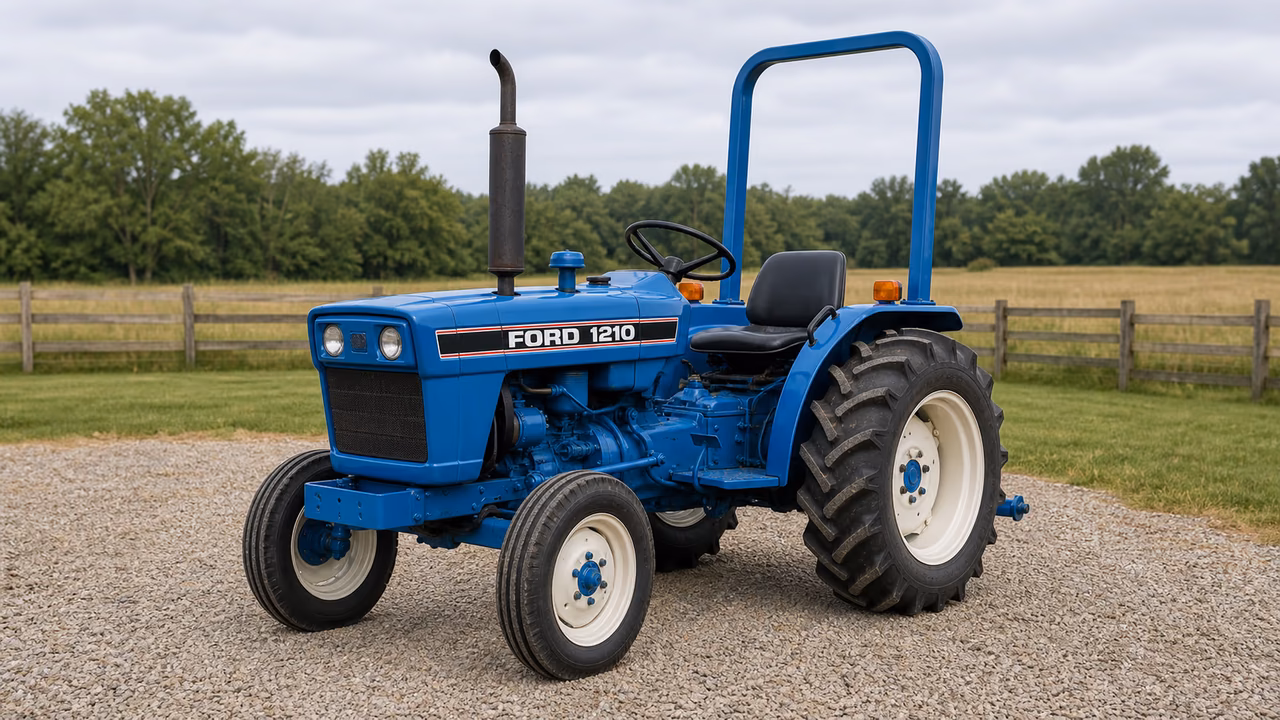

Ford 1210 Overview
The Ford 1210 was produced from 1983 through 1986. Its 53.6 ci (0.9 L) engine is listed at 16 net hp and 2,700 rpm. The tractor uses a Category I rear hitch with 881-lb lift at the ends, plus an open-center hydraulic system rated at 1,849 psi and 4.3 gpm total flow. The rear PTO is 540, with an optional front PTO. Fuel capacity is 4.8 gal, hydraulic capacity is 4.25 gal, and listed weight ranges from 1329 to 1442 pounds.
Ford 1210 Quick Answers
- Production years1983-1986
- Engine53.6 ci (0.9 L), 16 net hp at 2700 rpm
- HydraulicsOpen center, 1,849 psi and 4.3 gpm total flow
- Fuel capacity4.8 gal (18.2 L)
Engine and Power
The 53.6 ci engine is listed at 16 net hp and 2,700 rpm, with glow plugs for pre-heating.
Diesel engine
| Displacement | 53.6 ci 0.9 L |
|---|---|
| Pre Heating | glow plugs |
| Rated Rpm | 2700 |
| Engine Oil Capacity | 3.5 qts 3.3 L |
Manufacture years
PTO and Hitch
The rear PTO is 540 (1.375), with an optional front PTO and a Category I rear hitch.
Rear PTO type
Rear hitch
Hydraulics
The open-center hydraulic system is listed at 1,849 psi with 4.3 gpm total flow.
Type
Capacity
Pressure
Total flow
Fluids, Battery, and Service Facts
Listed service capacities include 3.5 qts of engine oil, 4.8 gal of fuel, and 4.25 gal for the hydraulic system.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
