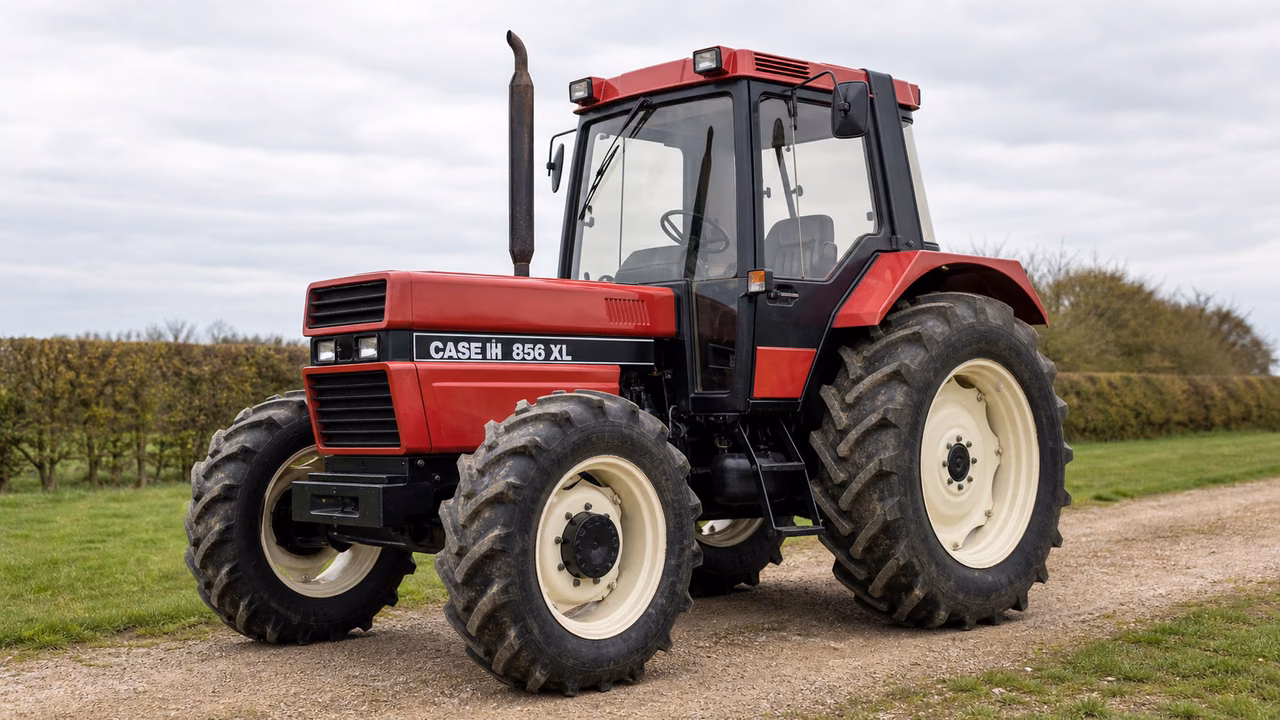

CaseIH 856 XL Overview
The CaseIH 856 XL was built from 1985-1987. Recorded details include engine displacement of 239 ci 3.9 L, transmission of IH-Total-synchron, rear PTO speed of 540/1000, hydraulic pump flow of 6.6 gpm 25.0 lpm, fuel capacity of 28 gal 106.0 L. Together, those figures give owners a practical starting point when comparing engine, driveline, PTO, hydraulic, capacity, and chassis details for this particular tractor. They also provide a useful reference for routine checks, repairs, service planning, and equipment matching.
CaseIH 856 XL Quick Answers
- Production years1985-1987
- Engine displacement239 ci 3.9 L
- TransmissionIH-Total-synchron
- Rear PTO540/1000
Engine and Power
The listed engine details include engine displacement of 239 ci 3.9 L.
Diesel engine
| Displacement | 239 ci 3.9 L |
|---|---|
| Bore Stroke | 3.87x5.06 inches 98 x 129 mm |
| Rated Rpm | 2300 |
| Engine Oil Capacity | 12.7 qts 12.0 L |
| Coolant Capacity | 22.2 qts 21.0 L |
Manufacture years
Transmission
The transmission record notes transmission of IH-Total-synchron.
IH-Total-synchron
| Name | IH-Total-synchron |
|---|
PTO and Hitch
PTO and hitch details include rear PTO speed of 540/1000.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
The hydraulic record lists hydraulic pump flow of 6.6 gpm 25.0 lpm.
Pressure
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
