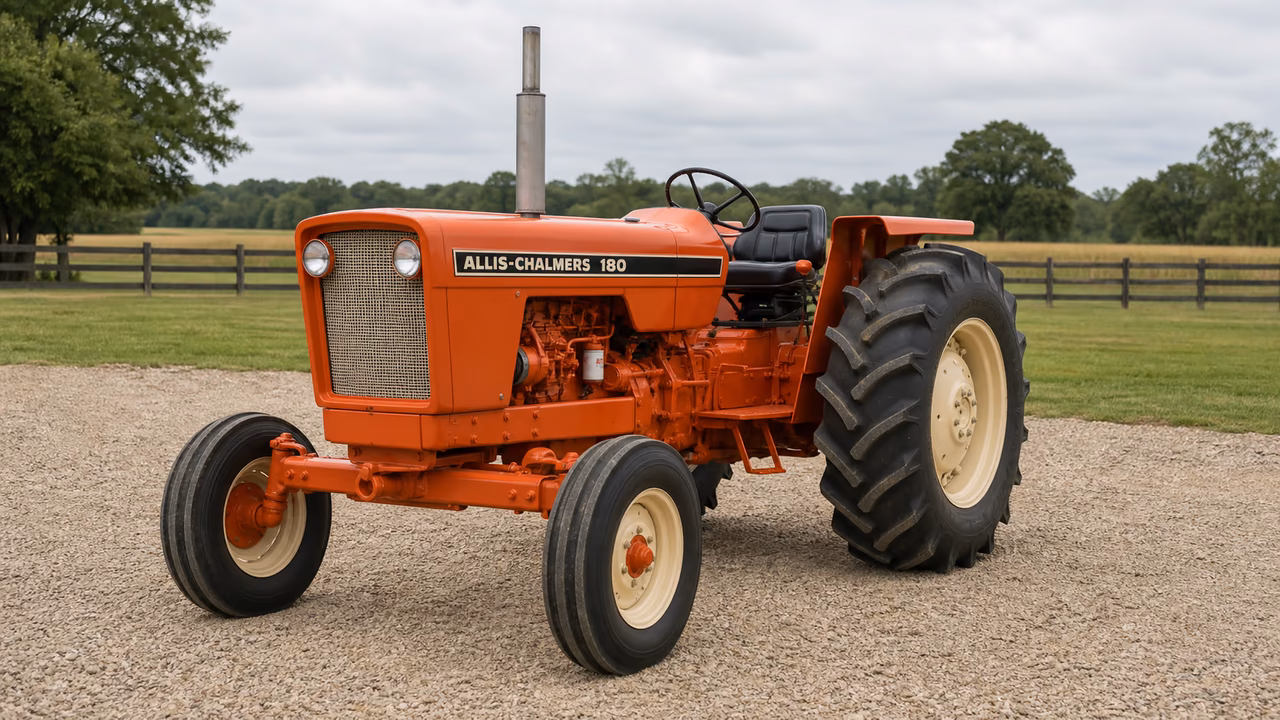

Allis Chalmers 180 Overview
The Allis Chalmers 180 was produced from 1967 through 1973. It has an eight-forward, two-reverse Power Director transmission listed as a partial powershift, plus a transmission-driven 540 PTO and Category II rear hitch. The hydraulic system is open center, with 10 gpm pump flow and 5.8 gpm steering flow. Diesel fuel capacity is 24.6 gal, hydraulic capacity is 9 gal, and listed operating weight ranges from 6420 to 6510 pounds. The serial number is located at the front of the torque housing.
Allis Chalmers 180 Quick Answers
- Production years1967-1973
- TransmissionPower Director partial powershift, 8 forward and 2 reverse
- Rear PTOTransmission-driven 540 PTO
- Diesel fuel capacity24.6 gal (93.1 L)
Transmission
The Power Director transmission is listed as a partial powershift with 8 forward and 2 reverse gears.
Power Director
| Name | Power Director |
|---|---|
| Type | partial powershift |
| Gears | 8 forward and 2 reverse |
| Transmission Oil Capacity | 24 qts 22.7 L |
PTO and Hitch
The rear PTO is transmission driven at 540, and the rear hitch is Category II.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
The open-center hydraulic system is listed with 10 gpm pump flow and 5.8 gpm steering flow.
Type
Capacity
Pump flow
Fluids, Battery, and Service Facts
Listed capacities include 24.6 gal of diesel fuel, 9 gal for hydraulics, and 24 qts of transmission oil.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
