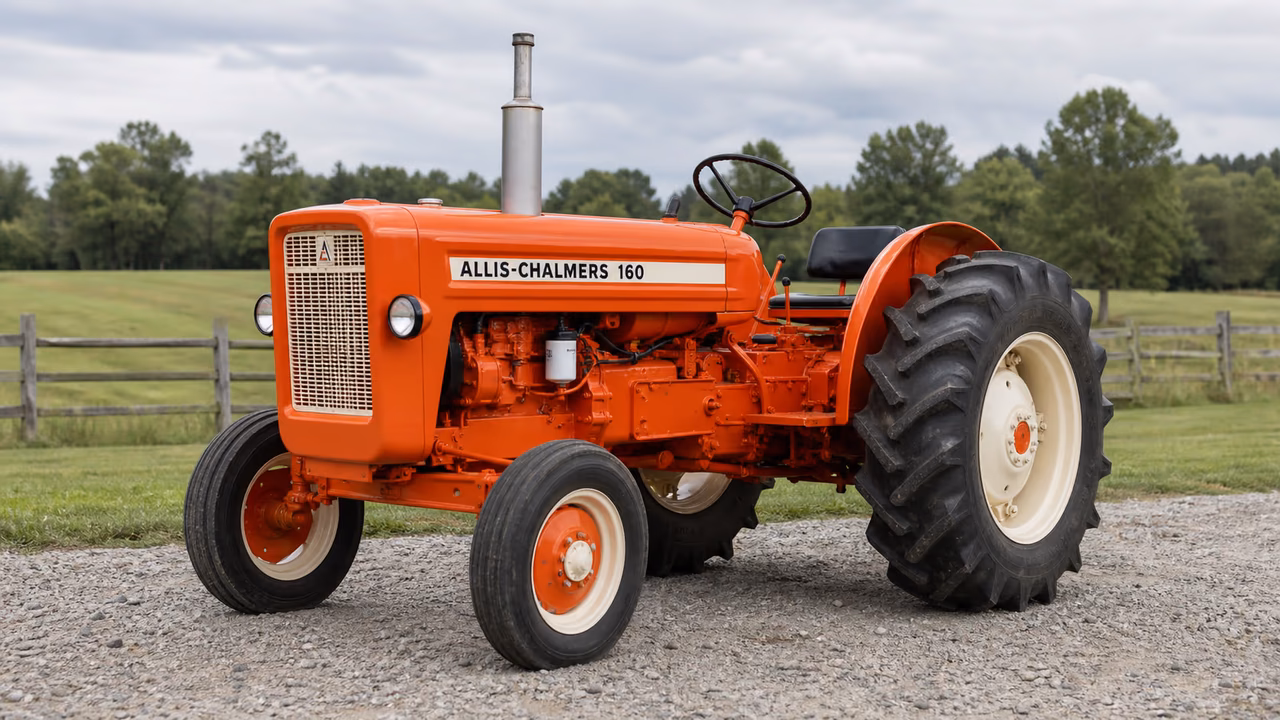

Allis Chalmers 160 Overview
Built from 1969 through 1973, the Allis Chalmers 160 pairs a 152.7 ci (2.5 L) engine rated at 40 hp with a live 540 PTO. Its Category II rear hitch and 6.7-gpm hydraulic pump are useful working references, while the 13.5-gallon fuel tank and listed 4,250-to-4,680-pound weight range help distinguish the model. The serial-number plate is on the right-side panel between the engine and fuel tank.
Allis Chalmers 160 Quick Answers
- Production years1969-1973
- Engine152.7 ci (2.5 L) engine, 40 hp at 2250 rpm
- Rear PTOLive 540 PTO
- Fuel capacity13.5 gal (51.1 L)
Engine and Power
The 160 uses a 152.7 ci engine rated at 40 hp and 2250 rpm, with a paper-element air cleaner.
Diesel engine
| Displacement | 152.7 ci 2.5 L |
|---|---|
| Air Cleaner | paper element |
| Rated Rpm | 2250 |
| Engine Oil Capacity | 6.5 qts 6.2 L |
Manufacture years
Engine
PTO and Hitch
The rear PTO is live and listed as 540 (1.375), with the PTO speed reached at 2160 engine rpm.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Hydraulic references include a 6.7-gpm pump flow and 2300-psi system pressure.
Pressure
Pump flow
Fluids, Battery, and Service Facts
Listed service capacities include 6.5 qts of engine oil and 13.5 gal of fuel.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
