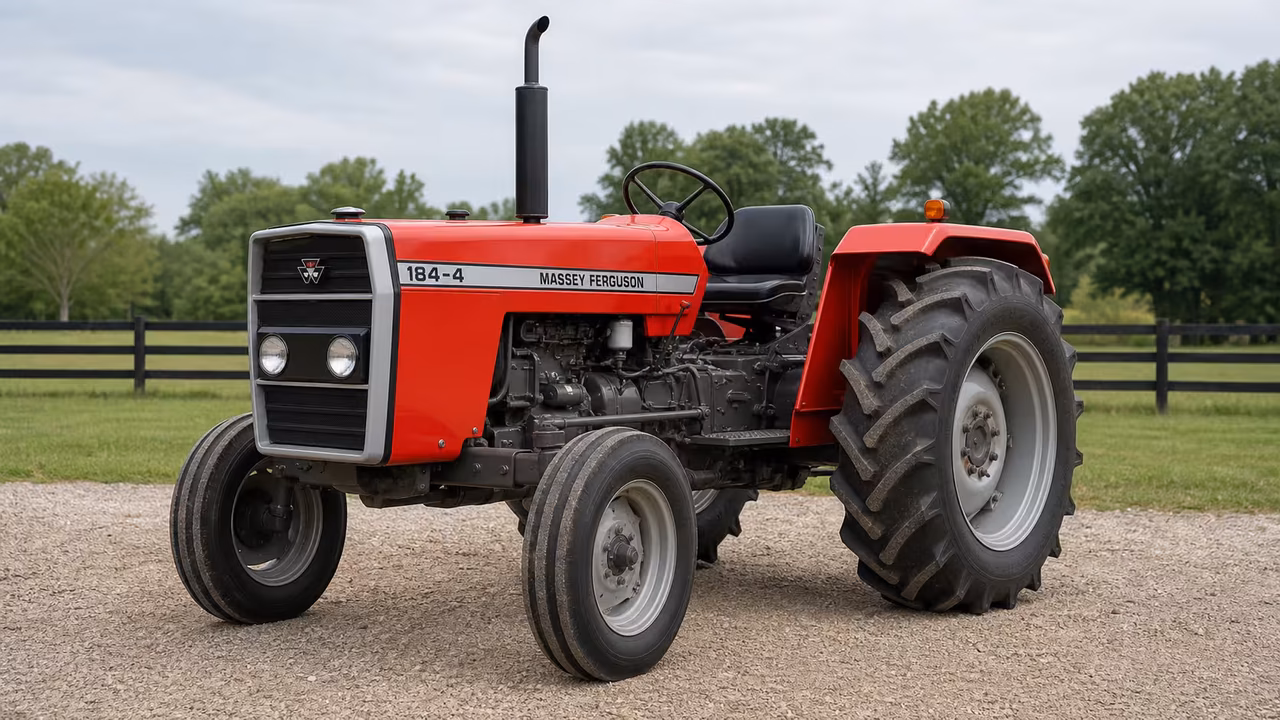

Massey Ferguson 184-4 Overview
Massey Ferguson 184-4 was built from 1976-1981. The published engine record lists a 236 ci 3.9 L engine with a published 68 hp 50.7 kW rating at 2200 rpm. The published drivetrain is listed as partially synchronized transmission and 12 forward and 4 reverse gears.
The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@1944 engine rpm for the published PTO setting. Hydraulic specifications list open center hydraulics, 28.1 gpm 106.4 lpm flow, and 2418 psi 166.7 bar pressure. The rear hitch is listed as a Category II rear hitch, 5842 lbs 2649 kg listed lift, and position and draft control. Published capacities include 16 gal 60.6 L fuel capacity, 7.5 qts 7.1 L engine oil capacity, 15.9 qts 15.0 L coolant capacity, 5.6 gal 21.2 L hydraulic-system capacity, and 22.2 qts 21.0 L transmission-oil capacity. Published weight listings include 6380 lbs 2893 kg.
Massey Ferguson 184-4 Quick Answers
- When was the Massey Ferguson 184-4 built?Massey Ferguson 184-4 is listed from 1976-1981. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a Massey Ferguson 184-4?The published engine record lists a 236 ci 3.9 L engine with a published 68 hp 50.7 kW rating at 2200 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the Massey Ferguson 184-4 use?The published drivetrain is listed as partially synchronized transmission and 12 forward and 4 reverse gears. Identify the installed transmission and serial number before using repair or parts information.
- What PTO is listed for the Massey Ferguson 184-4?The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@1944 engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list open center hydraulics, 28.1 gpm 106.4 lpm flow, and 2418 psi 166.7 bar pressure. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 16 gal 60.6 L fuel capacity, 7.5 qts 7.1 L engine oil capacity, 15.9 qts 15.0 L coolant capacity, 5.6 gal 21.2 L hydraulic-system capacity, and 22.2 qts 21.0 L transmission-oil capacity. The rear hitch is listed as a Category II rear hitch, 5842 lbs 2649 kg listed lift, and position and draft control. Published weight listings include 6380 lbs 2893 kg.
Engine and Power
The published engine record lists a 236 ci 3.9 L engine with a published 68 hp 50.7 kW rating at 2200 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
Perkins A4.236 / diesel / 4-cylinder / liquid-cooled
| Displacement | 236 ci 3.9 L |
|---|---|
| Bore Stroke | 3.875x5.00 inches 98 x 127 mm |
| Power | 68 hp 50.7 kW |
| Fuel System | direct injection |
| Air Cleaner | oil bath |
| Compression | 16:1 |
| Rated Rpm | 2200 |
| Idle Rpm | 650-2390 |
| Torque | 185.1 lb-ft 251.0 Nm |
| Torque Rpm | 1300 |
| Firing Order | 1-3-4-2 |
| Starter | electric |
| Starter Volts | 12 |
| Engine Oil Capacity | 7.5 qts 7.1 L |
| Coolant Capacity | 15.9 qts 15.0 L |
Manufacture years
Transmission
The published drivetrain is listed as partially synchronized transmission and 12 forward and 4 reverse gears. Match the installed transmission and serial number before treating a repair or parts detail as a direct match.
12-speed partially synchronized
| Type | partially synchronized |
|---|---|
| Gears | 12 forward and 4 reverse |
| Clutch | 279.4mm dry disc |
| Transmission Oil Capacity | 22.2 qts 21.0 L |
PTO and Hitch
The rear PTO is listed as independent rear PTO, 540 (1.375) PTO, and 540@1944 engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Hydraulic specifications list open center hydraulics, 28.1 gpm 106.4 lpm flow, and 2418 psi 166.7 bar pressure. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Pressure
Total flow
Valves
Fluids, Battery, and Service Facts
Published capacities include 16 gal 60.6 L fuel capacity, 7.5 qts 7.1 L engine oil capacity, 15.9 qts 15.0 L coolant capacity, 5.6 gal 21.2 L hydraulic-system capacity, and 22.2 qts 21.0 L transmission-oil capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Battery volts
Battery Ah
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Battery volts
Manuals and Documents
AGCO Parts Books is a useful official starting point for catalog families and assemblies. Use the model, serial number, and installed equipment before relying on a diagram or parts number.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Parts catalog
- AGCO Parts Booksparts matching
Official AGCO parts-catalog portal. Search with the model and serial number before treating a diagram or number as a direct match.
Open AGCO Parts Books
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual Massey Ferguson 184-4. Verify the tag and the actual tractor before ordering.
- Legacy Ford parts supportOfficial New Holland route for legacy Ford tractors. Match the model, serial number, and installed equipment before ordering.Open Ford parts support
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
