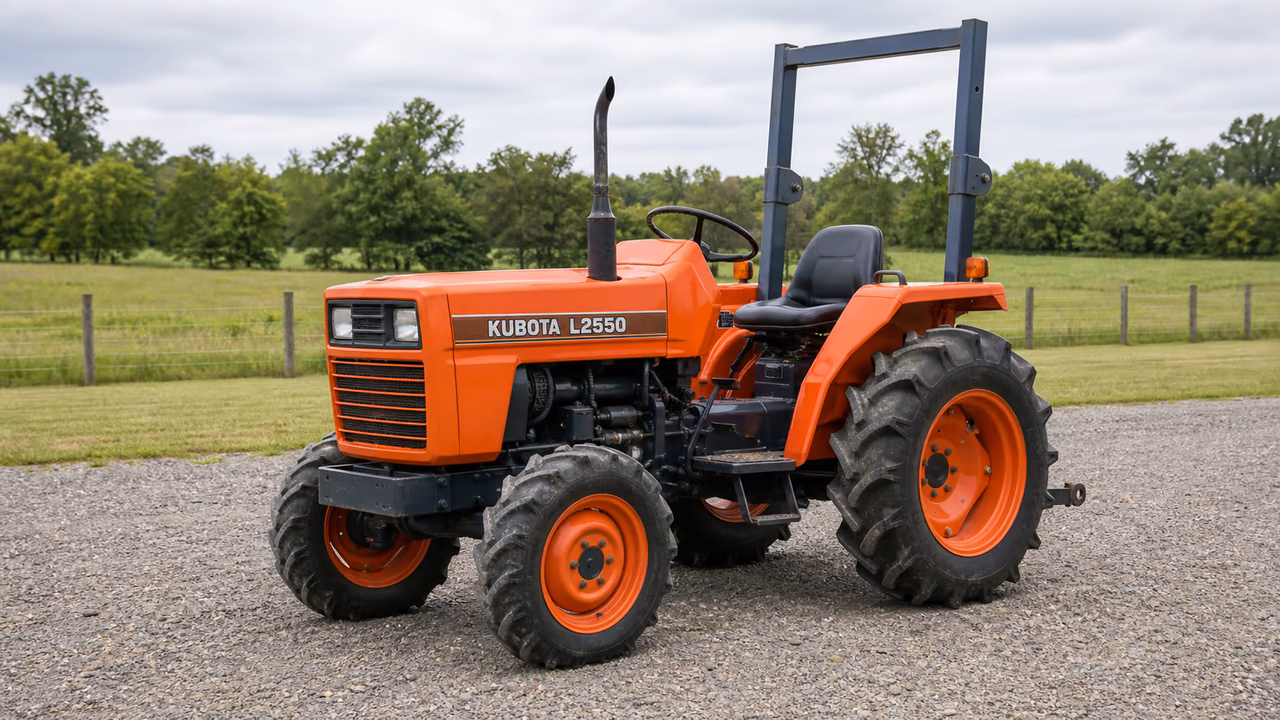

Kubota L2550 Overview
The Kubota L2550 was produced from 1985 through 1992. Its 85.1 ci (1.4 L) engine is listed at 29.5 gross hp and 2,600 rpm. The tractor has a Category I rear hitch listed at 1,980 lb lift at 24 inches, open-center hydraulics with 2,275 psi pressure and 6.7 gpm pump flow, plus a continuous 540/1000 rear PTO. Fuel capacity is 7.7 gal, hydraulic capacity is 8.2 gal, and listed weight ranges from 2250 to 2575 pounds. The serial number is on the left side of the clutch housing.
Kubota L2550 Quick Answers
- Production years1985-1992
- Engine85.1 ci (1.4 L), 29.5 gross engine hp at 2600 rpm
- Rear PTOContinuous 540/1000 (1.375)
- Fuel capacity7.7 gal (29.1 L)
Engine and Power
The 85.1 ci engine is listed at 29.5 gross hp and 2,600 rpm, with a paper-element air cleaner.
Diesel engine
| Displacement | 85.1 ci 1.4 L |
|---|---|
| Air Cleaner | paper element |
| Rated Rpm | 2600 |
| Engine Oil Capacity | 6.0 qts 5.7 L |
| Coolant Capacity | 5.3 qts 5.0 L |
Manufacture years
PTO and Hitch
The continuous rear PTO is listed as 540/1000 (1.375), with a Category I rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
The open-center hydraulic system is listed at 2,275 psi with 6.7 gpm pump flow.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Listed service capacities include 6.0 qts of engine oil, 5.3 qts of coolant, 7.7 gal of fuel, and 8.2 gal for hydraulics.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
