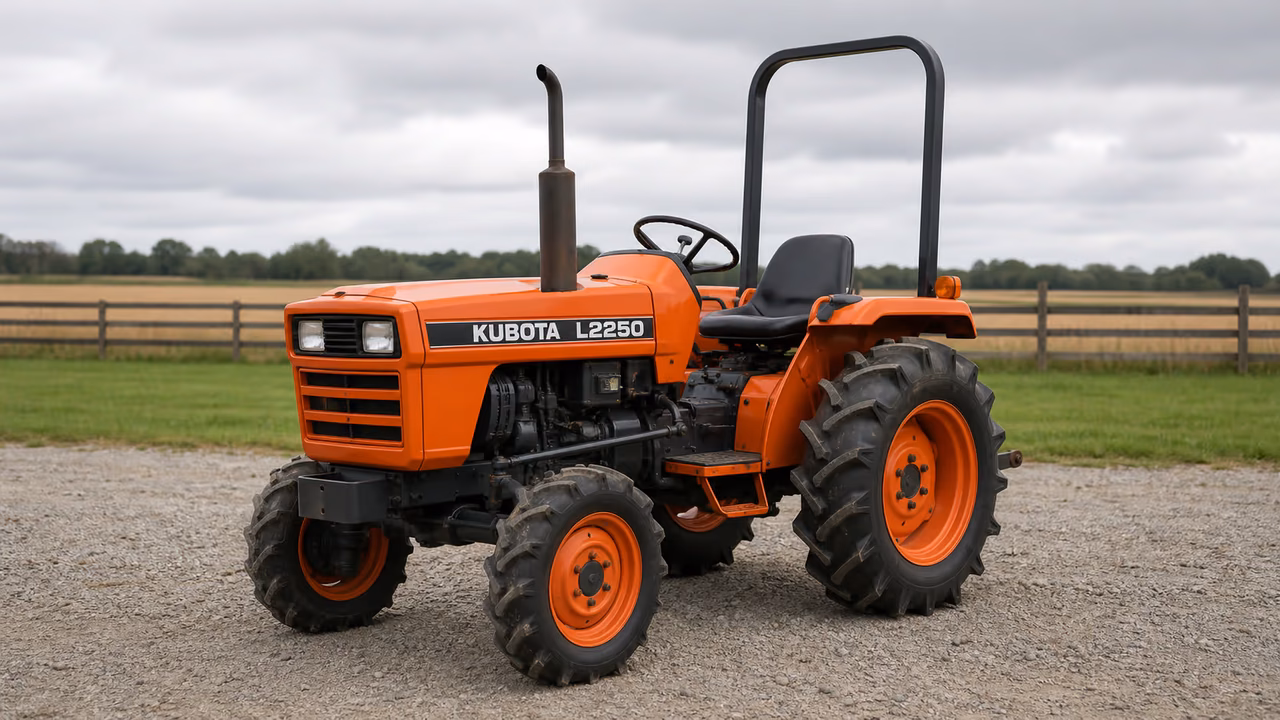

Kubota L2250 Overview
Built from 1985 through 1992, the Kubota L2250 uses a 79.3 ci (1.3 L) diesel engine rated at 26.5 gross hp and 2600 rpm. It has an 8-forward, 7-reverse mechanical-shuttle transmission, continuous 540/1000 PTO, and a I rear hitch with 1435 lb lift at 24 inches. Open-center hydraulics are rated at 2275 psi and 6.7 gpm. Fuel capacity is 7.7 gal, with listed weight from 2170 to 2425 pounds.
Kubota L2250 Quick Answers
- YearsProduced from 1985 through 1992.
- Engine79.3 ci (1.3 L) diesel rated at 26.5 gross hp and 2600 rpm.
- Transmission8 forward and 7 reverse mechanical-shuttle transmission.
- Hitch lift1435 lb at 24 inches on the I rear hitch.
Engine and Power
The 79.3 ci diesel engine is rated at 2600 rpm.
Diesel engine
| Displacement | 79.3 ci 1.3 L |
|---|---|
| Rated Rpm | 2600 |
Manufacture years
Transmission
The mechanical-shuttle transmission provides 8 forward and 7 reverse gears.
8-speed mechanical shuttle
| Type | mechanical shuttle |
|---|---|
| Gears | 8 forward and 7 reverse |
8-speed partially synchronized
| Type | partially synchronized |
|---|---|
| Gears | 8 forward and 7 reverse |
PTO and Hitch
The continuous 540/1000 PTO works with the I rear hitch and its 1435 lb lift at 24 inches.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Open-center hydraulics are rated at 2275 psi with 6.7 gpm pump flow.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Fuel capacity is 7.7 gal and hydraulic system capacity is 8.2 gal.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
